Description

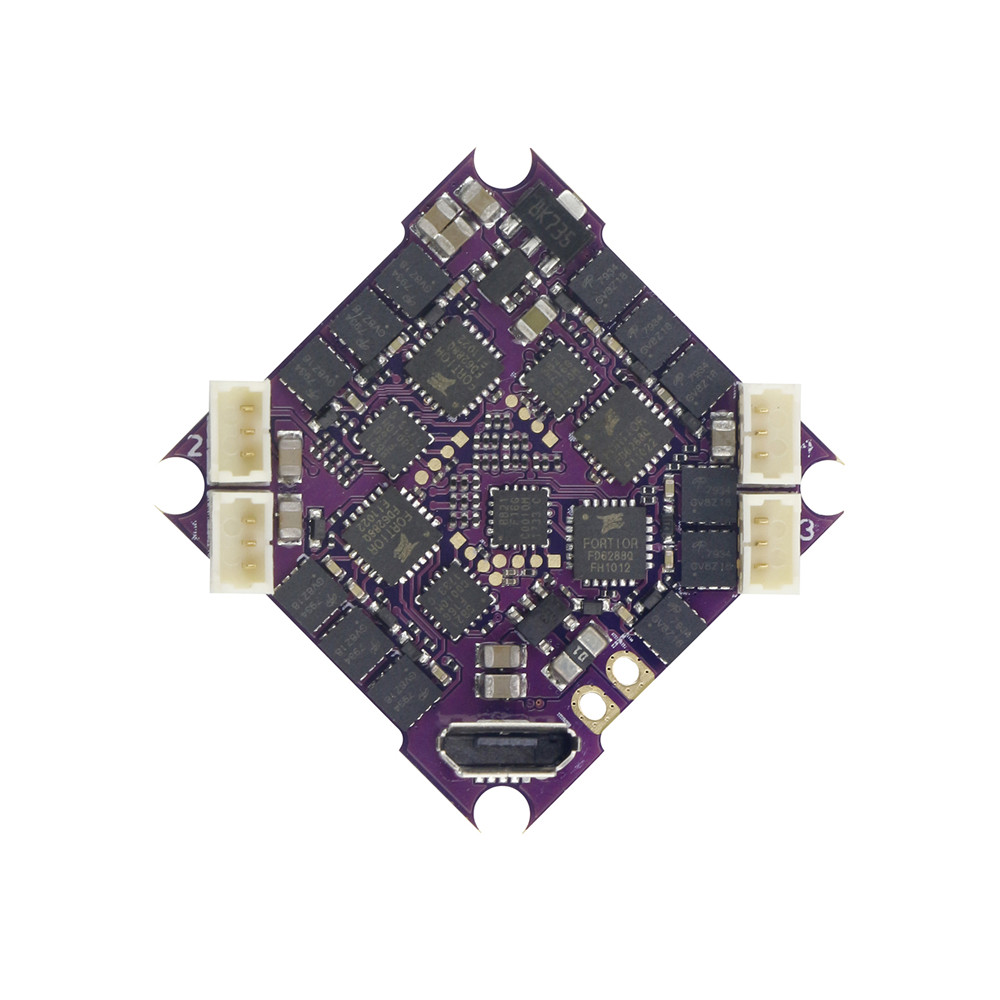

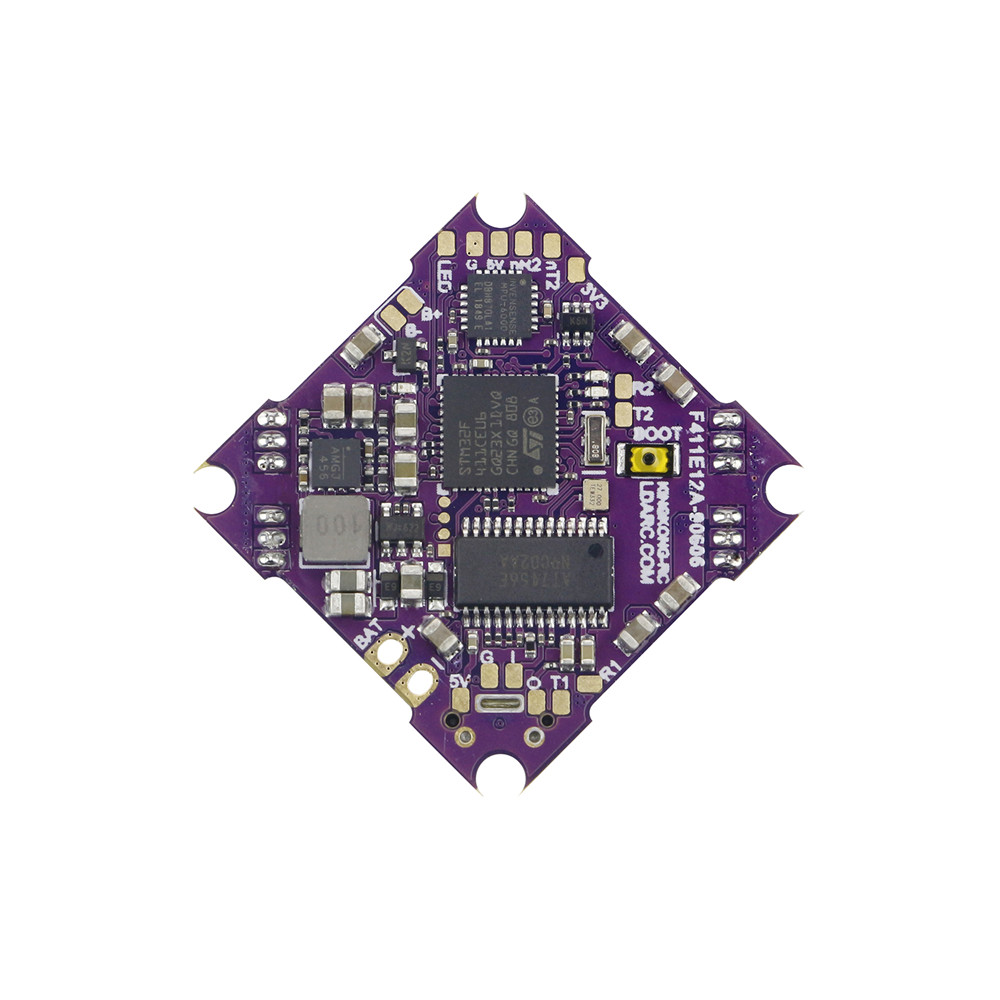

LDARC F411E12A F4 Flight Controller AIO OSD BEC & Built-in 12A BL_S 2-4S 4in1 ESC
Notice: ONLY Include flight controller. DO NOT included VTX Module.
Cilick here to buy VTX Module together.
Specification:
Brand Name: LDARC
Model: F411E12A
Item Name: F4 OSD Flight Controller AIO BEC Current Sensor & 12A 4in1 ESC
MCU: STM32F411
Gyroscope: MPU6000
OSD: AT7456E
BEC: 5V@1.5A, max. 3A
Firmware: MATEKF411
Current Scale Value: 210
ESC: 4in1 12A BLheli_S C-H-30
ESC Max Current 12A Each Way
Input Voltage: 2-4S
LED Pad: Yes
Buzzer Pad: Yes
Application: compatible with LDARC ET75 / ET85/ AK103/ AK123, Beta85X, Mobula7 etc. whoop fpv racing drone.
Package Included:
1x LDARC F411E12A F4 FC AIO 12A ESC
1x Cable
8x Anti-Vibration Standoffs
3x Screws
