Description

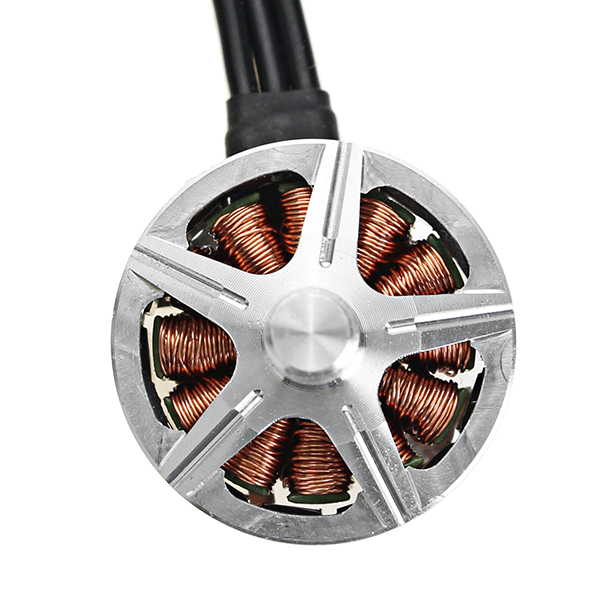

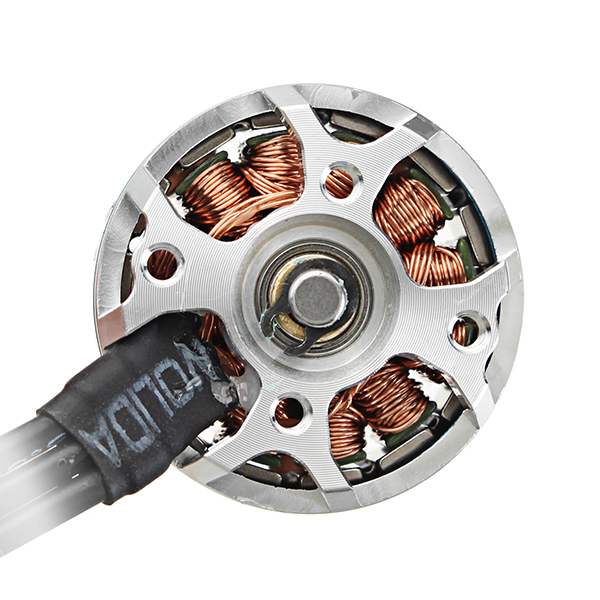

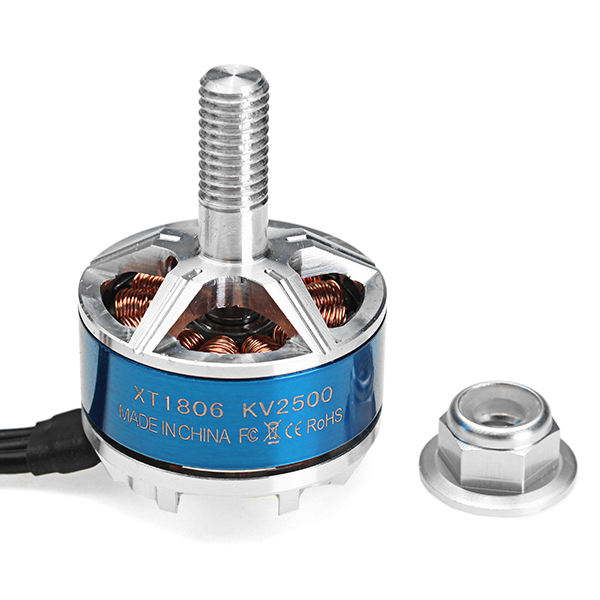

LDARC 200GT Part XT1806 1806 2500KV 3-4S Brushless Motor for RC Drone FPV Racing
Specification:
Brand Name: LDARC
Model: XT1806
Item Name: 1806 2500KV 3-4S Brushless Motor
Version: CW / CCW ( Optional)
KV: 2500KV
Input Voltage: 3-4S Lipo
Max. Lipo: 4S
Shaft Diameter: M5
Motor Width: 22.4mm
Motor Height: 30.5mm
Weight: 21.1g
Recommend Propeller: 4-5 Inch
Application: original part for LDARC 200GT FPV Drone
Testing Table:
| Propeller | Voltage (V) | Current (A) | Power (W) | Pull (g) |
| 5040 3-Blade | 14.8V | 1 | 16.4 | 114.3 |
| 2 | 34.4 | 180.2 | ||
| 5 | 81 | 298 | ||
| 10 | 152 | 528 | ||
| 26 | 360 | 1047 |
Package Included:
1x XT1806 2500KV Motor
1x Motor Mounting Base
1x bag of Screws
