Description

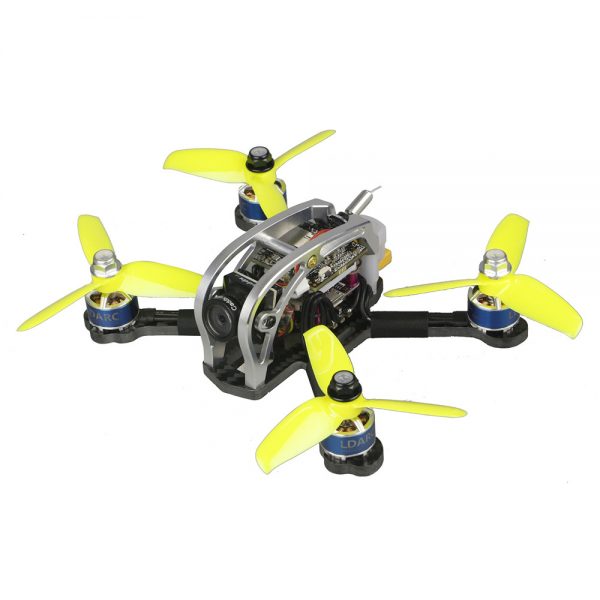

LDARC 130GTI-HD 133mm F4 OSD 3-4S FPV Racing Drone PNP BNF w/ Caddx.US Turtle V2 1080P Camera
Specification:
Brand Name: LDARC
Model: 130GTI-HD
Item Name: 133mm F4 OSD 3-4S FPV Racing Drone PNP BNF
Wheelbase: 133mm
Bottom Plate Thickness: 4mm
Version: PNP ( Without Receiver) / BNF ( With AC2000 Receiver Compatible S-FHSS & D16 Non EU & D16 EU-LBT )
Net Weight: 139.1g ( Not Included battery)
| LDARC F4 OSD Flight Controller | Brand Name: LDARC Item Name: F4 OSD Flight Controller Mounting Hole: 20x20mm
Size: 25x25mm
Net Weight: 4g
Firmware: MatekF411
– Support SBUS, PPM, DSMX, Ibus Receiver
– Integraded with Betaflight OSD
– With 5V port for camera
– Support Voltage monitor, buzzer and LED
|
| LDARC 20A BLheli_S 4In1 ESC | Brand Name: LDARC Item Name: 20A BLheli_S 4In1 ESC Con. Current: 20A
Peak Current: 25A
Input Voltage: 2-4S Supported
Firmware: BLheli_S ( G_H_30 )
Mounting Hole: 20x20mm
Size: 28x31mm
Net Weight: 5g
|
| LDARC 5.8G 48CH 0/25/100/200mW FPV Transmitter |
Brand Name: LDARC
Item Name: 5.8G 40CH 0/25/100/200mW Switchable FPV Transmitter
Input Voltage: 2-6S Lipo Supported
Output to camera voltage: 5V
Channel: 48CH
Power: Off / 25mW / 100mW / 200mW
Mounting Hole: 20x20mm
Size: 25x25mm
Net Weight: 2.0g
How to use VTX:
Blue Light points at the CH indicator ( CH1-CH8, flashes 1-8 times)
Green Light points at the Band Indicator ( Band A- Band F, flashes 1-6 times)
Red Light points at the Power Indicator (25-100mW, flashed 1-3 times)
|
| LDARC XT1406 3600KV Brushless Motor | Brand Name: LDARC Model: XT1406 Item Name: 1406 3600KV 2-4S Motor Brand Name: LDARC
Model: XT1406
KV: 3600KV
Input Voltage: max. 4S Lipo
Shaft Diameter: M5
Motor Mounting Hole: M2 ∅12
Motor Width: 18mm
Motor Height: 28.55mm
Weight: 13.2g (with cable and nut)
|
| LDARC 3050 3-Blade Propeller | Brand Name: LDARC Item Name: 3050 3×5 3 Inch 3-Blade Propeller Color: Yellow Quantity: 10 CW & 10 CCW |
| Caddx.US Turtle V2 HD Camera |
Image sensor: 1/2.7" CMOS sensor
Horizontal: 800TVL
TV system: NTSC/PAL,changeable
Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps
Power Input: DC 4.5-20V
FPV FOV: 155°
Recording FOV: 170°
Mini Illumination: 0.01lux
Image Resolution: 2 Megapixels
Lens: 1.8mm Turbo Eye Lens
Working Current: 380mA@5V/160mA@12V (low consumption)
OSD Menu: Yes (Support Voltage Display)
Video Files: MP4
Audio: Support
Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)
Net weight: 12g
|
| AC2000 Dual-core Tri-mode RSSI Receiver ( Only BNF Version ) |
Item Name: AC2000 Mini Receiver
Rated voltage 4.0V~6.0V
Size 14 x 26 mm
Weight 1.8g
Support S-FHSS(8 CHs)/D16 non-EU(14 CHs)/D16 EU-LBT(14 CHs) three modes, output S.BUS signal
The channel 16 of S.BUS value is real-time RSSI, BETAFLIGHT OSD can display this RSSI value in screen.
|
| Recommend Lipo Battery ( NOT Included) | Recommend 3-4S 600-800mAh Lipo Battery |
Package Included:
1x LDARC 30GTI-HD FPV Racing Drone
1x Canopy
2x TPU Landing Parts
