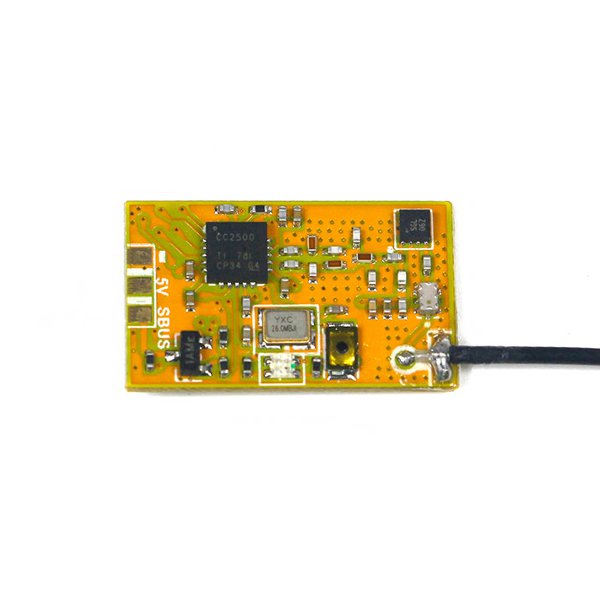

KINGKONG/LDARC RX800-PRO 2.4G 8CH S-FHSS Digital Receiver
Description:
Brand Name: KINGKONG/LDARC
Item Name: RX800-PRO Receiver
Frequency Range: 2403MHz – 2447MHz
2.4G System: CC2500 & CC2592
Channel: 8
System: S-FHSS
Color: Orange
Input: 4.0V – 6.0V
Input Current: 35mA
Output: S.BUS (3.3V high level signal)

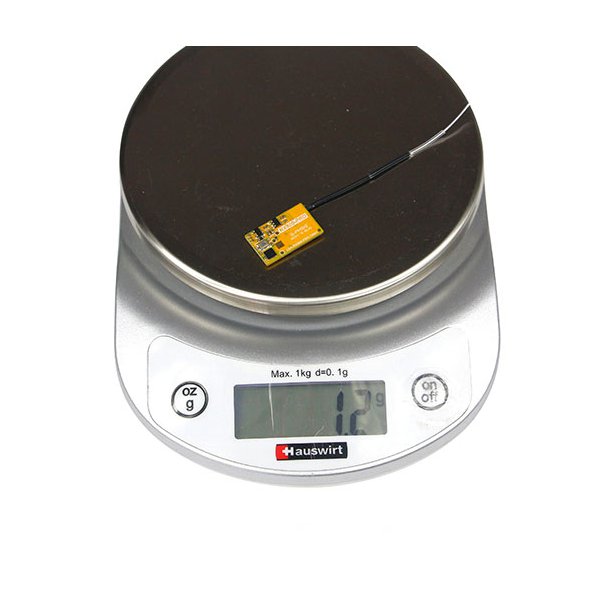

Weight: 1.2g
Size: 22x13x3mm
Compatible Flight Controller: Most F1,F3,F4,F7 flight controller
Features:
Small size, light weight.
Supports two failsafe modes.
Compatible with S-FHSS Transmitter,such as Futaba 14SG,16SZ,18SZ,18MZ,6J,6K,8J,10J.
Compatible with most F1,F3,F4,F7 flight controller.
How To Bind:
Turn on the transmitter,power on the receiver while pressing the receiver's key,bind procedure is completed and the receiver is working normally when green LED is solid.
Failsafe Function:
Support 2 failsafe modes,press the key and hold 3s while the receiver working normally can switch failsafe mode.
LED Indicator:
| Status | LED Indicator | |
| First flash when power on |
Red | S-FHSS 2.4G air system |
| Second flash when power on |
Green | Failsafe Mode A |
| Red | Failsafe Mode B | |
| Then solid |
Green | Transmitter signal received |
| Red | Transmitter signal lost |
Package Included:
