Description

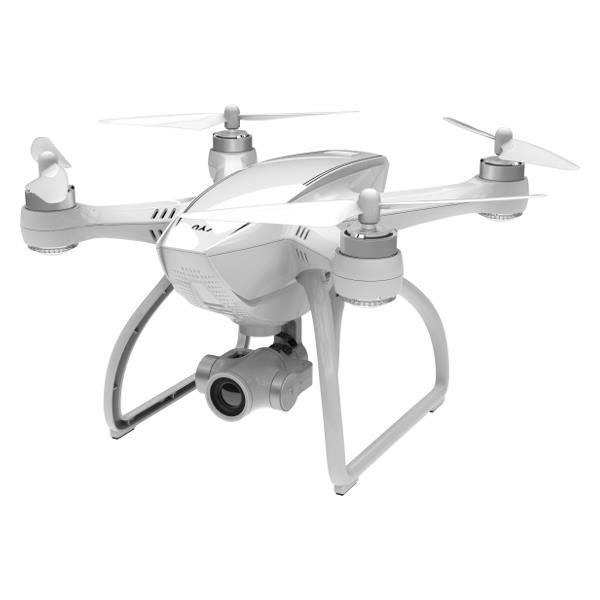

JYU Hornet 2 Racing 5.8G FPV With 4K HD Camera 3-Axis Gimbal RC Quadcopter RTF
Description:
| JYU Hornet 2 | |||
| Module | Specs |
Specs Value | |
| Aircraft | Weight (Including Battery And Propellers) | 800g | |
| Diagonal Size (Including Propellers) | 280mm | ||
| Take Off Weight | 1.8kg | ||
| Max Ascent Speed | 2.5m/s | ||
| Max Descent Speed | 2.5m/s | ||
| Max Speed | 10m/s | ||
| Max Altitude Above Sea Level | 4km | ||
| Max Flight Time | 28mins(FPV Version) 22mins(Aireal Version) |
||
| Operating Temperature | 0-40℃ | ||
| GPS Mode | GPS/GLONASS Dual Mode | ||
| Hover Accuracy(Safety Fly Mode) | +/- 1.5m | ||
| Propeller Type | 7340 | ||
| Module |
Specs |
Specs Value |
| Gimbal | Controllable Range | +20 — -90 degrees |
| Stabilization | 3-axis (picth, roll, yaw) | |
| Weight | 170g(with camera) |
| Module |
Specs
|
Specs Value |
| APP | Mobile App | JYU FLY |
| Required Operating Systems | ios 8.0 or later
Android 4.4.0 or later
|
| Module | Specs |
Specs Value |
| Charger | Input | AC 100-240V 50/60HZ MAX2.0A |
| Output 1 | DC14.8V MAX 4.7A | |
| Output 2 | DC5.0V MAX 2.0A | |
| Rated Power | 70W |
| Module | Specs |
C3(FPV camera) | C5 (1080P camera) | C6 (4K camra ) |
| Camera | Sensor | SONY IMX179 | SONY IMX179 | SONY IMX177 |
| Lens | 150 degrees | 120 degrees | 90 degrees | |
| ISO Range | Vedio:800/400/200/100/50 photo:800/400/200/100/50
|
Vedio:800/400/200/100/50
photo:800/400/200/100/50
|
Vedio:1600/400
photo:400/200/100
|
|
| Shutter Speed | Automatic | Automatic | Automatic | |
| Image Max Size | 8mp(3264×2448) | 8mp(3264×2448) | 12mp(4000 × 3000) | |
| Stillphotograph Modes | Single shot | Single shot | Singleshot/burstshooting /time-lapse |
|
| Video Recording Modes | 1080P@30FPS 720P@60FPS | 2.7K@30FPS 1080P@60FPS
1080P@30FPS 720P@120FPS
|
4K@30FPS 1080P@30FPS 720P@60FPS |
|
| Supported File Formats | Photo: JPEG Vedio:AVI |
Photo: JPEG Vedio:MP4 |
Photo: JPEG Vedio:MP4 |
|
| Supported SD Card Types | TF(Micro_SD): 8G – 32G | TF(Micro_SD): 8G – 32G | TF(Micro_SD): 8G – 64G | |
| OperatingTemperature | -10 -50℃ | -10 -50℃ | -10 -50℃ |
| Module | Specs | Specs Value |
| Transmitter | Operating Frequency | 2.400-2.483Ghz 5.725-5.825Ghz |
| Max Transmission Distance | 2.400-2.483Ghz(unobstructed, free of interference) FCC:2000M, CE:800M
5.725-5.825Ghz FCC:2000M, (unobstructed, free of interference) |
|
| EIRP | 2.400-2.483Ghz 26dBm(FCC),17dBm(CE) 5.725-5.825Ghz |
|
| Operating Temperature | 0-40℃ | |
| Image Output | WIFI(RD13) 2.5mm headphone jack(RA13) | |
| Battery | 2200mAH Lipo 1s | |
| Support Display Device | JYU-FPV LCD or cellphone length within 7000 |
|
| Operating Voltage | 0.5A@3.7V |
| Module |
Spece | Specs Value |
| Battery | Capacity | 3600mAh |
| Voltage | 14.8V(4S) | |
| Battery Type | LIPO Battery | |
| Energy | 54Wh | |
| Net Weight | 190g | |
| Max Charging Power | 70W | |
| Operating Temperature | 0-40℃ |
| Module | Spece | Specs Value |
| Wrist Controller |
Satellite Positioning Systems | GPS/GLONASS |
| Wireless | 5.8G | |
| Transmission Distance | 300 meters | |
| Battery Capacity | Internal LiPo battery 3700mAh@3.7V | |
| Charge | 500mA@5V | |
| GPS Search Time | About 45 seconds(open filed) |
Note: the wrist controller is not included in the package.
Features:
Streamlined design,every contour of the Hornet 2 was fashioned to create a beautiful and aerodynamic design made to maximize speed and agility.
Not just outward appearance, inside of hornet 2 also have reasonable design, heat inside is easy comes out when flying.
Not just outward appearance, inside of hornet 2 also have reasonable design, heat inside is easy comes out when flying.
Dual GPS auto positioning system, the accurate positioning location, perfect advanced follower.
With 3600mAh intelligent battery, extend fly time for about 22-28 minutes, more energy and greater power combine to give you a vastly improved flight experience. This upgraded Intelligent Flight Battery has built-in CPU and sensors that let you know the status and remaining power of your battery in real time.
With FPV HD Camera, your best angle with 1080P HD video.Camera pitch +38° ~ -80°, support video record.(FPV Version)
With 1080P/4K HD camera, 3-Axis Gimbal, make shooting and taking video more stable, gives you more clear and high quality wonderful views from different angles.(Gimbal Version)
With way points function, record a flight path, then tell your Hornet 2 to fly along the same path repeatedly while you control the camera and orientation.(Gimbal version)
With point of interest function, record a point of interest, then tell your hornet 2 to fly surround repeatedly while you control the camera, radius, speed and height.(Gimbal version)
With follow me function, using wrist control hornet 2 follow with you.
Low battery auto return, low power to the set value, hornet 2 will automatically returns home point.
Low Power Geo Fencing,if a low battery warning is triggered during the flight, You will not be able to fly the aircraft out of this fenced in area with a radius of 20 meters and a height of 20 meters.
Two antennas on the top of the transmitter to ensure a stable radio coverage.
Colorful led light to distinguish the direction of quadcopter and Flight mode,show the battery’s reminding.
Package included:
Standard Version :
1 x Hornet 2 GPS Quadcopter
1 x Transmitter
1 x Battery
FPV Display Version:
1 x Hornet 2 GPS Quadcopter
1 x C3 Camear
1 x FPV LCD Screen
1 x Transmitter
1 x Battery
1080P Camera Gimbal Version:
1 x Hornet 2 GPS Quadcopter
1 x C5 Camera
1 x Brushless Gimbal
1 x Landing Gear
1 x Transmitter
1 x Battery
4K Camera Gimbal Version:
1 x Hornet 2 GPS Quadcopter
1 x C6 Camera
1 x Brushless Gimbal
1 x Landing Gear
1 x Transmitter
1 x Battery
