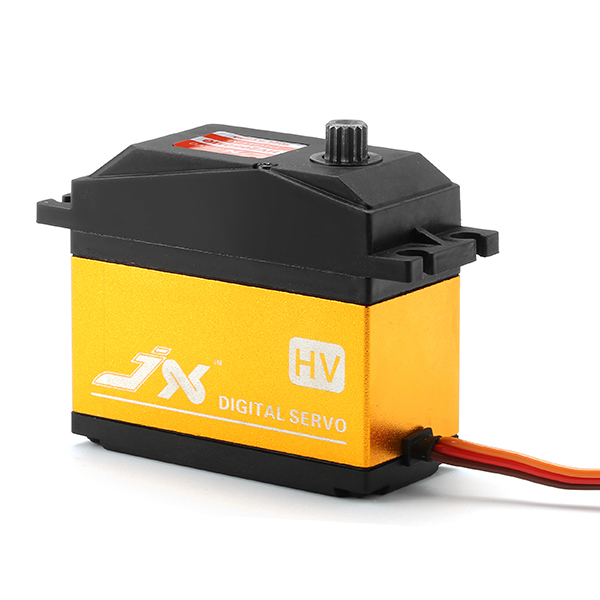

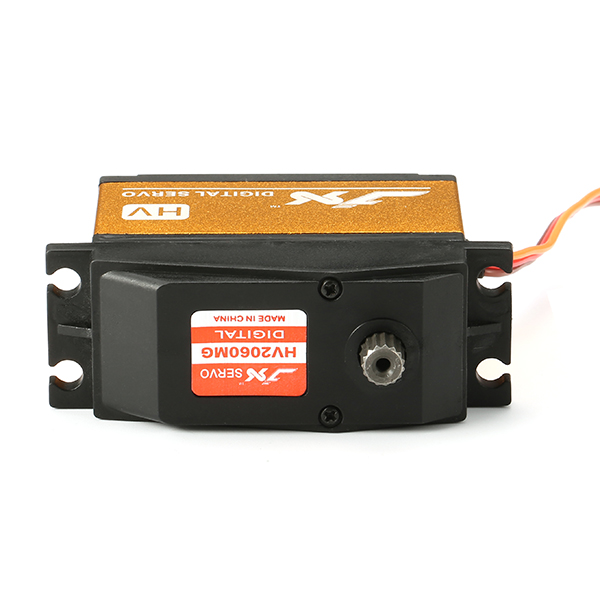

JX Servo PDI-HV2060MG 60KG High Torque 180° Digital Servo for RC Model
Description:
Brand: JX Servo
Item: PDI-HV2060MG
Dead band: 4μs 1520μs / 330hz
Max PW:650-2350us ,180° compatible (don't exceed max PW)
Standard PW: 850-2150us
Motor: High quality core motor
Operating Voltage: DC 6.0V-7.4V
Operating Temperature Range: -20 — + 60°C
Operating Speed: (6.0V) 0.17 sec/60°
Operating Speed: (7.4V) 0.15 sec/60°
Stall Torque: (6.0V) 48kg.cm
Stall Torque: (7.4V) 62kg.cm
Dimensions: 65.8X30X57.4mm
Weight: 200g
Bearing: 2BB

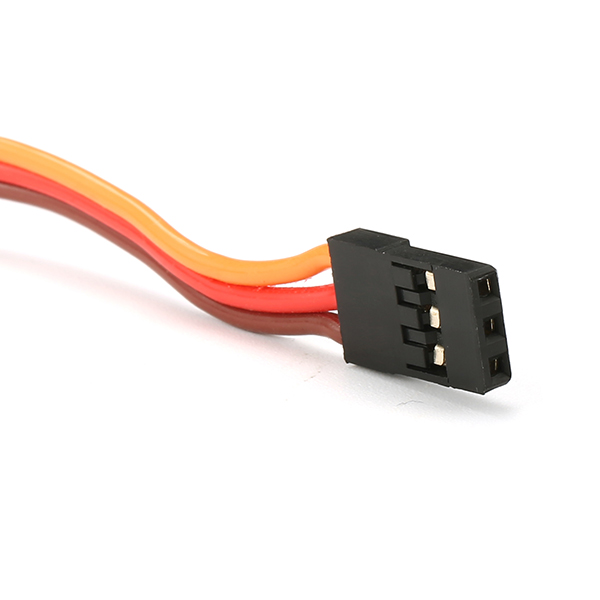

Connector Wire Length: JR 265mm
Fearture:
High-performance and high-torque standard digital servo.
High-precision metal gear.
Dual ball bearing.

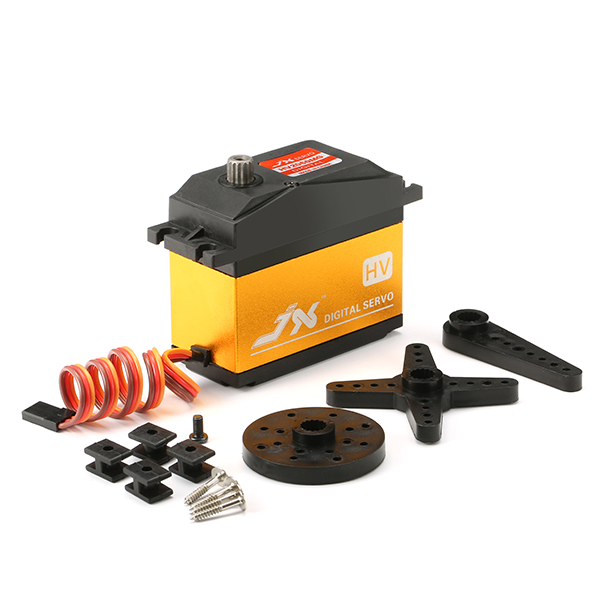

Package included:
1 x JX Servo PDI-HV2060MG Servo
1 x Accessories bag
