JX Servo D56MG 5.6g Coreless LV Low Voltage DS/MG Metal Gear Servo 0.89kg 0.10sec
| Weight(g) | 5.6 |
| A(mm) | 27 |
| B(mm) | 20 |
| C(mm) | 24 |
| D(mm) | 8.2 |
| E(mm) | 28 |
| F(mm) | 16 |
Description:
Brand:JX Servo
Item:D56MG Servo (low voltage version)
Weight: 5.6g
Dimension: 19.8×8.2×21.2mm
Stall torque: 0.58kg/cm (3.7V),0.7kg/cm (4.2V),0.89kg/cm 5.5V)
Operating speed: 0.13sec/60degree(3.7v),0.12sec/60degree(4.2V),0.1sec/60degree(5.5V)
Operating voltage: 3.7~5.5V DC
Frequence: 1520μs / 330hz

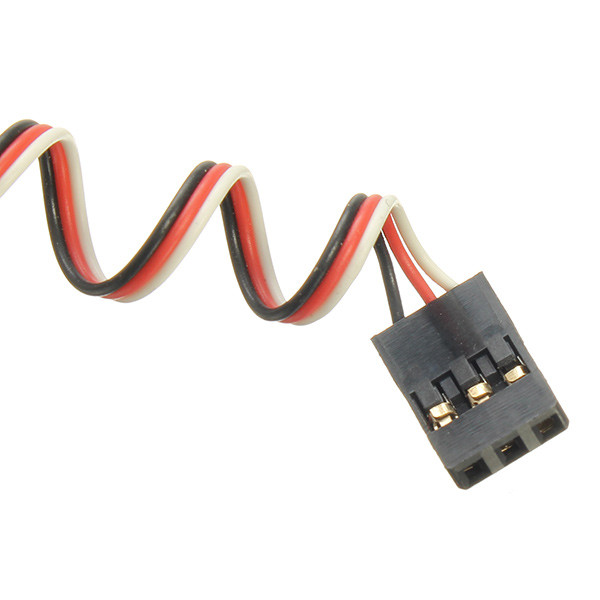

Servo lead: 150mm length
Servo plug: JR (Fits JR and Futaba)
Features:
The JX D56MG servo is great for small gliders and DLGs or just about any other mini airplane using single cell LiPoly batteries (3.7V) and where the ruggedness of a metal gear train is required.
The coreless motor provides excellent holding power and precision at a great price.
Package Included:
1 x JX Servo D56MG 5.6g Coreless LV Low Voltage DS/MG Metal Gear Servo 0.89kg 0.10sec
