Description
Description:
Brand: JX Servo

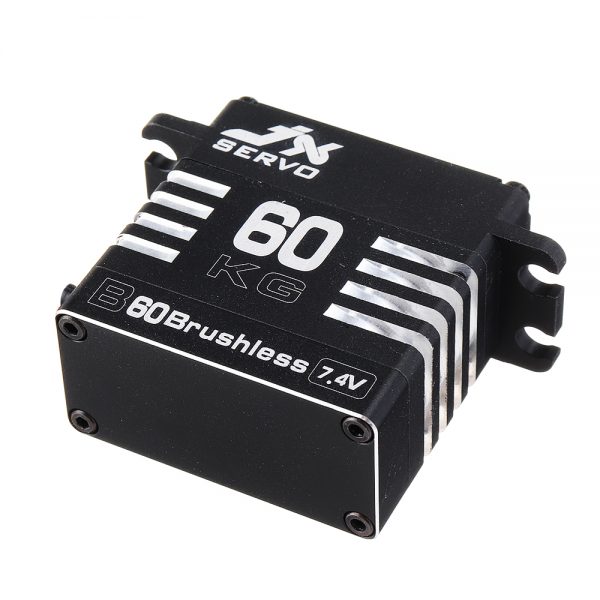

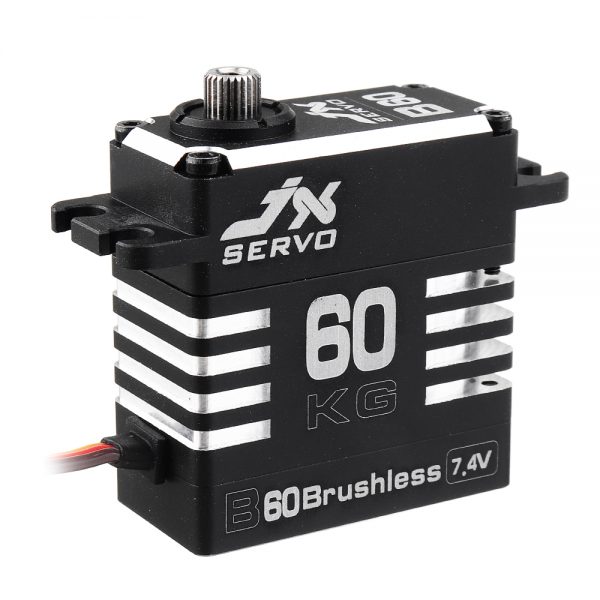

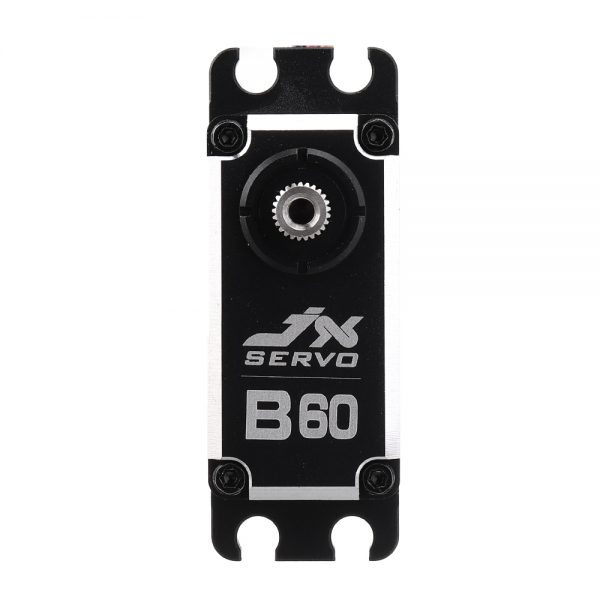

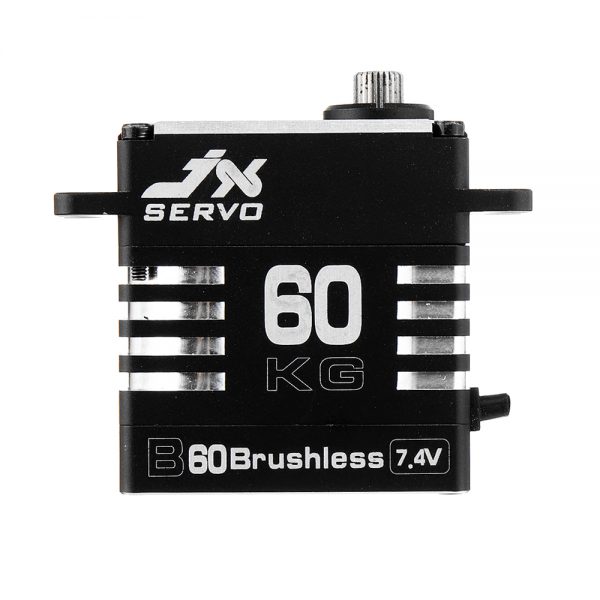

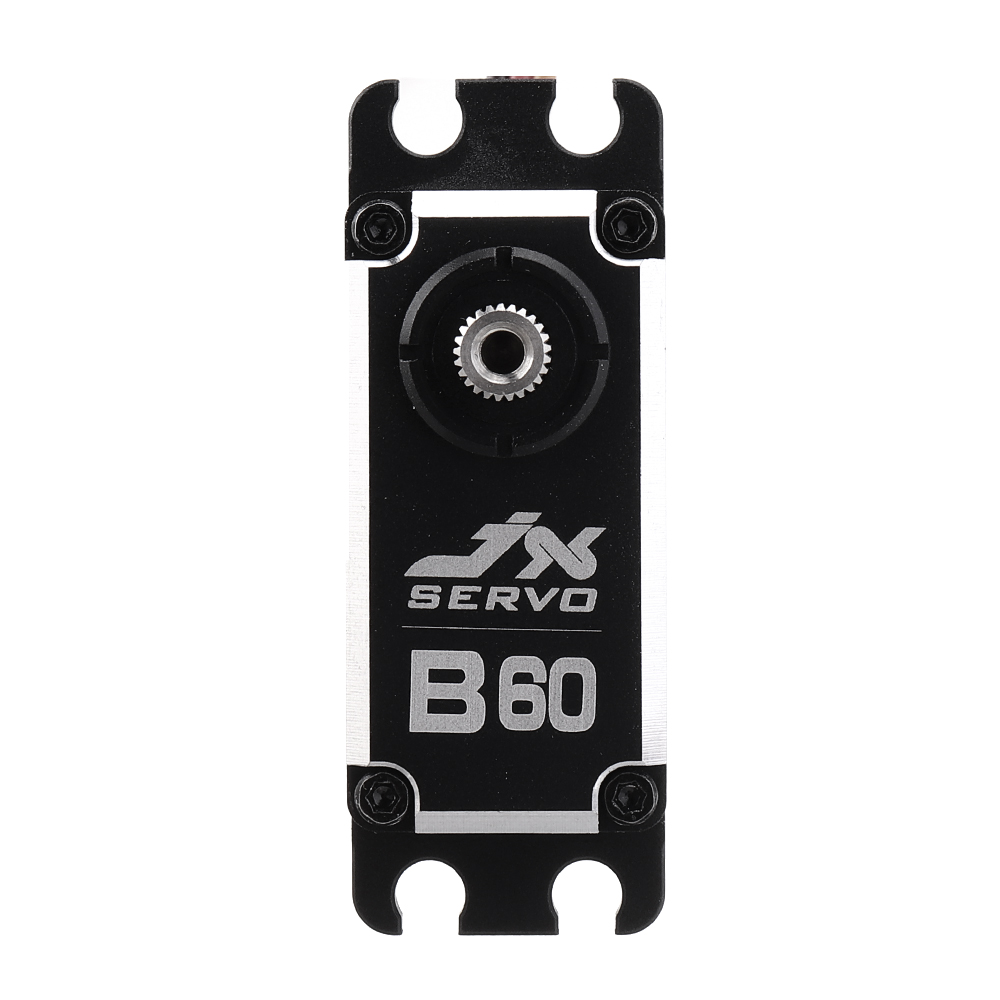

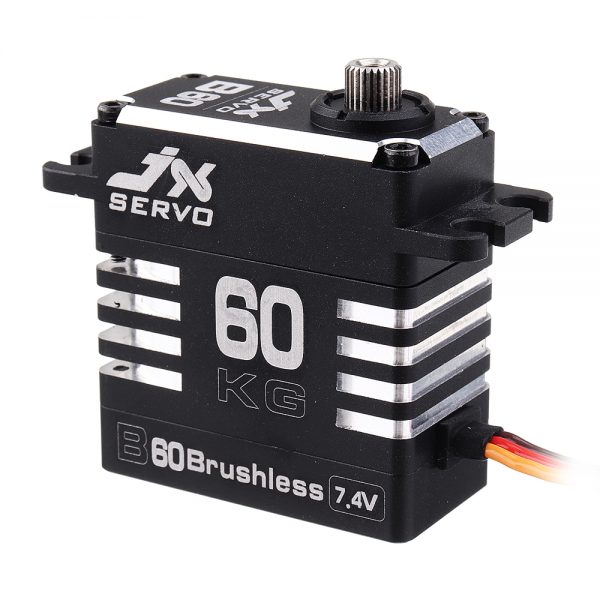

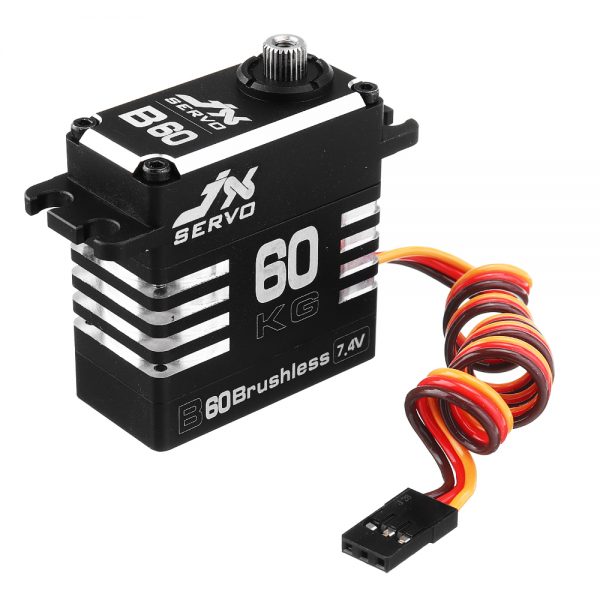

Item: B60 Digital Servo
Pulse width: 1000-2000μs=90°
Pulse width: 500-2500μs=180°
Dead band: 2μs 1520μs / 330hz
Motor: Brushless Motor
Voltage: 6.0-8.4V
Operating Speed (6.0V): 0.13sec/60°
Operating Speed (7.4V): 0.12sec/60°
Operating Speed (8.4V): 0.11sec/60°
Operating Speed (8.4V): 0.11sec/60°
Stall Torque (6.0V): 52kg.cm
Stall Torque (7.4V): 55kg.cm
Stall Torque (8.4V): 62kg.cm
Connector Wire Length: JR 265 mm
Bearing: 2BB
Weight: 87g
Dimensions: 40X20X43.3mm
Application: For RC Models

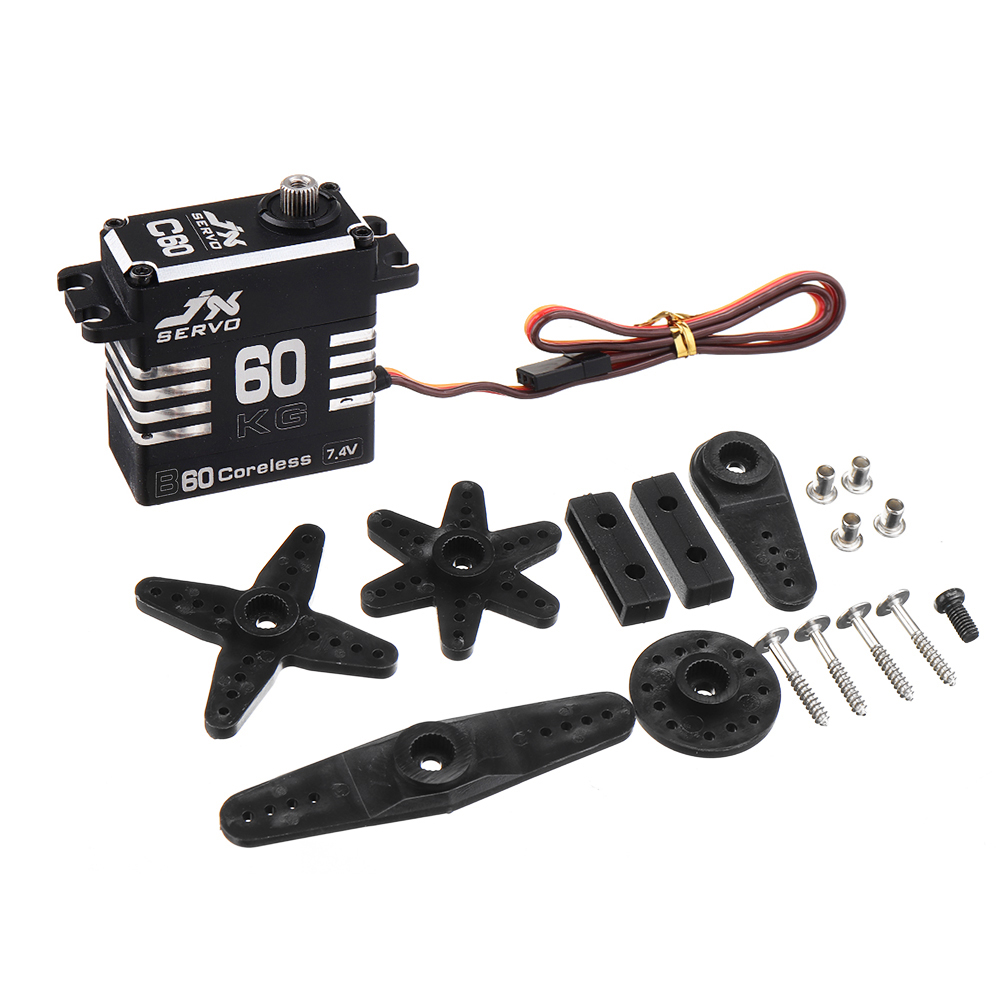

Package:
1* JX Servo B60 Digital Servo
1* Servo Arm Set
