Description
Description:
Brand: JX

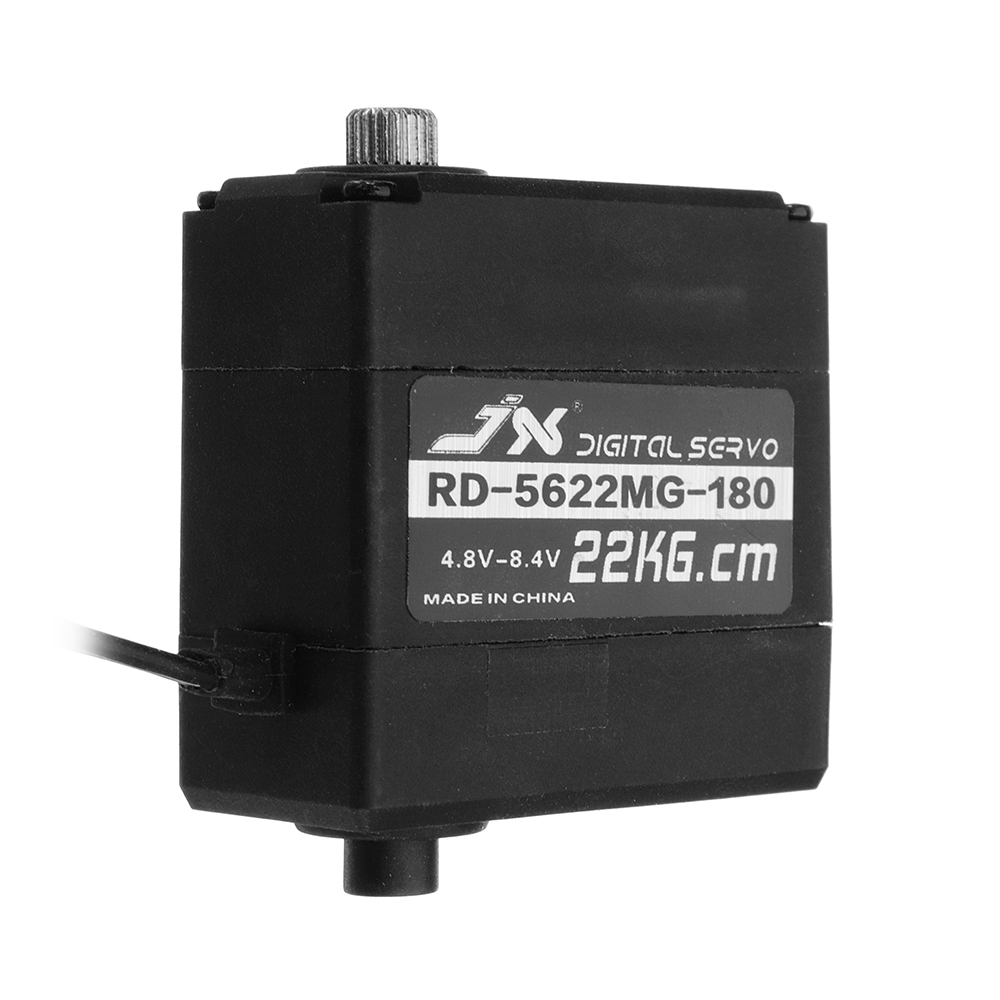

Item: RD-5622MG-180
Product: Servo
Dead Zone: 4µs
Brand: JX
Item: RD-5622MG-180
Product: Servo
Dead Zone: 4µs
Neutral Point: 1500µs
Support Pulse Width: 500µs – 2500µs
Max Angle: 180 degrees
Frequency: 330hz
Voltage Range: 4.8V/6.0V/7.4V
Speed (4.8V/6.0V/7.4V): 0.22/0.20/0.18sec/60 degrees
Torque (4.8V/6.0V/7.4V): 14.8/17.6/22.0 kg.cm
Size: 40.5X20.3X40mm
Weight: 56G
Line Specification: JR 200mm black silicone wire
Output Header: 25T
Features:
– High performance digital standard servo
– High-precision metal gears
– Large torque
– Large torque
– Dual ball bearings

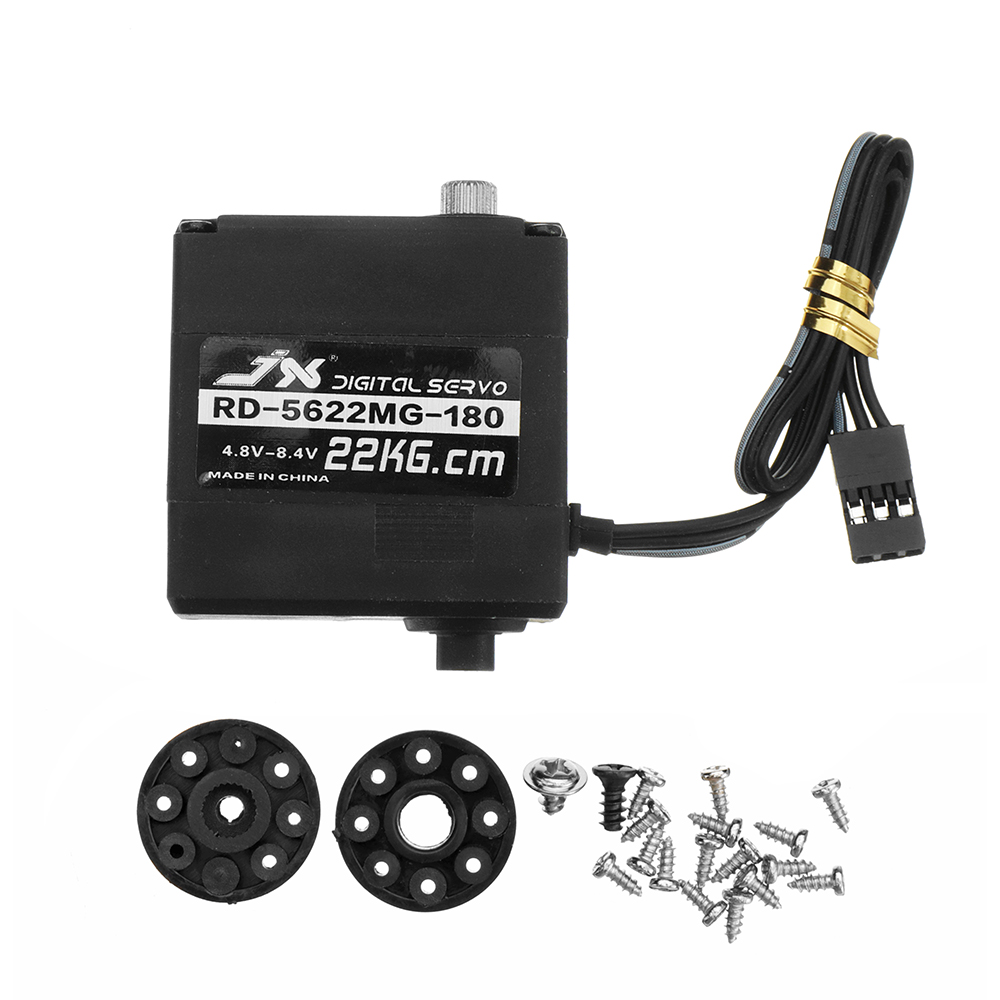

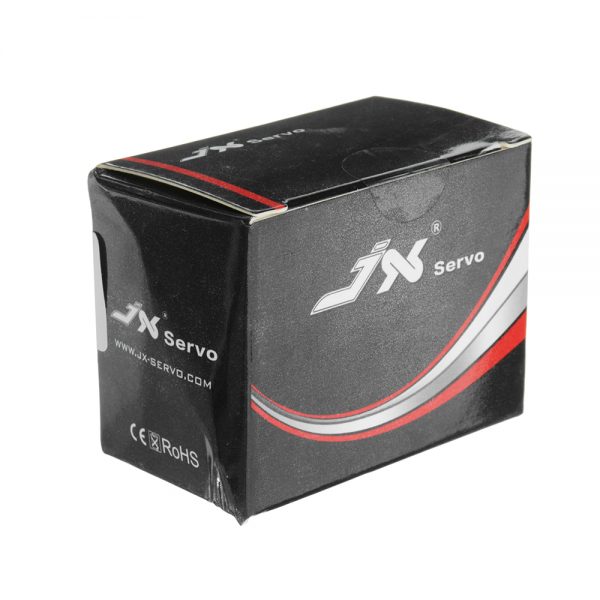

Package:
1* JX RD-5622MG-180 Servo
