Description
Feature:
High performance HV digital standard servo
High-precision Taiwan-made aluminium gears with hard anodizing
Dual ball bearings
Specification:
Brand: JX servo
Type: PDI-HV5523MG
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (6.0V): 0.18 sec/60°
Operating Speed (8.4V): 0.16 sec/60°
Stall Torque (6.0V): 19.2 kg.cm
Stall Torque (8.4V): 23 kg.cm
Dimensions: 40.5X20.2X38mm
Weight: 55.6 g

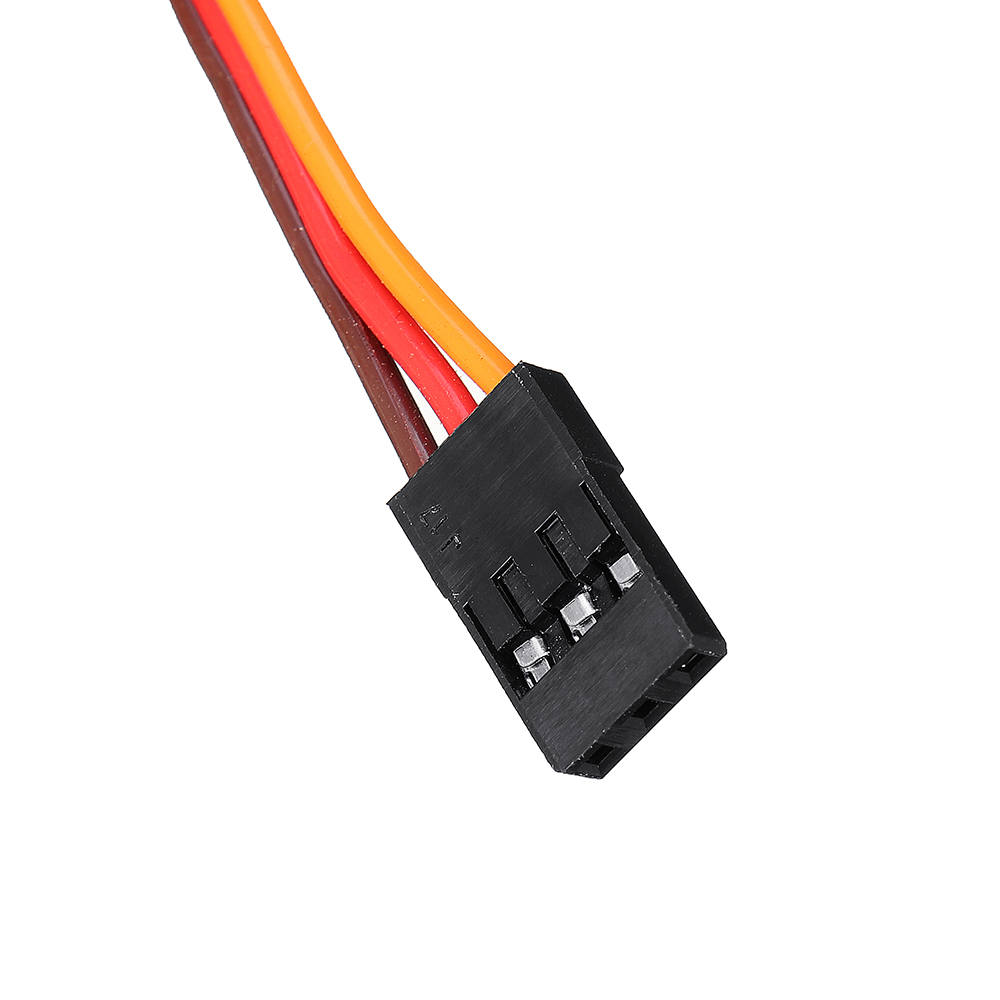

Connector Wire Length: JR 265 mm
Bearing: 2BB

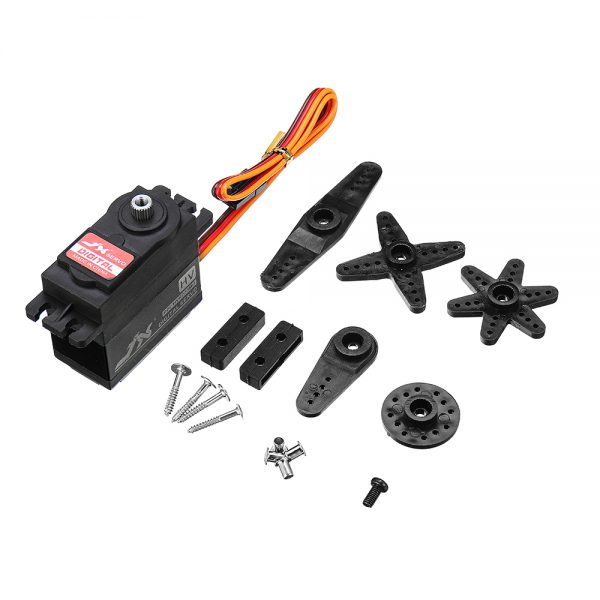

Packaging Included:
1X JX PDI-HV5523MG Servo
