Description
Note:
It is not suitable for the transmitter that can not set up pulse width.(like RC car or RC boat)
Description:
Brand:JX Servo
Item:PDI-2506MG
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (4.8V): 0.11sec/60°
Operating Speed (6V): 0.09 sec/60°
Stall Torque (4.8V): 5.3kg.cm
Stall Torque (6V): 6.6kg.cm
Dimensions: 35.5X15X30mm
Weight: 26.32 g (0.93oz)

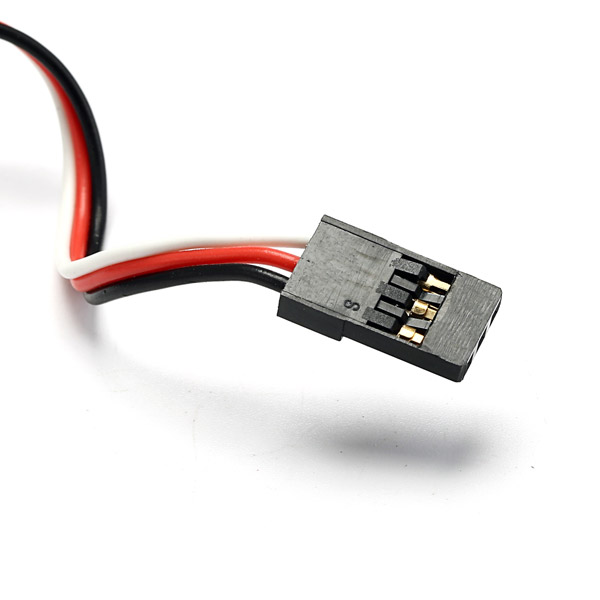

Connector Wire Length: JR 180 mm (7.09in)
Bearing: 2BB
Usage:for RC Models
Features:
High quality servo for RC Models
High precision metal gear
Mini size digital servo
Dual ball bearing
Package Included:
1 x JX Servo PDI-2506MG 25g Metal Gear Digital Servo
,
,
,
,
,
,
,
,
