Description
Description:
Brand: JX

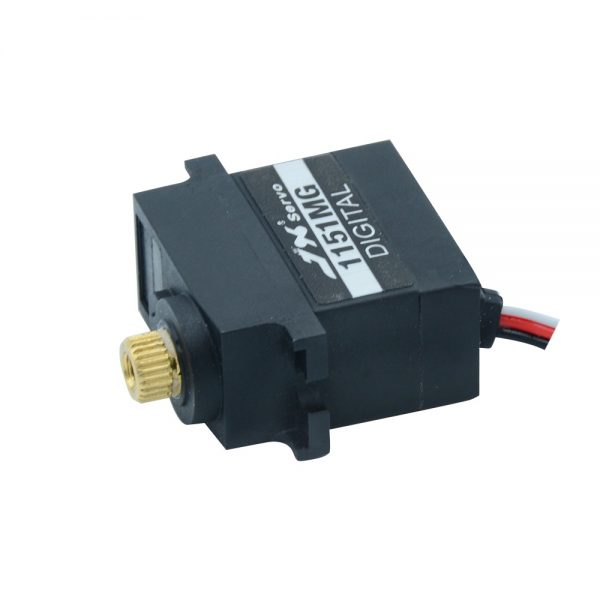

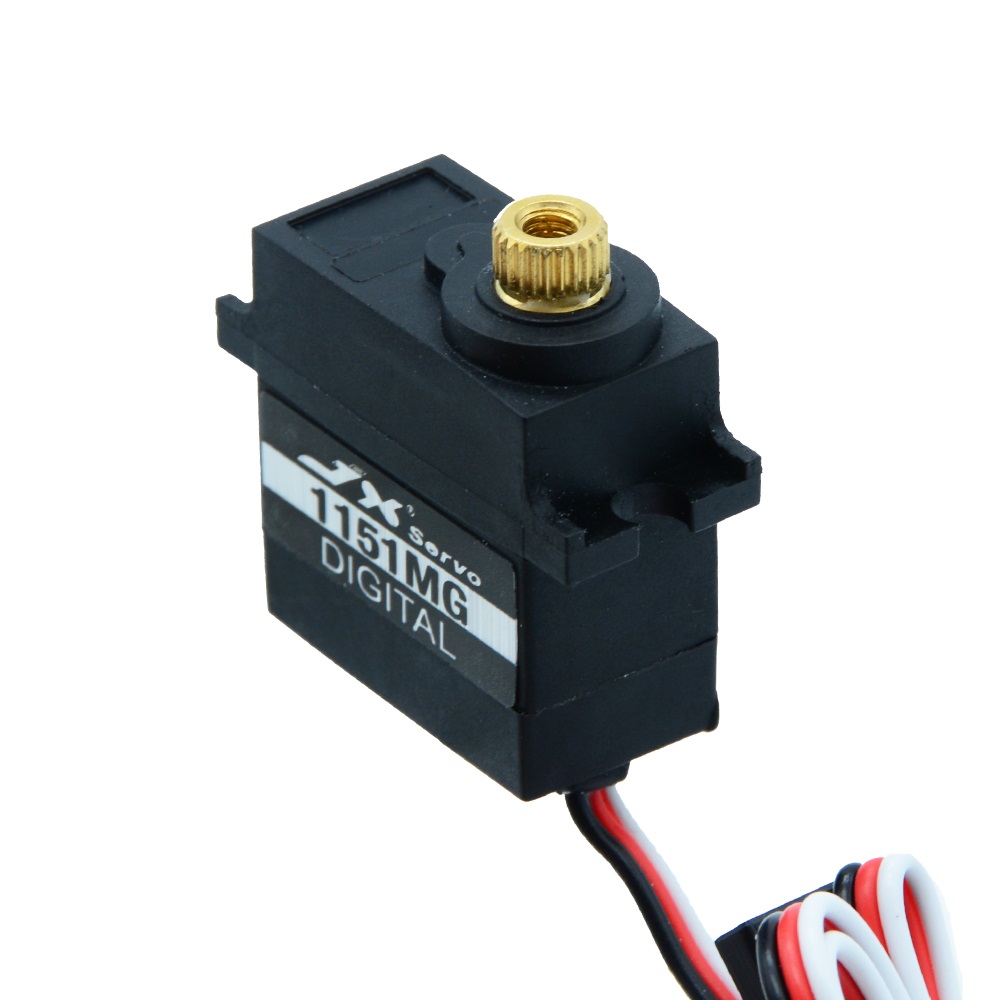

Product: PDI-1151MG Digital Servo
Voltage: 4.8-6.0V
Dead Band: 2μs
Frequency: 1520us/330hz
Pulse Width: 1000-2000μs=90°
Pulse Width: 500-2500μs=180°
Motor: Coreless Motor
Operating Speed(4.8V): 0.12sec/60°
Operating Speed(6.0V): 0.10sec/60°
Stall Torque(4.8V): 3.2kg.cm
Stall Torque(6.0V): 3.6kg.cm
Bearing: 2BB
Connector Wire Length: JR 265 mm
Working Temp: -20℃~+60℃
Weight: 15g
Dimensions:23.2 x 12.5x 25.6mm
Package:
1* JX PDI-1151MG Digital Servo
