Description
Specification:
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (4.8V): 0.15sec/60°
Operating Speed (6.6V): 0.12sec/60°
Stall Torque (4.8V): 23.26 kg.cm (322.99oz/in)
Stall Torque (6.6V): 30.64kg.cm (425.51oz/in)
Dimensions: 40.5X20.5X40mm /1.59X0.80X1.57in
Weight: 63g (2.22oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 3BB
Feature:
1.CNC metal on the cover in the shell.
2.High percision Taiwan-made aluminum gear with hard anodizing
3.High voltage coreless digital servo.
Packaging Included:

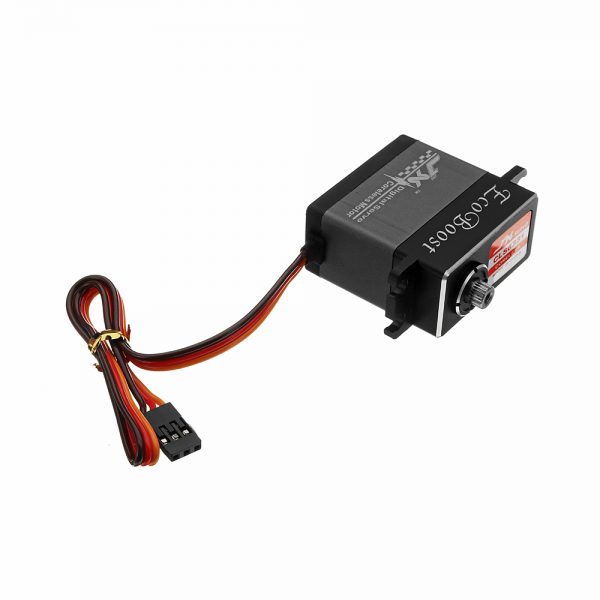

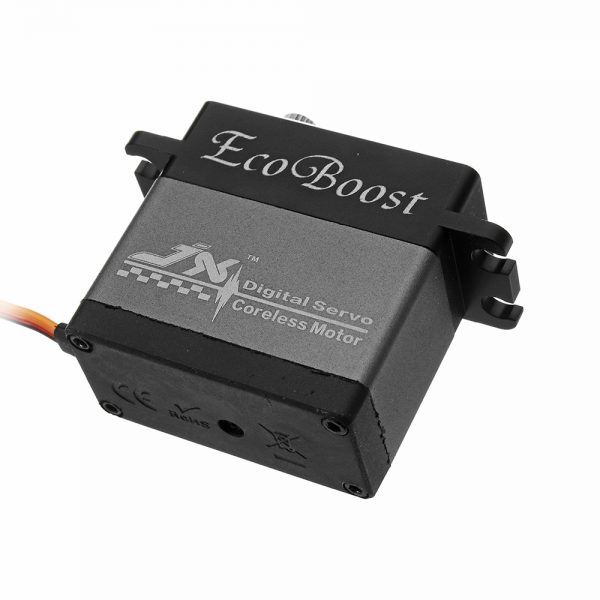

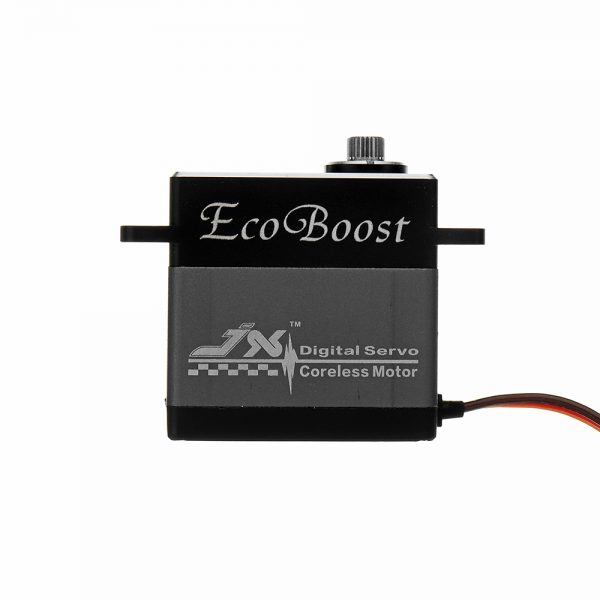

1X JX CLS6331 Coreless Digital Servo
