Description
Specification:
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (6V): 0.11sec/60°
Operating Speed (7.4V): 0.09sec/60°
Stall Torque (6V): 22.61kg.cm (313.99oz/in)
Stall Torque( 7.4V): 27.45kg.cm (381.37oz/in)
Dimensions: 40.5X20.5X40mm /1.59X0.80X1.57in
Weight: 63g (2.22oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Feature:
1.CNC metal on the cover in the shell.
2.High percision Taiwan-made aluminum gear with hard anodizing
3.High voltage coreless digital servo.
Packaging Included:

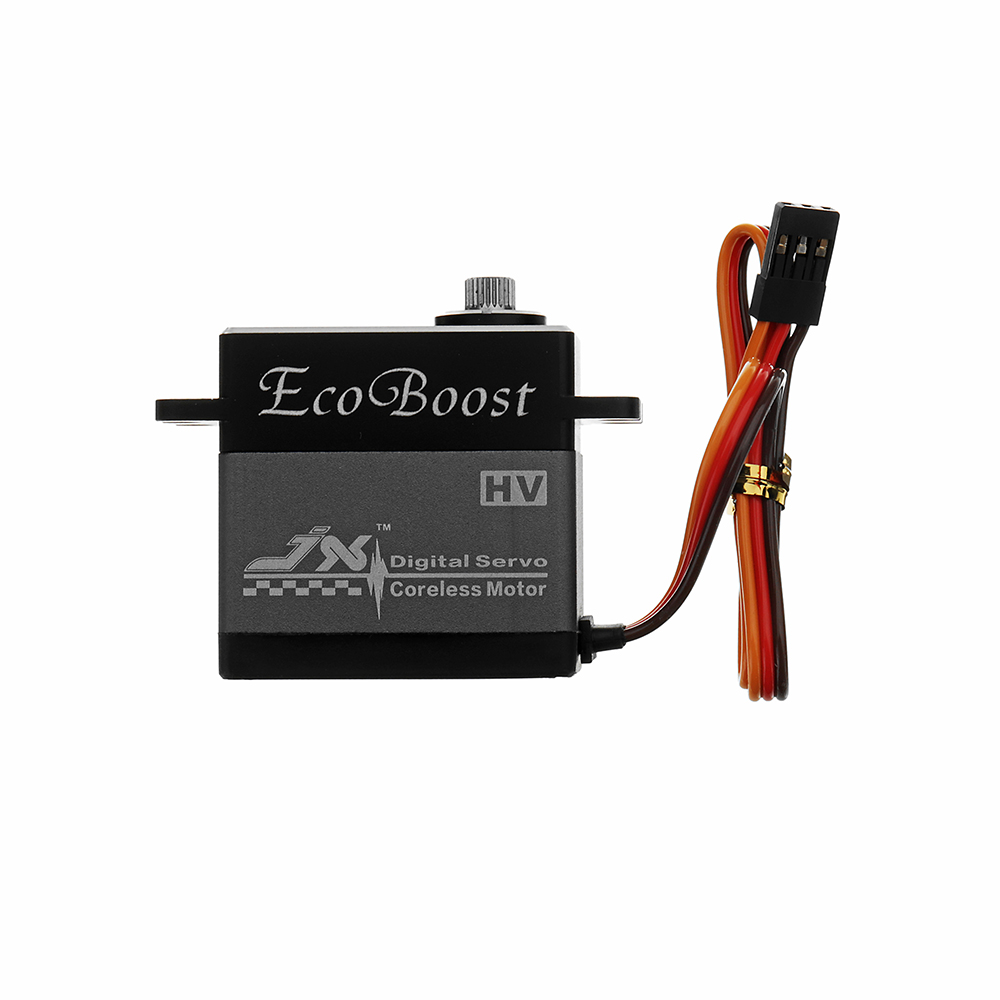

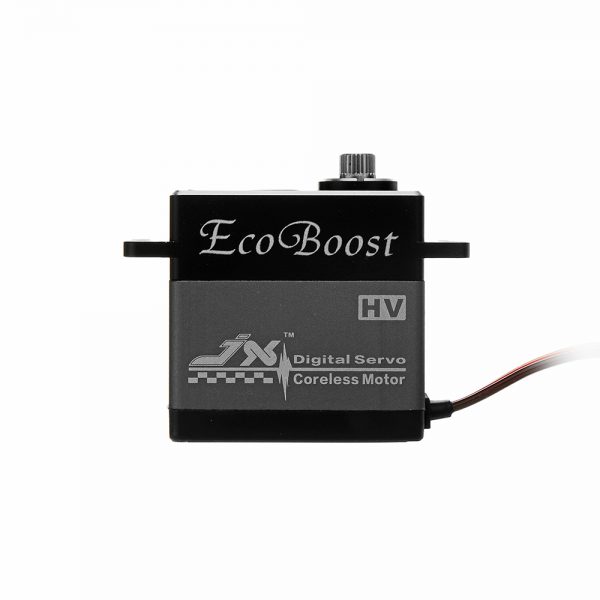

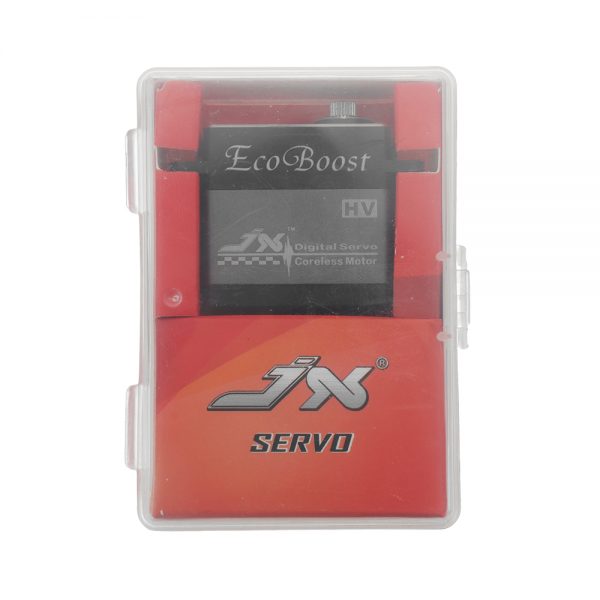

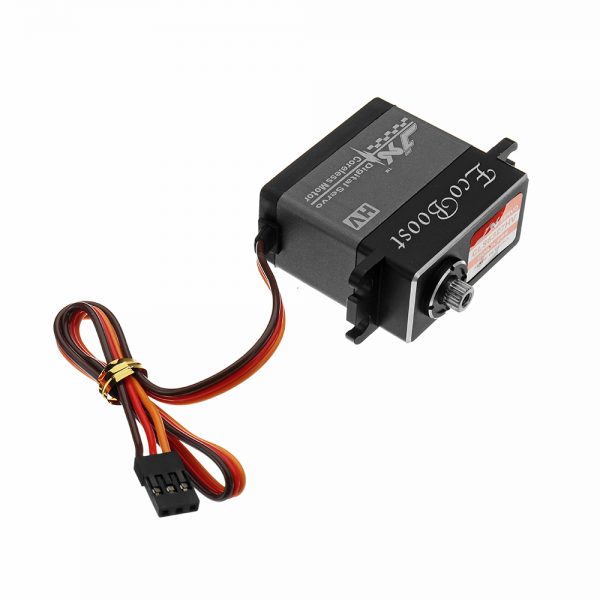

1X JX CLS6327HV Coreless Digital Servo
