Description

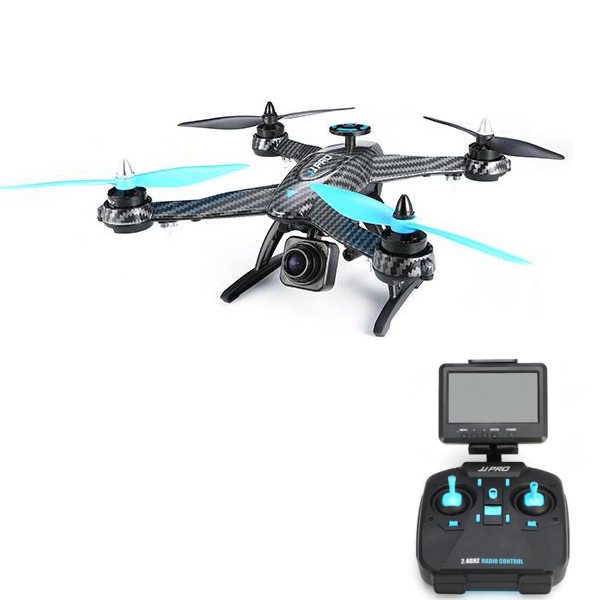

JJRC X1G 5.8G FPV With 600TVL Camera Brushless 2.4G 4CH 6-Axis RC Quadcopter RTF
Description:
Brand Name: JJRC
Item NO.: X1
Item name: RC Quadcopter
Frequency: 2.4G
Gyro: 6 axis
Material: ABS
Size: 21*21*11cm
Motor: D1806-2280KV brushless motor
Flight time: about 15 minutes
Charging time: 90 minutes
Control distance: about 300-400M
Battery for quadcopter: 7.4V 1300mah Li Battery (included)
Battery for transmitter: 4 x 1.5V AA battery (not included)
5.8G FPV Specification:
5.8G Transmitter module power: 350mW
Standard antenna: 5.8G glue stick omnidirectional antenna
Antenna gain: 3DB
Camera: 600TVL HD Lens
Clarity: 0.01LUX
Effective pixels: PAL=780(H)*570(V)
NTSC=740(H)*490(V)
Video output: 1.0Vp-p/75
Viewing angle: 120 degrees
Lens: complete bo wide-angle large lens
The Webcam is 600TVL HD illumination FPV dedicated color light weight webcam.
Standard 120-degree wide-angle HD one million complete bo lens,with automatic adjustment.
Adapt to the ambient light function, the human eye can see shooting of objects, By low illumination antomatic regulator V will dark environment brightens.
Function and Operation:
5.8G module is 32 channels, divided into four groups, with eight red LED and four green LED representation, RED representation passage, Green representation groups.
Every time module is powered up, the default is a set of one passage.
Press module button is switching passage, press 3 seconds is switching group.
On the remote control can also operate switch passage and group, the original camera button is switch passage, video button is switching group function.
Features:
With 5.8G FPV 600TVL HD Camera. Real-time video transmission capabilities, remote control LCD screen can playback video.
With brushless motor, the D1806 – 2280KV provides strong power to the quadcopter.
Large 7.4V 1300mA capacity battery ensures the strong power, Superior 15mins long flight time.
It has 6-axis gyro which can have more stable flying and be easy to control.
4 Channel which can do ascend, descend, forward, backward, left sideward fly, right sideward fly.
With highlight LED lights, make it more dazzle beautiful and colorful night light.
Idle speed adjustment / stop expansion, rudder volume switch
Lightweight airframe with nice durability
Function: Up/down/left/right/side flight/ fine-tuning/aileron elevator/ rudder 3 rate switch/aileron trim/idle trim and stop/360 rollover.
Package Included:
1 x JJRC X1 RC Quadcopter
1 x 600TVL camera
1 x Transmitter
1 x FPV Monitor
1 x Antenna
1 x Battery
1 x Charger
4 x Spare blades
4 x Protection cover
2 x Landing gear
1 x Screwdriver
1 x English Manual
