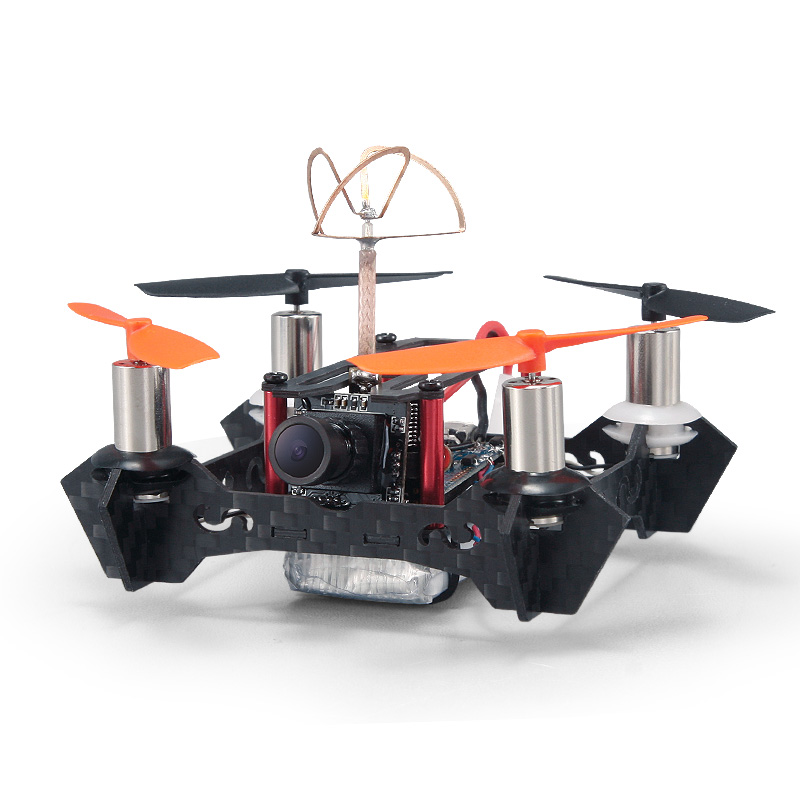

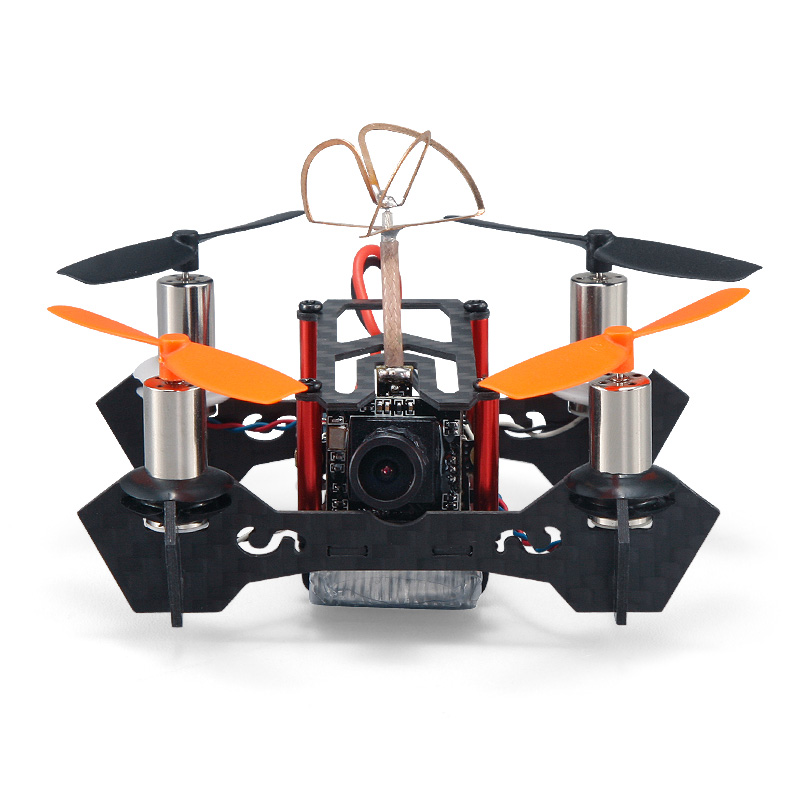

JJRC JJPRO-T2 85mm Micro Brush FPV Racing Quadcopter Based On Naze32 DSM2 Brushed Flight Controller
User Manual, Please select Download
JJPRO-T2 85mm Wheelbase
Description:
Brand name: JJPRO-T2
Wheelbase:85mm
Battery: 3.7V 600mah 30C lithium battery
Frame kit: (including aluminum post,screw,motor coil)
Material: pure carbon fiber
Bottom plate thickness: 1.5mm
Upper plate thickness: 1mm
MD8520 Coreless Motor:
Long diameter (without motor shaft): 20mm
Wide diameter: 8.5 mm
Weight: 4.8 g
Naze32 DSM2 brushed flight controller (integrated board):
Using 32-bit ARM microprocessor, working in 3.3V / 72MHZ
With gyroscope, support manual mode, horizontal mode
Firmware upgrades and tuning can be performed via Micro-USB There are Baseflight-Configurator and Cleanflight-Configuration
Camera: FOV150 °, 170 ° diagonal viewing angle
NTSC / PAL system can be a key switch
Operating voltage: 3.6-5.5V
CMOS 1/3 sensor. Video image performance Imaging parameters and wide angle for FPV rigorous debugging
5.8G 40CH AIO FPV CAMERA
Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 12-14dB
Operating voltage: 3.6-5.5V
Audio carrier: 6.5MHz
Weight: 6.8 g
Channel: 40ch (Frequency channels list, please refer to the product specification)
Features:
1.Use immediately, do not assemble and debug
1.Use immediately, do not assemble and debug
2.Open – source flight control can be adjusted according to the player 's personal preferences from the stable, semi – self – stability, convenient to different levels of players manually
3. According to the race standard RaceBand VTX CAM 40 channel transmitter, Cmos 1/3 800Tvl high-definition camera, NTSC / PAL system can be a key switch
Package included:
1x Bracket(aluminum post,screw,motor coil)
1x Naze32 DSM2 brush control(Integration builds)
1x 5.8G Cmos 800Tvl 40CH 25MW FPV Camera
4x 8.5*20 motor
2x Propeller(6 pieces)
1x 3.7V 600Mah 30C lithium battery
1x USB direct charging head
1x Spanners
4x motor coil
1x Attaching plug
1x Color box packing(including specifications)
