Description

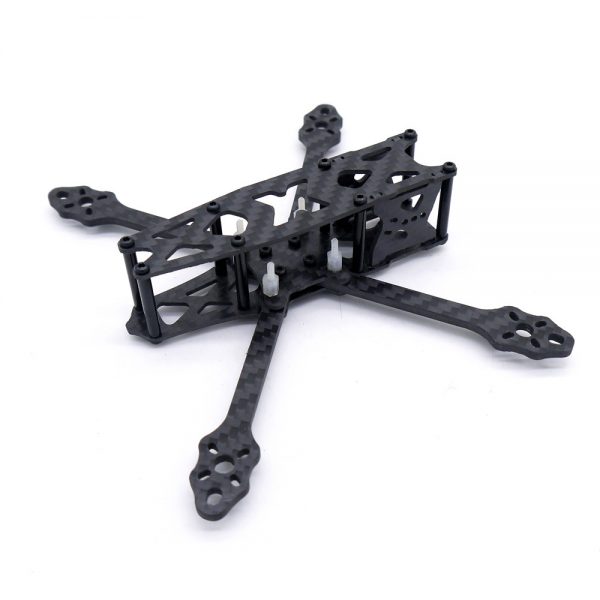

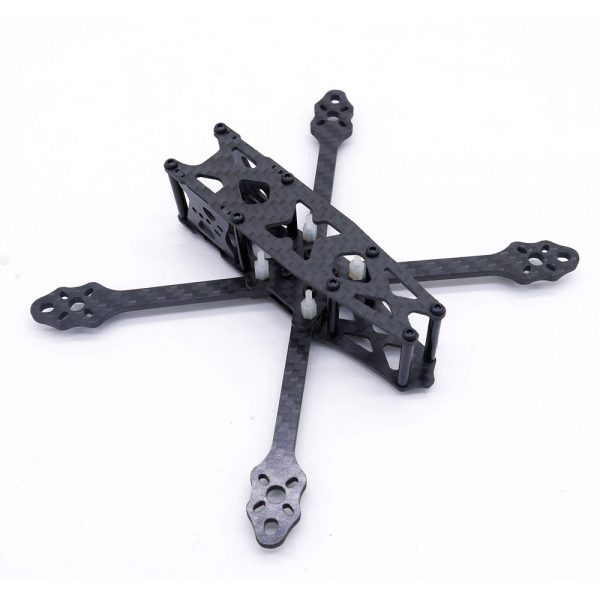

JHY 3 140mm Wheelbase 3mm Arm Thickness Carbon Fiber 3 Inch Frame Kit for RC Drone FPV Racing
Specification:
Model: JHY 3
Item Name: 140mm Wheelbase 3 Inch Racing Frame Kit
Wheelbase: 140mm
Upper Plate Thickness: 1.5mm
Arm Plate Thickness: 3mm
Bottom Plate Thickness: 1.5mm
The height of standoff: 23mm
Weight: 30g
Recommend Parts:
Flight Controller: 20x20mm F3 / F4 Flight Controller
Brushless ESC: 12-30A 4in1 ESC
Brushless Motor: 13xx , 14xx series Motor ( 9×12)
Propeller: 3 Inch Propeller
FPV Camera: Runcam Micro Swift Camera
Lipo Battery: 3S 550mAh- 4S 850mAh Lipo Battery
The following parts are compatible:
FC & ESC & VTX Stack:
20x20mm Geprc Stable F4 Stack 20A BL_S ESC & F4 FC & 48CH VTX
Brushless Motor: Gemfan 1105-7500KV 2-4S Brushless Motor
Propeller: 10 Pairs LDARC 3045 3 Inch 3-Blade Propeller CW & CCW
FPV Camera: RunCam Micro Swift 2 600TVL 1/3 OSD CCD FPV Camera
Lipo Battery: Gaoneng GNB 11.1V 550mAh 80/160C 3S Lipo Battery XT30 Plug
Package Included:
1x JHY 3 140mm Frame Kit
