Description
JHEMCU MINI DC-DC BEC 2-6S 5V 3A/ 12V 2A Step Down Module for RC Drone FPV Racing
Specification:
Item name: JHEMCU MINI DC-DC step down module
Input voltage: 2-6S(5-30V)
Output voltage: 5V±0.1V/ 12V±0.1V (default 5V)
Output current: 2.5A (MAX), 12V 2A (MAX)
Conversion efficiency: 90%
Size: 17*11*4mm
Weight: 0.7g
2-3S input, output 5V 3A;
4S input, output 5V 2.5A;
5-6S input, output 5V 1.5A.
2-3S input, output 12V 2.5A;
4-6S input, output 5V 2A.
Notes:
1. the output current is related to the level of the input voltage and the temperature of module heating.

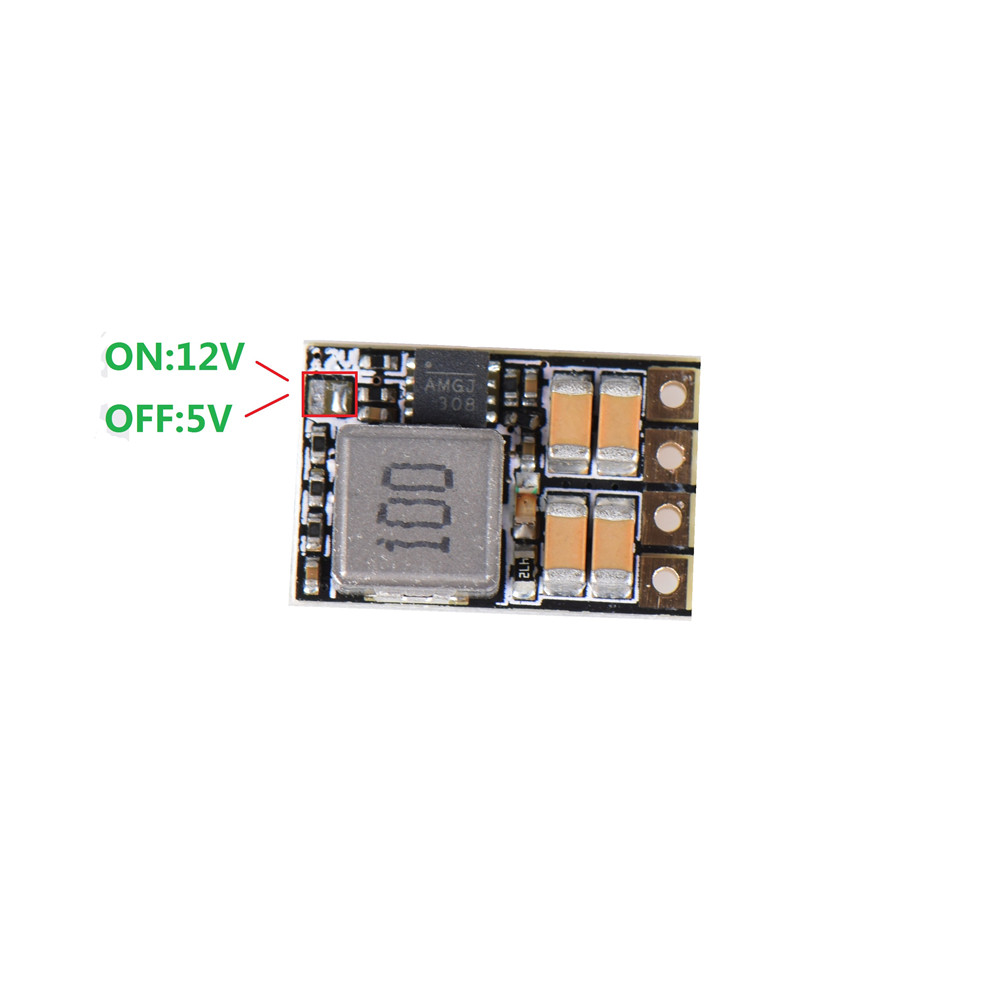

2. if you want to output 12V, input voltage have to more than 12V, and solder to 12V ports.
Package included:
1x JHEMCU MINI DC-DC step down module
