JHEMCU 30.5×30.5mm Dual Gyro F7 Flight Controller AIO OSD 5V 8V BEC & Black Box for RC Drone FPV Racing

$24.00

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

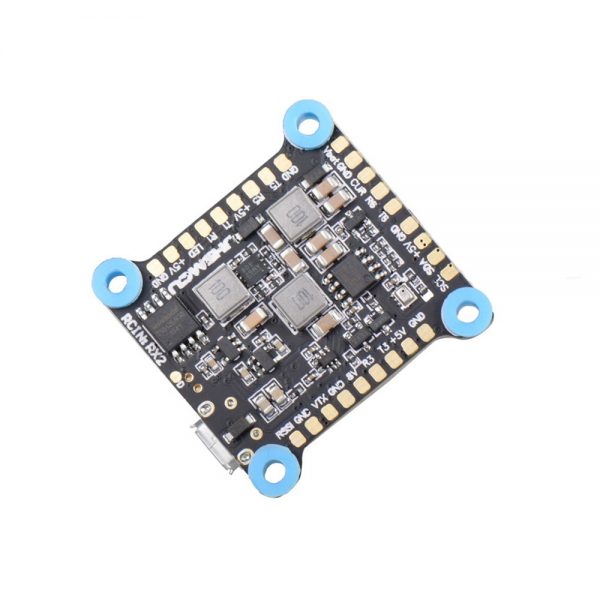

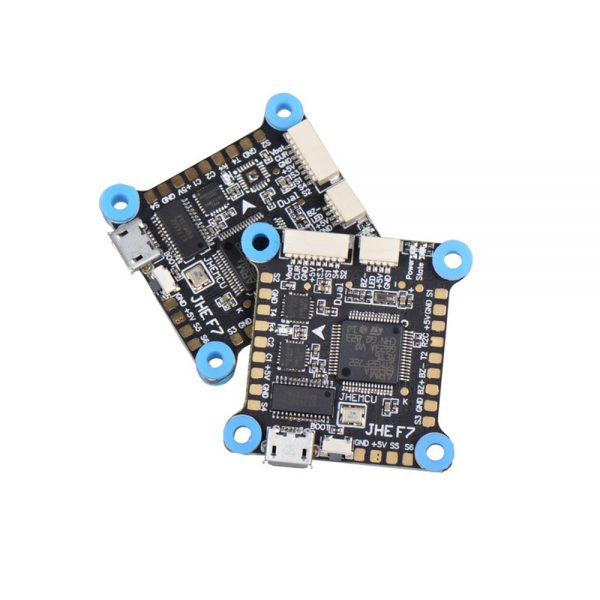

JHEMCU 30.5×30.5mm Dual Gyro F7 Flight Controller AIO OSD 5V 8V BEC & Black Box for RC Drone FPV Racing

Specification:
Brand Name: JHEMCU
Item Name: Dual Gyro F7 Flight Controller AIO OSD BEC
Optional Version: Acro Version ( Without Barometer & Blackbox & MPU6000)
                              Deluxe Version ( With Barometer & Blackbox)

Input Voltage: 2-6S Lipo

MCU: STM32F722RET6 216MHz
IMU: MPU6000 & ICM20689, Dual Gyros (SPI) ;
         ACRO Version Don't support MPU6000
Baro: BMP280 ( ONLY Deluxe Version Having)
OSD: AT7456E (SPI)
Blackbox:16MB ( ONLY Deluxe Version Having)
BEC 1 : 5V 2A ( for LED, Buzzer, Receiver etc.)
BEC 2: 8V 3A  ( for Camera, VTX, open/close it by USER2)
UART Series: 6 UARTS  ( UART1-UART6)
Support Dual Camera Input ( C1, C2 for Video Input; C1 in default, can switch by USER1)
Firemware: BetaFlight
Target: JHEF7DUAL.HEX
Size: 36x46mm
Mounting Hole: 30.5×30.5mm
Weight: 7.5g
Package Included:
1x F7 Flight Controller Board
4x M3 Anti-vibration Standoff
