Description

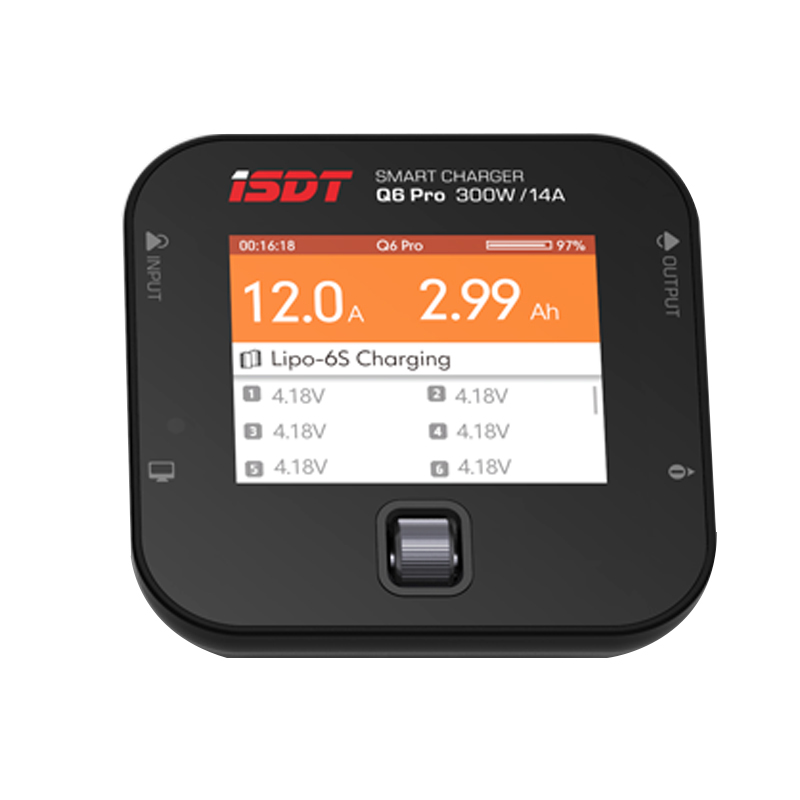

Specification of ISDT Q6 PRO:
Input Voltage: DC 7-32V
Output Voltage: 0-30V
Charge Current: 0.1-14.0A
Discharge Current: 0.1-3.0A
Max Charge Capacity: 300W
Max Discharge Capacity: 8W
Balancing Current: 1A/cell
Balance Cells: 2-6S
Supported Batt. Type:
LiFe/Lilon/LiPo/LiHv (1-6S)
NiMH/Cd(1-16S)
Pb(1-12S)
BattGO Support Smart Battery:Output support
Display: 2.4〃320×240 IPS LCD
Operating Temperature: 0-40°C
Storage Temperature: -20-60°C
Dimensions: 80x80x33.5 mm
Weight: 119g

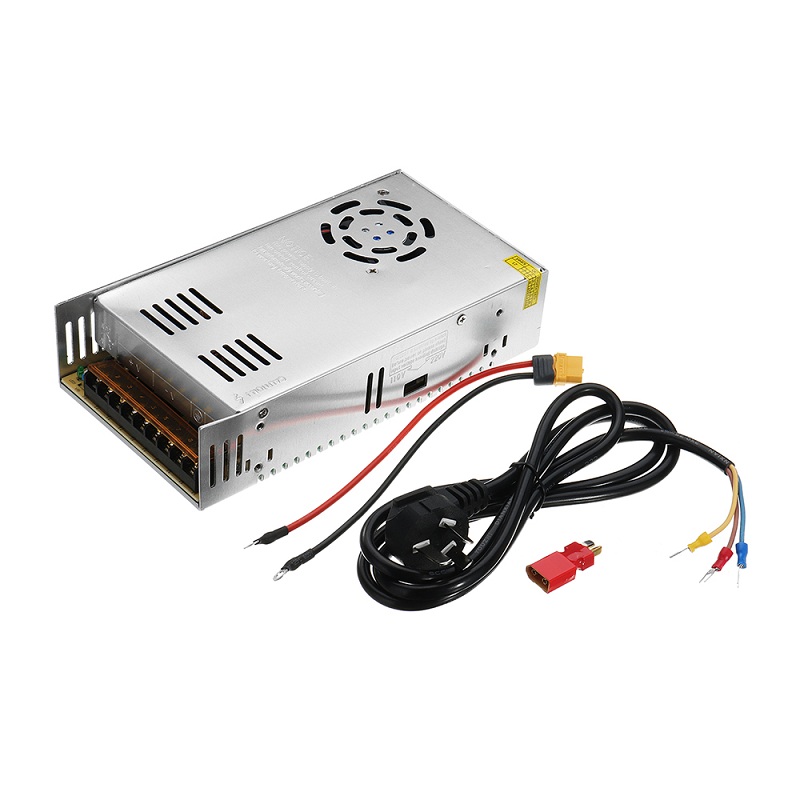

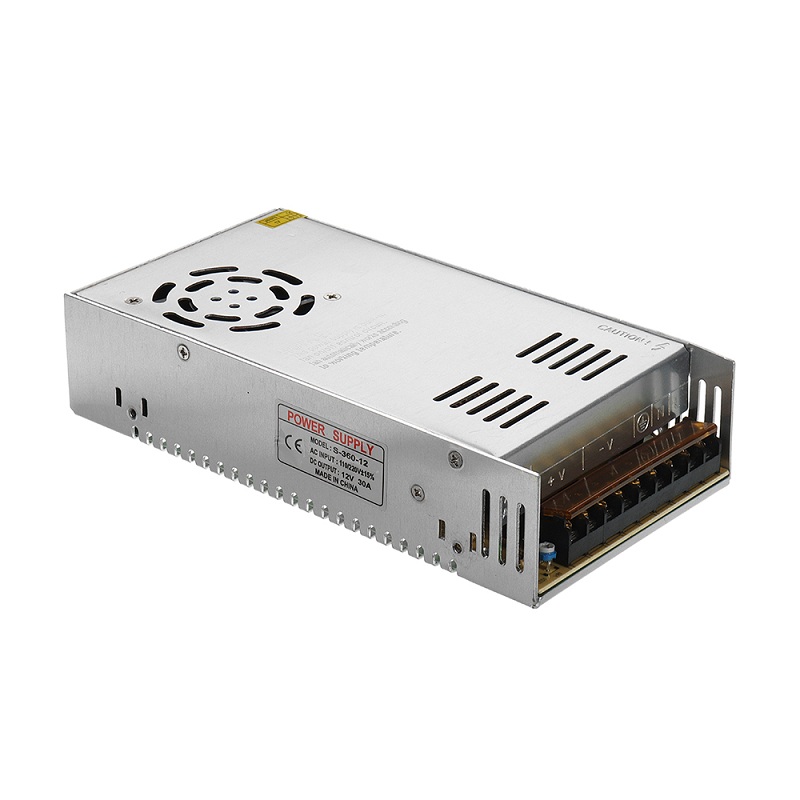

Specification of Power Supply:
Input: AC 100V-220V 50Hz
Output: DC 12V25A
Output Power: 300W
Efficiency: >75%
Working Temp: -25℃-50℃
Working Humidity:< 85%
Size:50X110X198mm
Weight: 680g
Apply for: ISDT Q6 Plus Q6 Pro
Protection: Shortage Protection, Overload Protection, Over Voltage Protection
Feature:
1.Double up the power capacity, and lighter.New ISDT Q6 Pro with rounded edge design easily stows in bag or pocket. Same size as the SC-608 charger with twice the power capacity.
2.The ISDT Q6 Pro come with 2.4″ IPS Display,up to 178° visible angle, auto-brightness screen, still visible under strong sunlight.
3.Highly optimized internal construction with higher cooling efficiency.Higher speed and efficiency synchronous Digital Power Supply Technology.High speed ball-bearing fan promotes active cooling increase by 300%, even though the size has been reduced by 50%.
4.The ISDT Q6 Pro have ARM 32bit high speed Processor, Outstanding performance from every perspective.
5.After the depth of optimization SCOS,Instant Boot, only a few seconds.
6.One key metal shuttle control replaces the multi-button press operation, makes charging with the Q6+ a delightful experience.
7.Third Generation Smart Balance Charger,Increased accuracy, with slight charging voltage adjustment capability.
8.The ISDT Q6 Pro comes in a variety of languages to suit your needs.
Packaging Included:
1X ISDT Q6 Pro
1X Power Supply
