Description
Description:
Input Voltage: DC 7-32V
Output Voltage: 0-30V
Charge Current: 0.1-14.0A
Discharge Current: 0.1-3.0A
Max Charge Capacity: 300W
Max Discharge Capacity: 8W
Balancing Current: 1A/cell
Balance Cells: 2-6S
Supported Batt. Type:
LiFe/Lilon/LiPo/LiHv (1-6S)
NiMH/Cd(1-16S)
Pb(1-12S)
BattGO Support Smart Battery:Output support
Display: 2.4〃320×240 IPS LCD
Operating Temperature: 0-40°C
Storage Temperature: -20-60°C
Dimensions: 80x80x33.5 mm
Weight: 119g
Feature:
1.Double up the power capacity, and lighter.New ISDT Q6 Pro with rounded edge design easily stows in bag or pocket. Same size as the SC-608 charger with twice the power capacity.

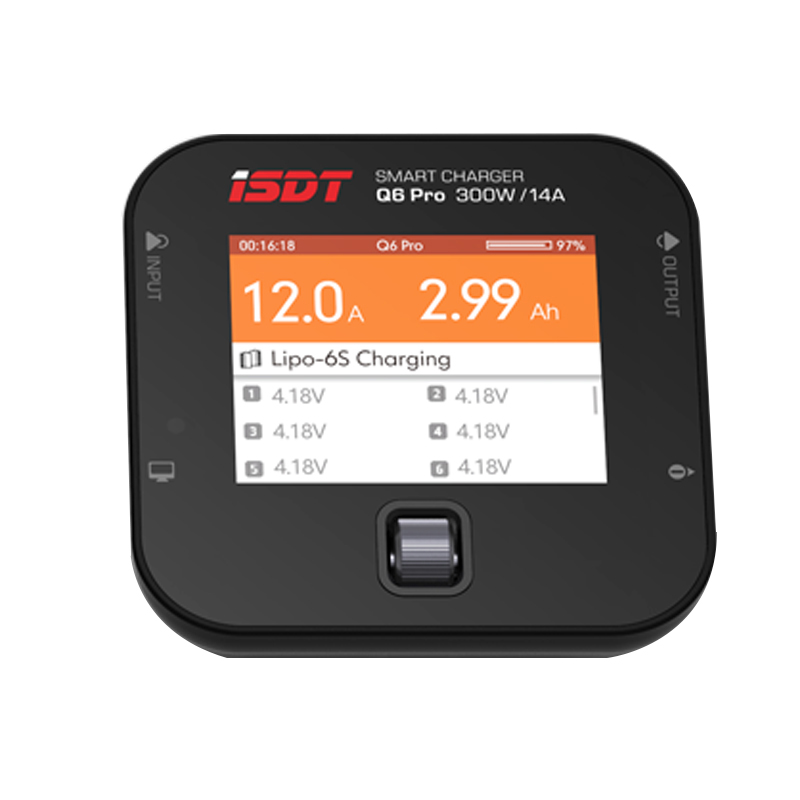

2.The ISDT Q6 Pro come with 2.4″ IPS Display,up to 178° visible angle, auto-brightness screen, still visible under strong sunlight.
3.Highly optimized internal construction with higher cooling efficiency.Higher speed and efficiency synchronous Digital Power Supply Technology.High speed ball-bearing fan promotes active cooling increase by 300%, even though the size has been reduced by 50%.
4.The ISDT Q6 Pro have ARM 32bit high speed Processor, Outstanding performance from every perspective.
5.After the depth of optimization SCOS,Instant Boot, only a few seconds.
6.One key metal shuttle control replaces the multi-button press operation, makes charging with the Q6+ a delightful experience.
7.Third Generation Smart Balance Charger,Increased accuracy, with slight charging voltage adjustment capability.
8.The ISDT Q6 Pro comes in a variety of languages to suit your needs.
Note:
This charger do not with power cable, you need to prepare by yourself.
Batteries pose a SEVERE risk of fire if not properly handled.
Read Entire operation manual before using charger.
This unit may emit heat during use.
Only operate this device in a cool ventilated area away from flammable objects.
Failure to observe safety procedures may cause damages to property or injury.
Package included:
1x ISDT Q6 Pro BattGo Charger
1x Manual
