Description
ISDT FD-100 voltage adjust software, click here.
Note
The smaller the discharge current, the more accurate voltage for the battery.
There is no precise cut-off voltage for this discharger.
For example, it may stop discharge when battery get to the voltage between 3.85-3.95V.
Feature:
Support 2-8s 6-36v discharging with maximum 80W discharging capacity.
Automaticly cut off after finishing discharging,better protection for your battery.
Default discharge-end voltage can be adjusted by computer through sc-linker as well as working temperature and beeping sound.

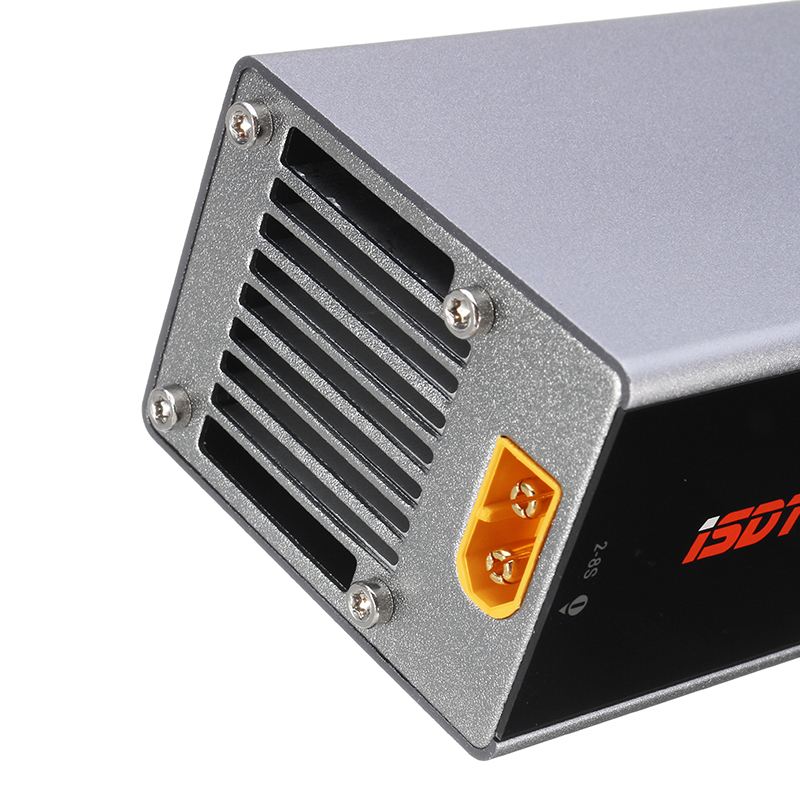

Use one of the most commonly used connector – XT60 as discharging port.

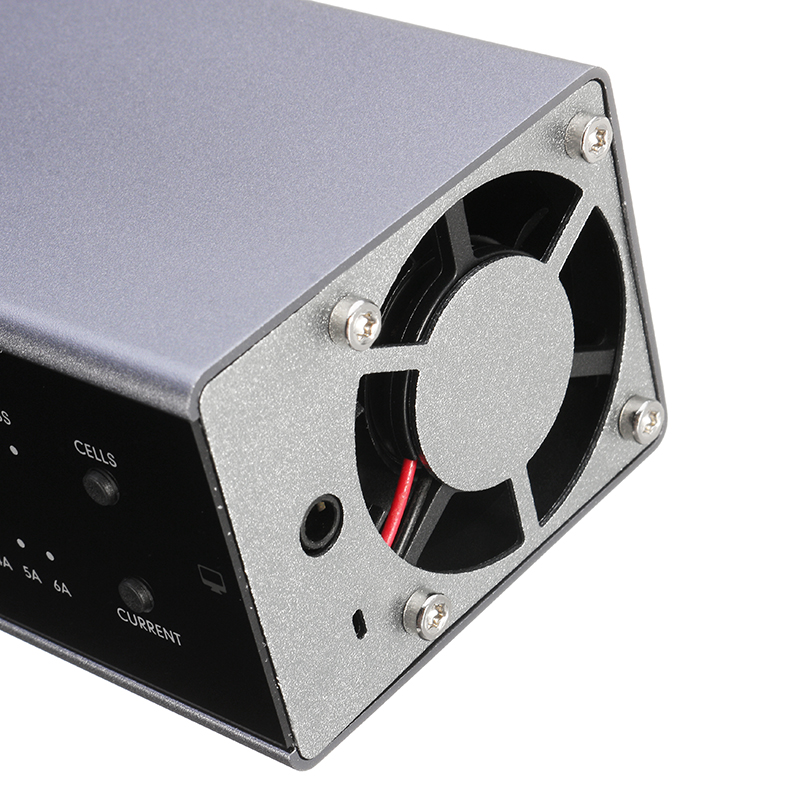

Industrial level high speed ball bearing fan with temperature control.
Efficient heat dissipation
Decription:
Dimension: 57mm x 120mm x 43mm
Weight: 295g
Minimum input voltage: 6V
Maximum input voltage: 36V
Battery cells: 2-8S
Auto cut off protection: Support
Abnormal voltage alarm: Support
Wrong cell setting alarm: Support
Beeper sound:80dB
Note:

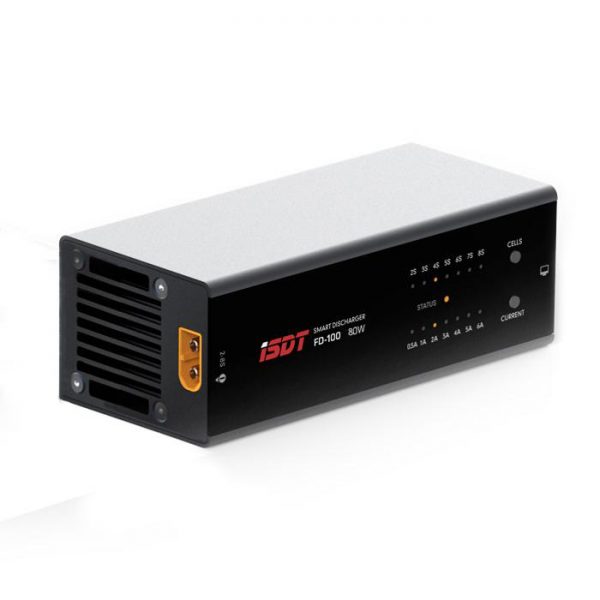

①Current setting ② Cells setting ③Indicator light
④Battery input port ⑤PC port ⑥Beeper
Package Included:
1 x ISDT FD-100 80W 6A discharger
,
,
