Description

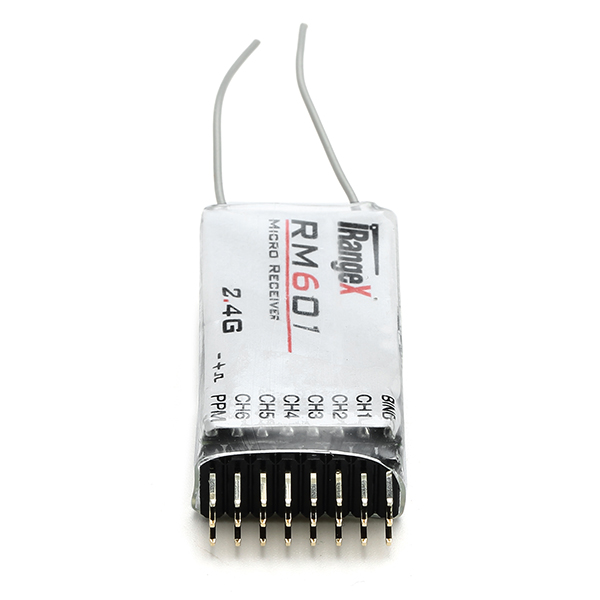

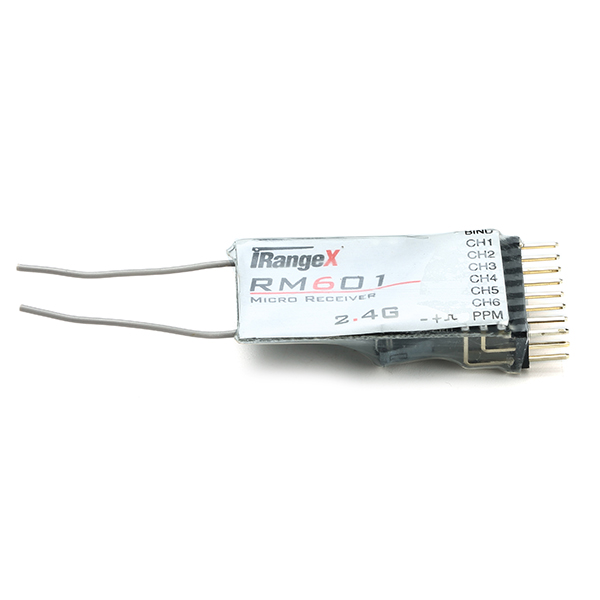

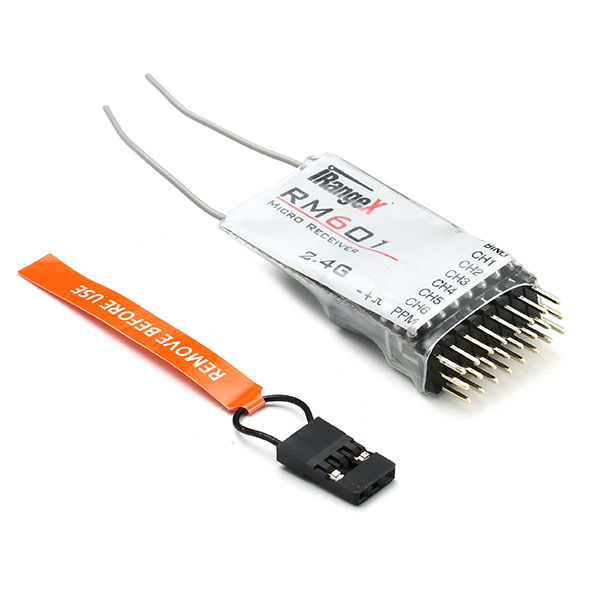

iRangeX RM601 2.4G 7CH Micro DSM2/DSMX Compatible Receiver With PPM Output
With Pin:
de-pinned:
Description:
Brand Name: iRangeX
Item Name: RM601 micro receiver
Model: With pin,de-pinned (optional)
Band: 2.4GHz
Channel: 6Channel+ PPM Port
Weight: About 4g
Dimensions (W x Lx H): 38 x 20×5 mm
Voltage Range: 4-10V
Brown-Out Voltage: 4.0v (Always supply power above this voltage)
Antenna Length Main RX: 3.5cm (2)
Remote Control Range: 1200m-1500m (tested with JR DSX9)
TX Compatibility (Spectrum and JR DSM2 /DSMX): DX6I,DX7,DX8, DSX7,DSX9 DSX11
Features:
Small and lightweight.
Servo Sync (feature does not work with module systems)
Preset failsafe system
Quick Connect
3.3- 10V high Working Voltage
Control range up to 1.5KM
Compatible with (Spectrum and JR DSM2 /DSMX) DX6I,DX7,DX8, DSX7,DSX9 DSX11 transmitter
English Manual, Click Here
1) This is not a Spektrum DSM2/X product, nor is it a copy of a Spektrum DSM2/X product. The Spektrum and DSM2/X brand is a trademark of Horizon Hobbies USA.
2) This is not an underground black market fake Spektrum product.
Package Included:
1x iRangeX RM601 receiver
