Description

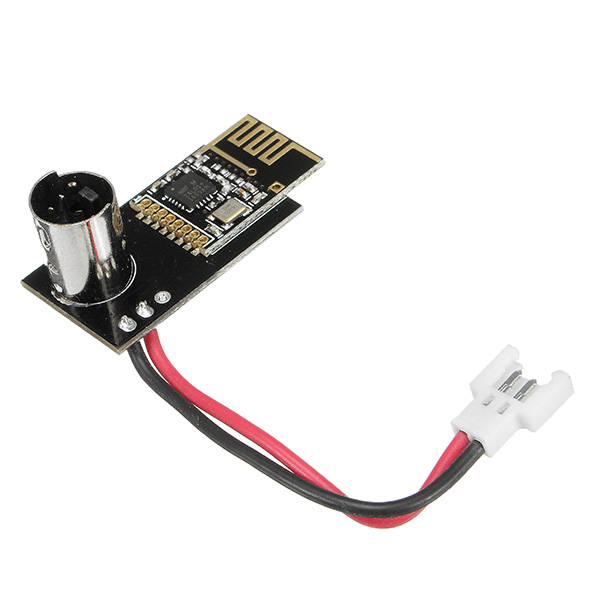

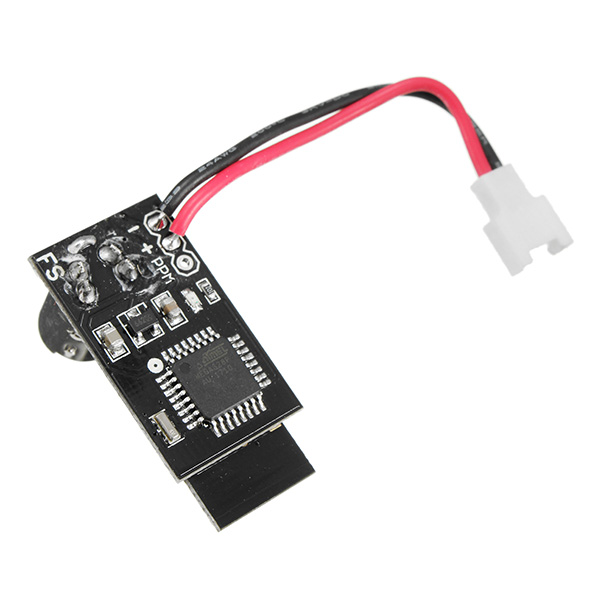

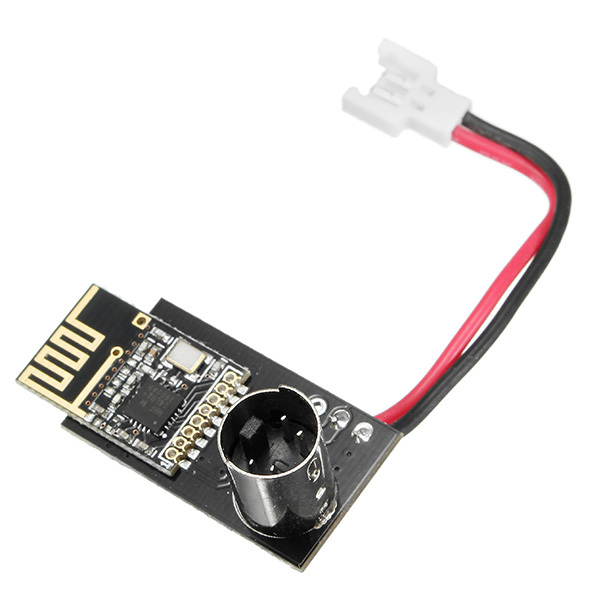

iRangeX iRX6 Multiprotocol TX Module for Flysky FS-i6 i6x Transmitter
This Multiprotocol TX Module is suitable for many brand's quadcopters,helicopters and airplanes .You can control RC quadcopters,RC helicopters or RC airplanes flexibility when you insert the TX Module to your Flysky transmitter. You will get many new ways to control the RC models .
Description:
Brand name: iRangeX
Item number: iRX6
Item name: Multi-protocol TX Module
Item number: iRX6
Item name: Multi-protocol TX Module
Signal frequency: 2400-2483.5Mhz
Controllable range: ≈100m
Input voltage: 3.7-4.2V (1S battery)
Supported remote controls: Flysky FS-i6 FS-i6X
Supported Remote control channel order: AETR
Supported brand: Cheerson, Syma, Wltoys, Eachine E010 (Most of these brand's quadcopters, helicopters and airplanes are compatible but not every model.Specific models please check instruction under the note)
Binding Procedure:
1. Creat a model in OpenTX using external module, 12 channels and AETR sequence order.
2. Turn off Transmitter.
3. Power up quad.
4. While holding the appropriate stick pattern listed below, power up Transmitter.
Note:
This Multiprotocol TX Module only supports remote control of AETR remote control channel order.
More instruction of Multiprotocol TX Module, please click here
Package included:
1X iRangeX iRX6 Multiprotocol TX Module
