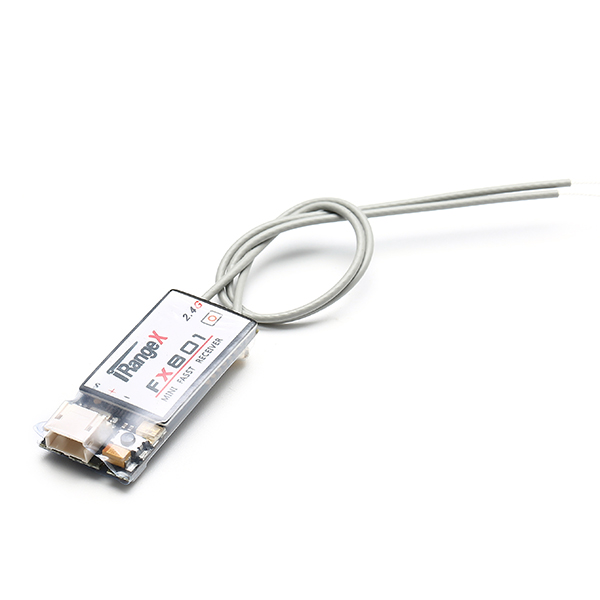

iRangeX FX801 FASST S.BUS CPPM Dual Antenna Compatible Mini Receiver for Futaba
Description:
Brand Name: iRangeX
Item No.: FX801
Item Name: Fasst Dual Antenna Compatible Receiver
Item Name: Fasst Dual Antenna Compatible Receiver
Channel: 8CH
Range: full range 400m+
Operating Current: 50mA max
Operating Voltage: 3.6 ~8.4V
Latency: S.BUS mode:14mS @ FASST multi-channel mode, 16mS @ FASST 7ch mode
CPPM mode: 21mS @ FASST multi-channel mode, 24mS @ FASST 7ch mode
Sensitivity: about -90dBm
Weight: about 3g
SIZE: L*W*H=30mm*14mm*3mm
Output mode: S.BUS or CPPM can be selected
Features:
S.BUS output can easily cooperate with any S.BUS support flight control system.
CPPM output support some CPPM input flight control system.
13.6mS latency under S.BUS output mode(default status), 20.4mS latency under CPPM output mode.
Up to 8 channels support.
Only 3g, compatible with all FASST FUTABA Transmitter
Dual antenna, more stable, more than twice the original, effective distance is 400 meters
With 4 custom lines for CC3D, NAZE32, F3 and other flight controller
Only 3g, compatible with all FASST FUTABA Transmitter
Dual antenna, more stable, more than twice the original, effective distance is 400 meters
With 4 custom lines for CC3D, NAZE32, F3 and other flight controller
Instruction Manual: Click Here
Package Included:
1x iRangeX FX801 Fasst S.BUS Dual Antenna Mini Receiver
4x cables
4x cables
