Description

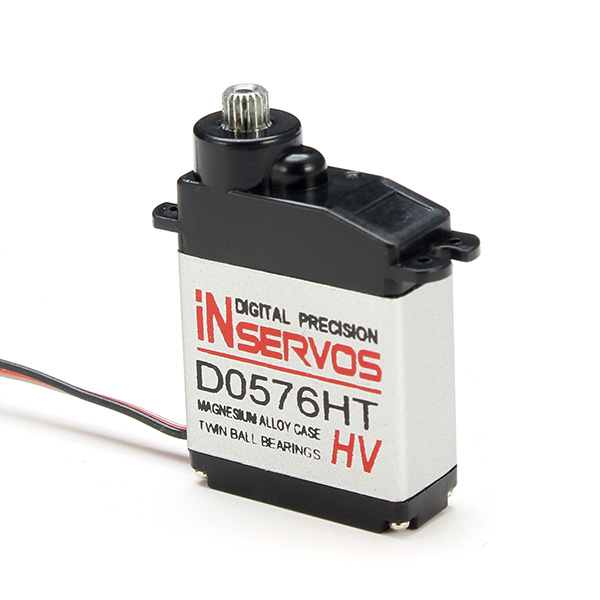

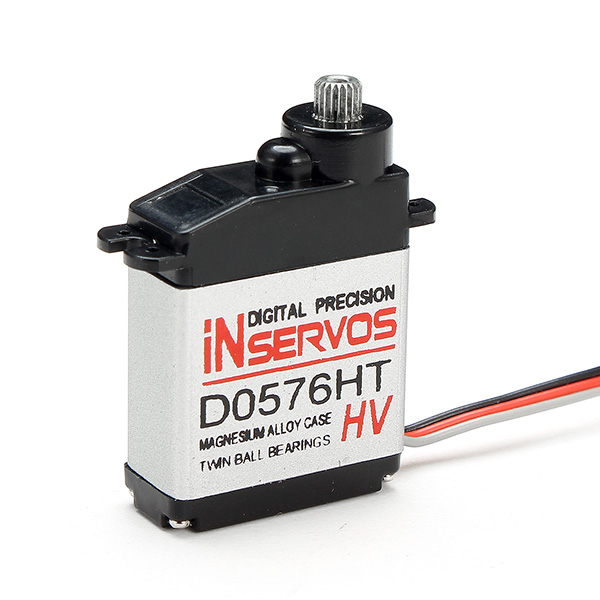

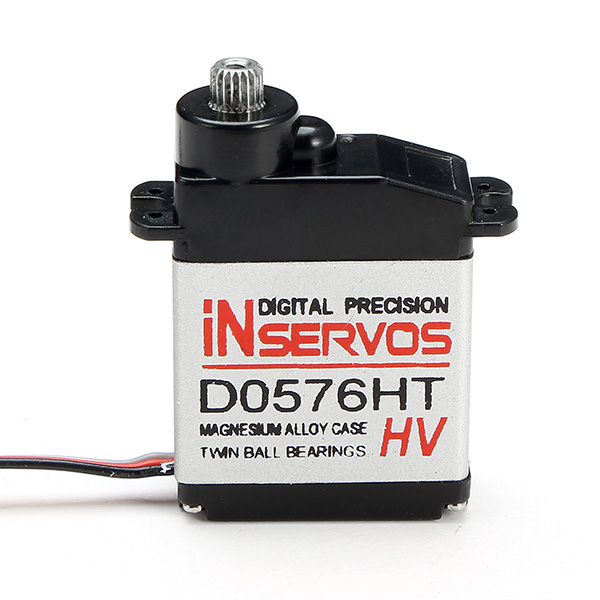

Micro servos brand of INSERVOS come with smart and programmable design, they are made with lightweight magnesium alloy center case, so cooling efficiency is higher. Also include 2 ball bearings to ensure a constant output torque from servos and smoother running.
Especially, they use the potentiometer with life span of 100,000 tiems and 360 degrees rotation to make servo with hi-precision and long life. Combined with complete metal gear set, servos offer superior torque and speed for their class. They are a new experience for more applications with model kits.
Description:
Name: Micro Servo
Brand: Inservos
Model: D0576HT-HV
Type: Programmable 12-Bit Resolution Digital Circuit
Working Frequency: 1520us/333Hz 900-2100us
Torque: 3.00kg.cm@6.0V 4.2kg.cm@7.4V
Speed: 0.069sec/60°@6.0V 0.056sec/60°@7.4V
Application: Aircraft wing.1.5-1.8M Gliders wing.park flyers.3D Helicopter Swash/Tail
Ball bearing: Twin ball bearings
Potentiometer: Rotate 360 degrees 100,000 times life
Motor: Φ7x16mm Coreless
Gear: All metal gears
Case: Lightweight Magnesium alloy center case
Size: 20.40*8.70*25.00mm(L*W*H)
Weight: 7.9g
Operating Voltage: DC4.5V-7.4V
Features:
* Lightest metal-magnesium alloy case. 1/3 lighter than aluminum, but cooling efficiency is higher.
* 100,000 tiems and 360 revolving potentiometer, high precision, long life.
* Intellingent can be programmed. Change the direction; Change the power of the servo(increase or reduce)
* Digital circuit. Fast response and excellent output performance.
* Double ball bearing. Torque output is more stable and smooth.
* 0716 Coreless motor powerful power.
* All metal gears.
Package included:
1 x Micro Servo D0576HT-HV

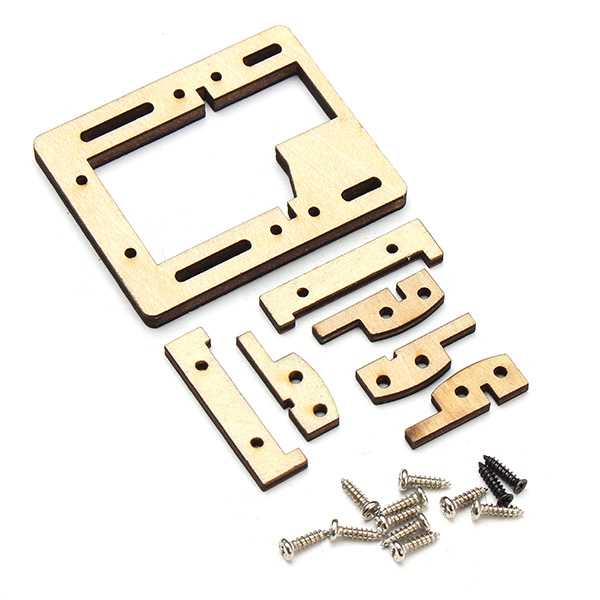

1 x Mounting brackets Set
1 x Gear Arm Set
1 x Screws Set
