Description
Inav F4 Flight Controller Standard/Deluxe Version Integrated OSD Buzzer W/Without GPS Airspeed For RC Airplane
Specifications:

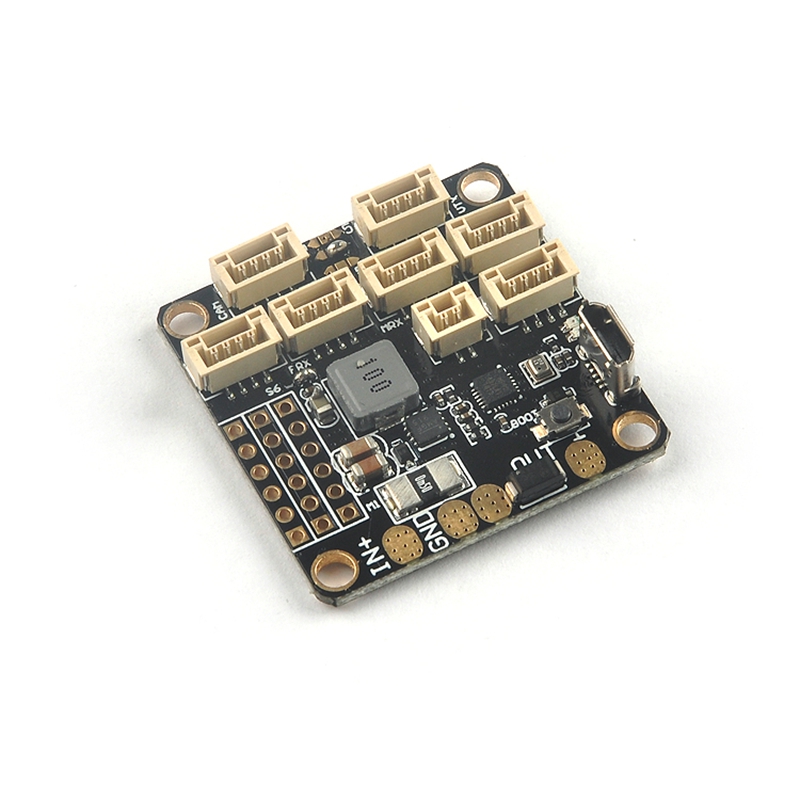

Item Name: Inav F4 flight controller
Input Voltage: 7.4V – 22.2V (2-6S Lipo)
Dimension: 38x38x13mm
Weight: 18g
Application: Use INAV firmware can work with all kinds of RC Airplane
Features:
Ultra High Performance MCU STM F4 Integrated Chip
High Performance MPU-9250 Gyroscope & Accelerometer
Incredibly Precise MPU-9250 Magnetometer
Altitude Control Capability via Integrated BMP280 Barometer
Anti Vibration via Integrated Silicone Soft Mount Dampers
Powerful 120A Integrated PDB
Integrated OSD
Support up to 6 UARTs
Built-in Buzzer port and AirSpeed port
Integrated Driver Inverter for SBUS and S.PORT connections
Built-in Battery Voltage and Current monitor
Camera and VTX port built-in Peripheral pass
Integrated 5V@3A BEC for small Digital servos, can be easily changed to External BEC for bigger Servos
Can be easily changed to Camera Voltage and vtx Voltage
Can be easily changed to RX Voltage
Support INAV firmware
Simplified & Ready with Plug & Play Functionality

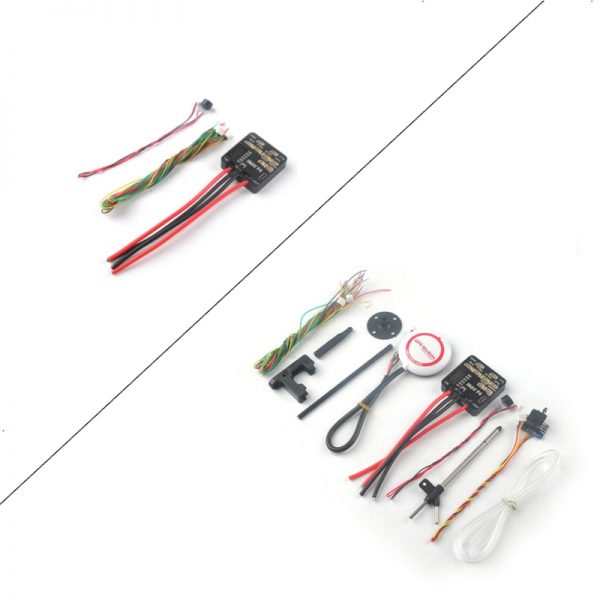

Standard Version Package Included:
1 x Inav F4 Flight controller
1 x CNC ALU Protect case
4 x 4Pin GH1.25 cables
1 x Buzzer

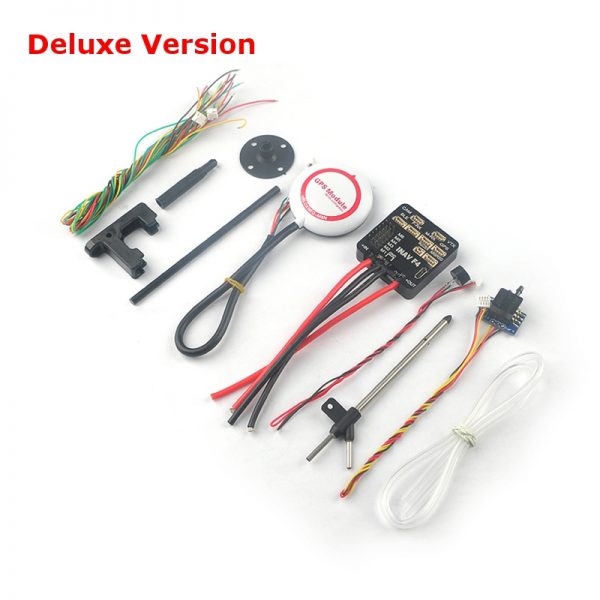

Deluxe Version Package Include:
1 x Inav F4 Flight controller
1 x CNC ALU Protect case
4 x 4Pin GH1.25 cables
1 x Buzzer
1 x GPS
1 x GPS Folding mounted holder

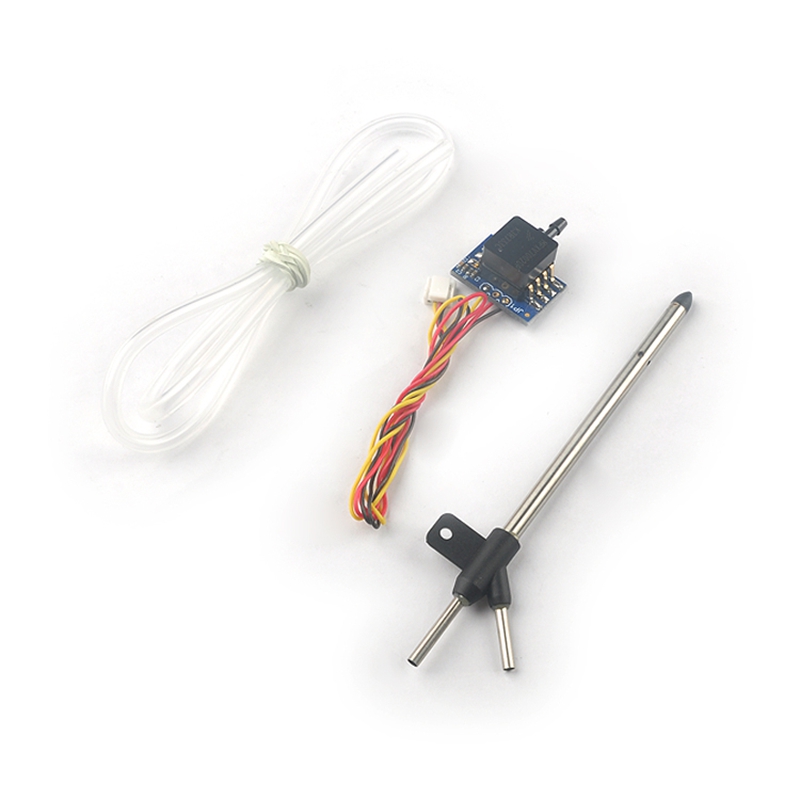

1 x Analog Airspeed sensor
1 x Pitot tube for Airspeed sensor
