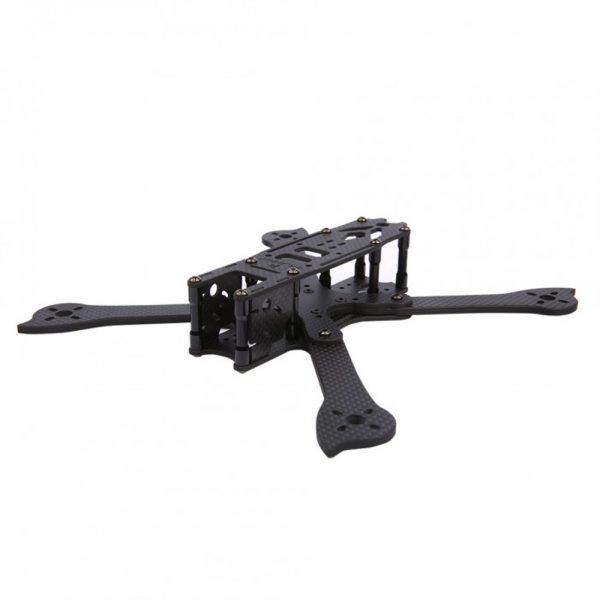

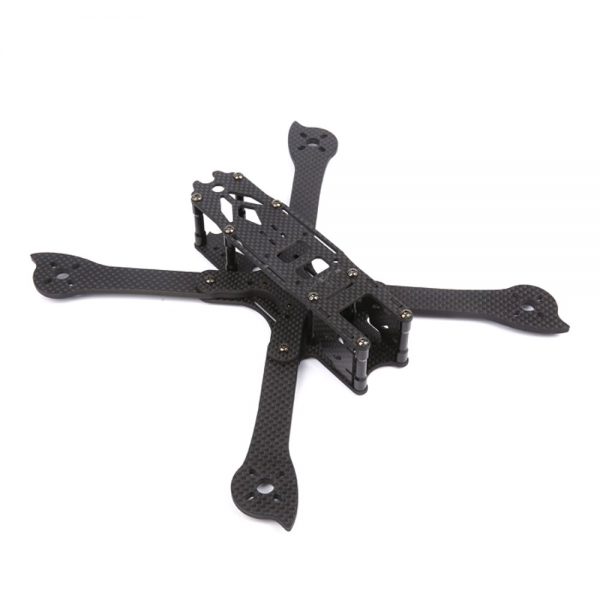

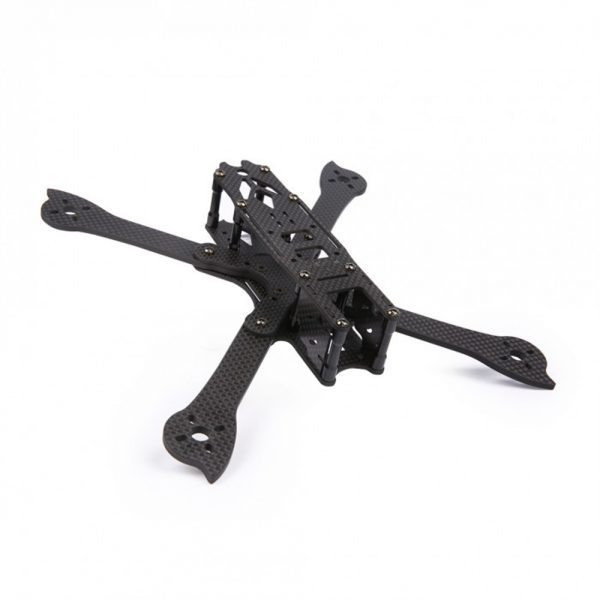

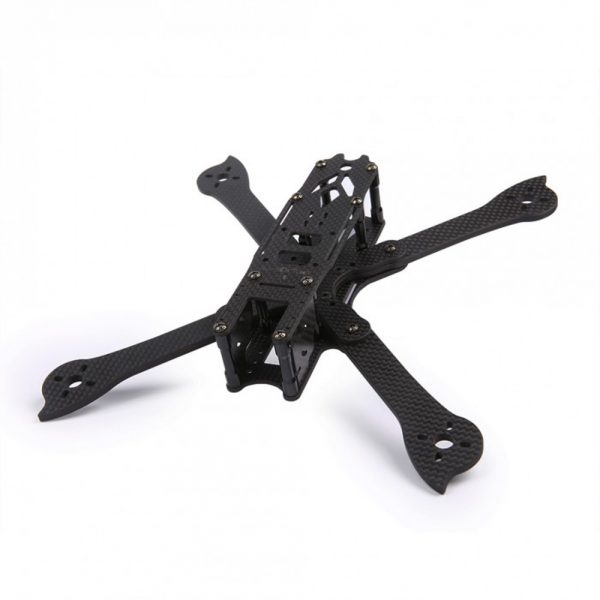

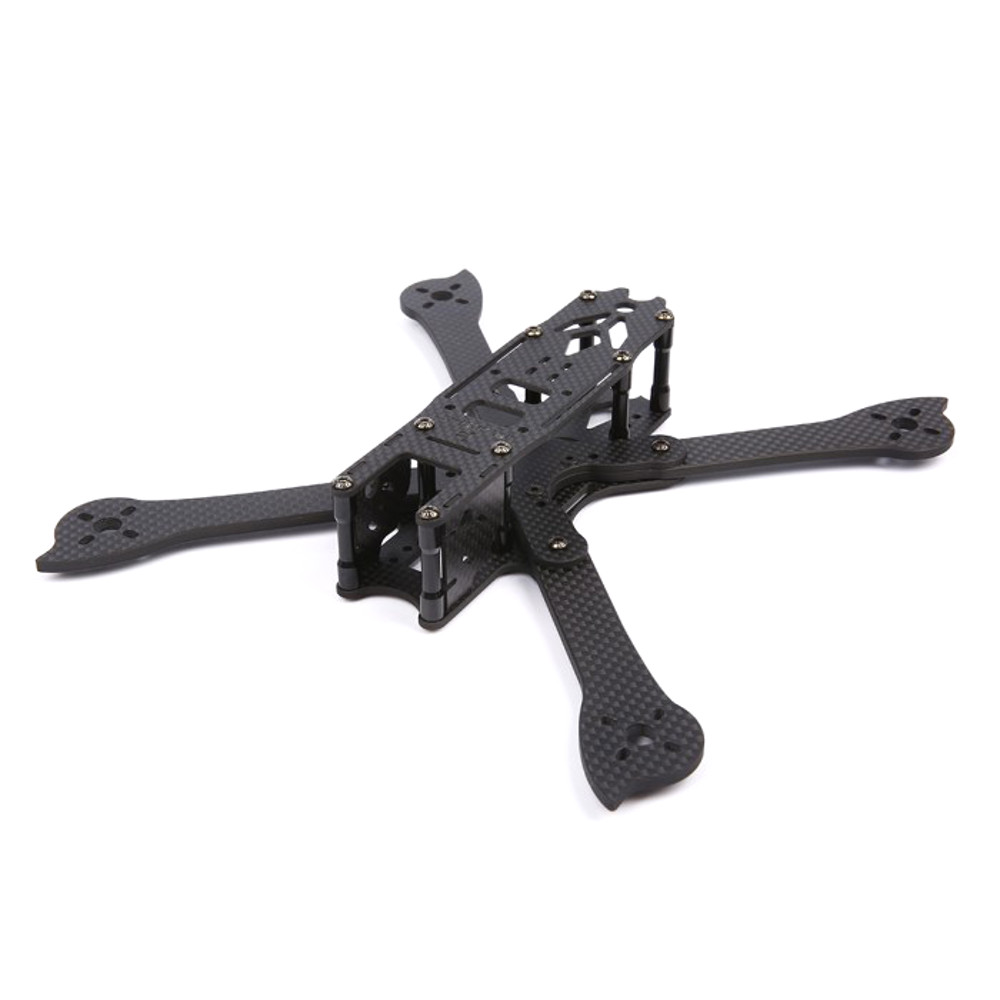

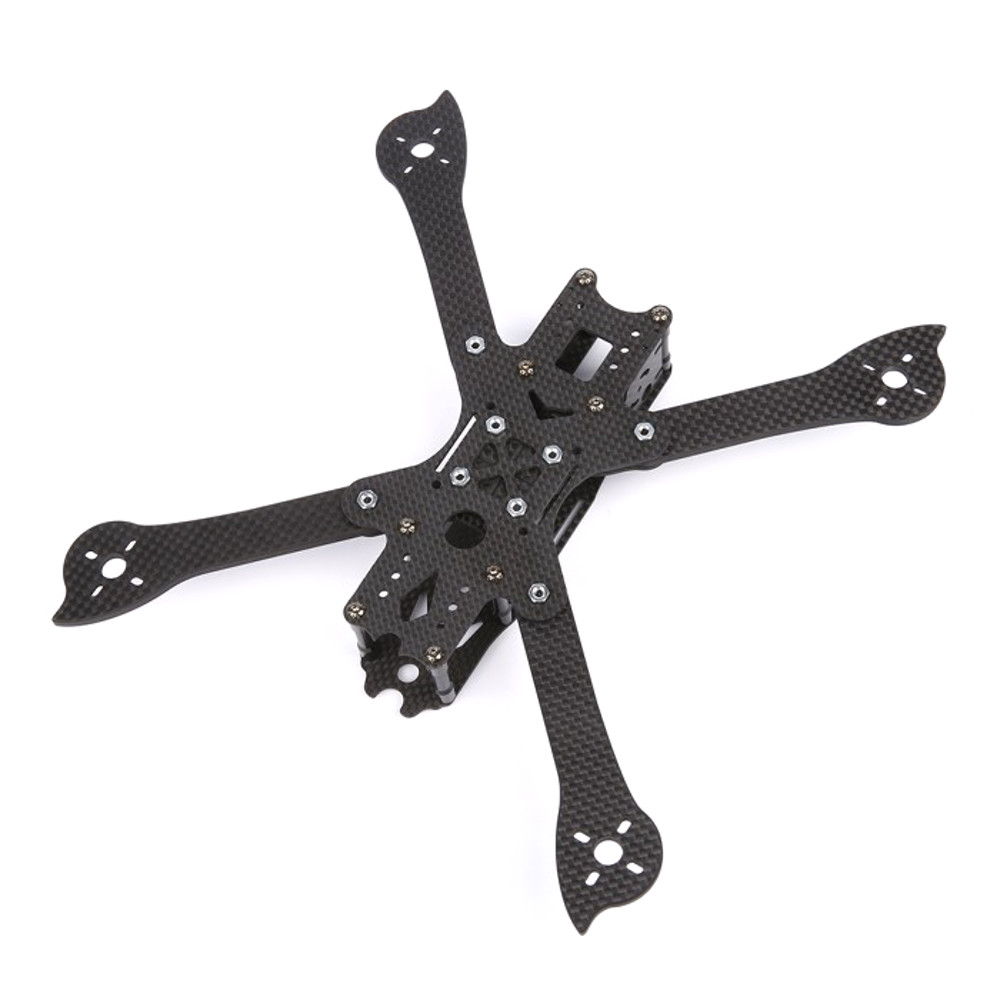

iFlight XL5 V3 True X 240mm Wheelbase Freestyle Carbon Fiber Frame Kit Arm 4mm for RC Drone
Specification:
Brand name: iFlight
Item name: XL5 V3 Frame Kit
– Frame wheelbase: 240mm
– Dimensions :170mm x 170mm(body dimension)

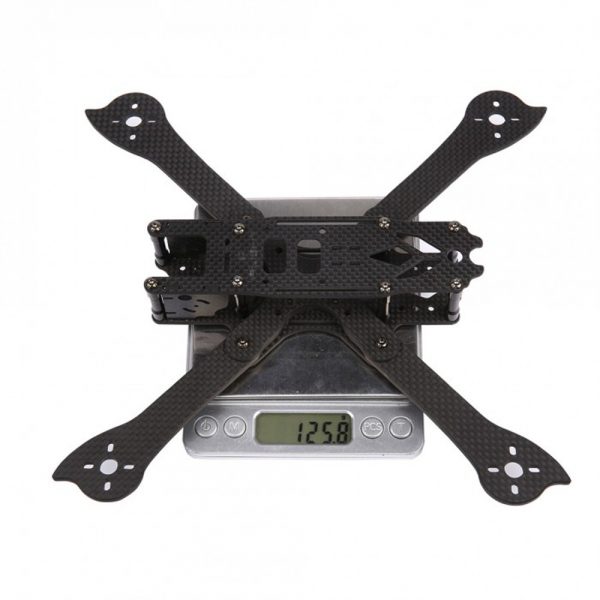

– Frame weight:126g approx
– Motor c-clip hole: 8mm
– Standoff Height: 30mm
– 4mm arms,1.5mm vertical side plates
– 2mm top,upper&bottom plate
– Mounting Holes: 30.5*30.5mm
– 30°to 80°ratcheting camera angle adjustment
Features:
– Chamfred Edge High quality Pure 3K carbon plate
– True X frame design
– Top mounted battery for optimal CG
– Adjustable camera placement
– Replaceable 4mm arms and plates
– 12.9 Grade nickel palted high quality screw hardware
– Compact design
Recommended parts(not included):
– Flight controller: RevoBee F4 Compatible controller
– Motor: iPower Ion,Force,Tachyon 2207,2306 Motor
– Propeller: 5061 5 inch propeller
– Camera: FPV cameras 28mm wide
– VTX: 600mW 48Ch Transmitter
– Battery: 4s Lipo battery
Package Included:
1 x XL5 V3 Frame Kit
