iFlight XING Camo Orange X2306 2306 1700KV 2450KV 2750KV Brushless Motor 2-4S For RC Drone FPV Racing Multi Rotor

Description:
Brand name: iFlight
Item name: XING Camo Orange X2306 Brushless Motor
KV: optional 1700KV 2450KV 2750KV
Configu-ration: 12N14P
Stator diamter: 23mm
Stator length: 6mm
Shaft diameter: 4mm
No.of cells(Lipo): 2-4S

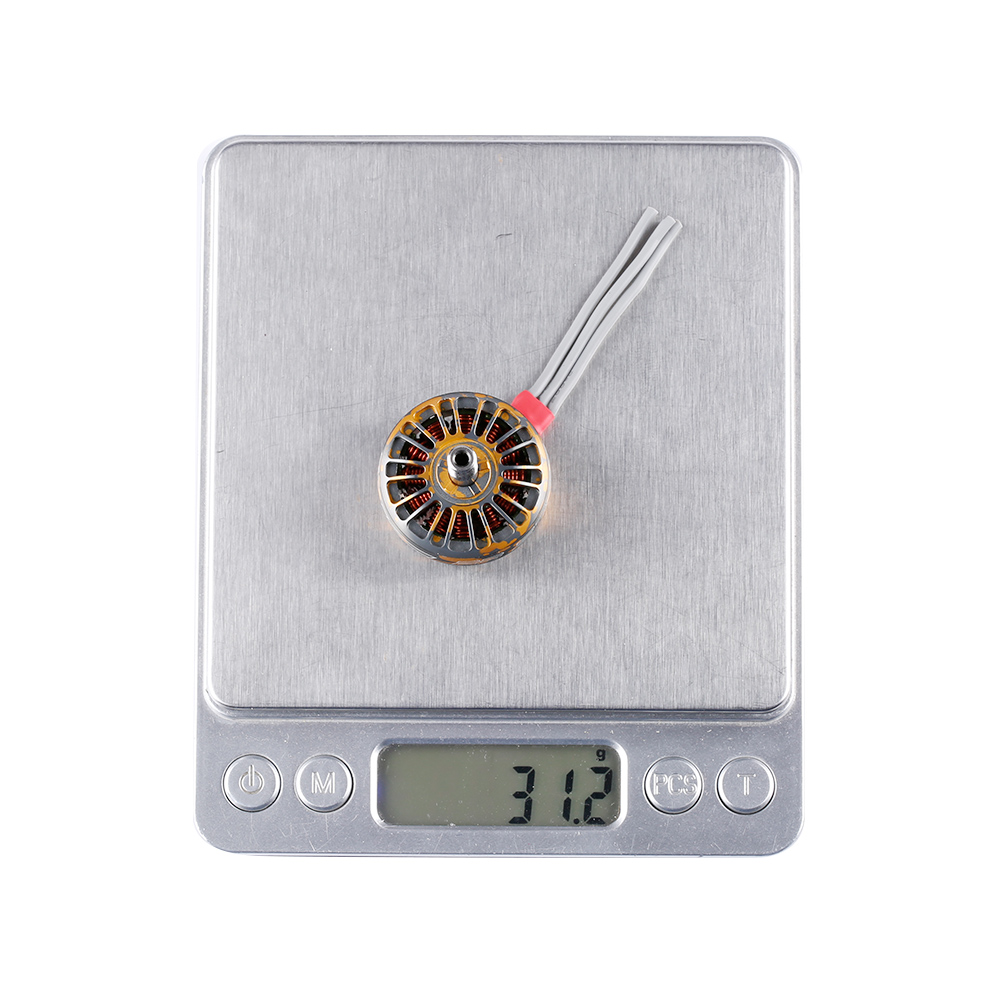

Weight: 31.2g (with wires)

Features:
Elliptical body, high-strength Titanium alloy shaft
Large heat dissipation holes design (15℃ reduced compared to same range motor)
Crush resistant damping bearing, eliminate vibration effectively
50%-80% optimal throttle output, best efficiency
160mm cable length for different frames and setups
CNC high-precision machining 7075 aluminum Bell and Base
220℃ Heat-Resistant Copper Wire, Solid Wire Winding
Electromagnetically matched magnets and stator
Japanese 1200 Iron Core
N52H High-temperature magnets
Motor wire protected
Hex bolt shaft set screw
Dynamically balanced

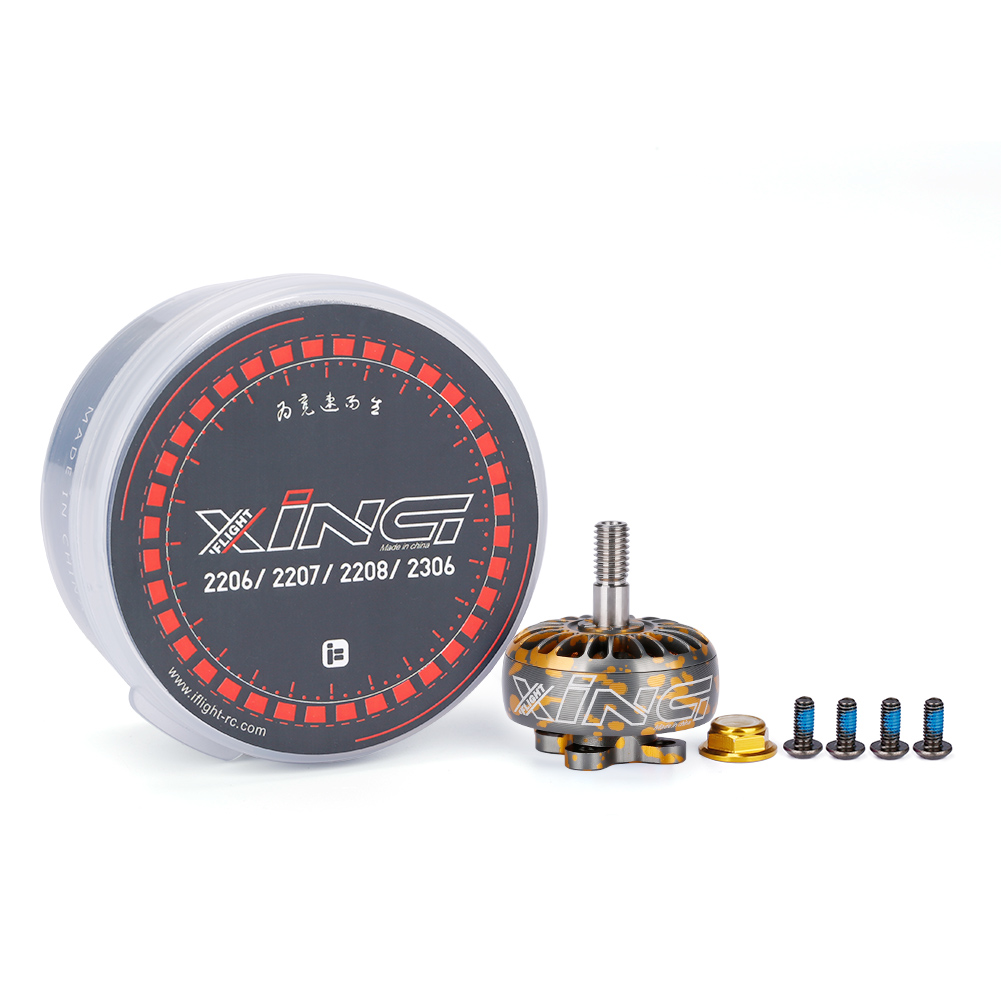

Package Included:
1 x XING Camo Orange X2306 Brushless Motor
