Description

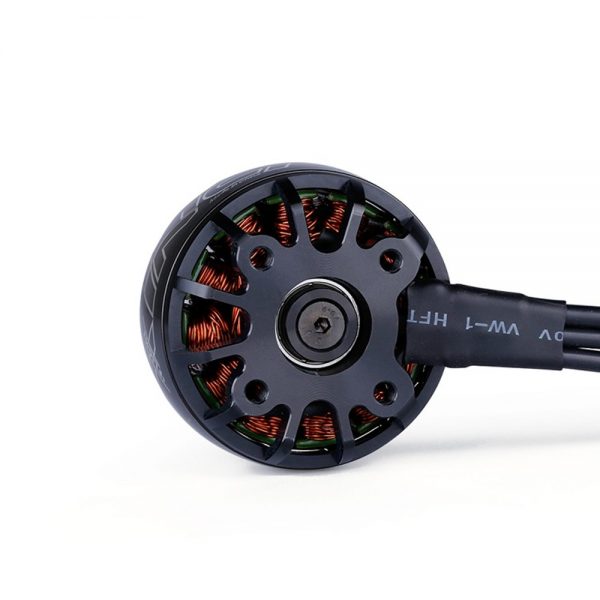

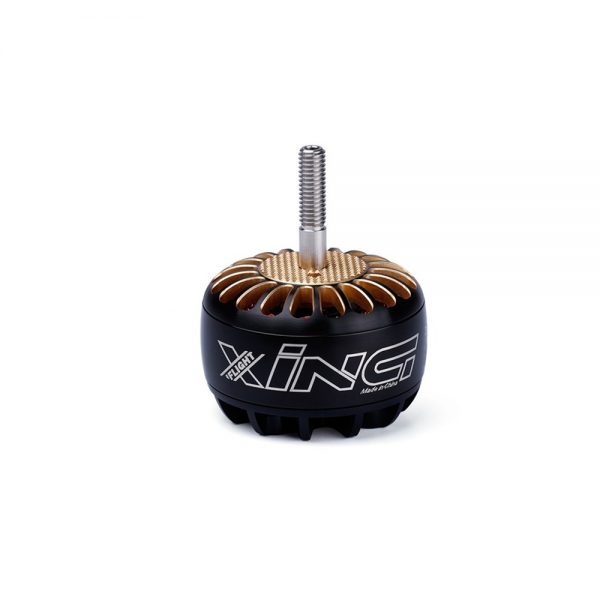

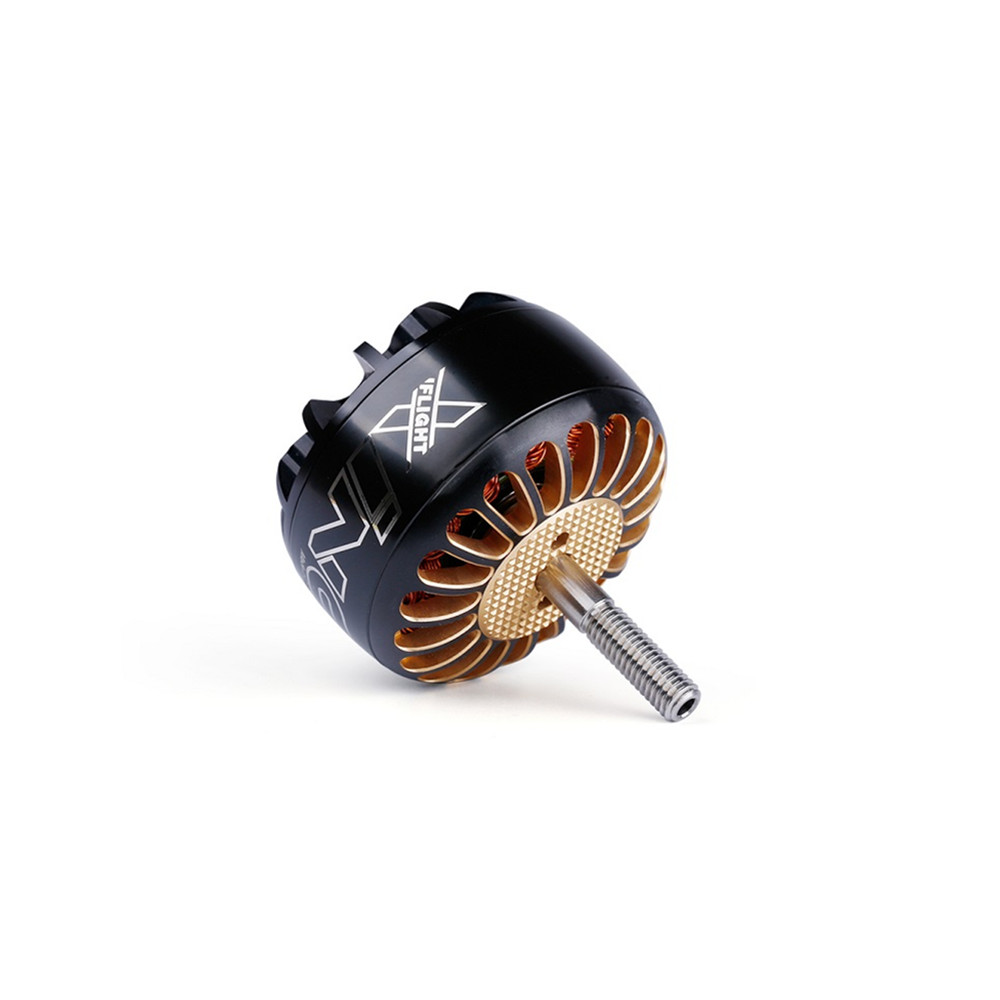

iFlight XING 4214 3-6S X-CLASS 400KV 660KV Brushless Motor for RC Drone FPV Racing
Description:

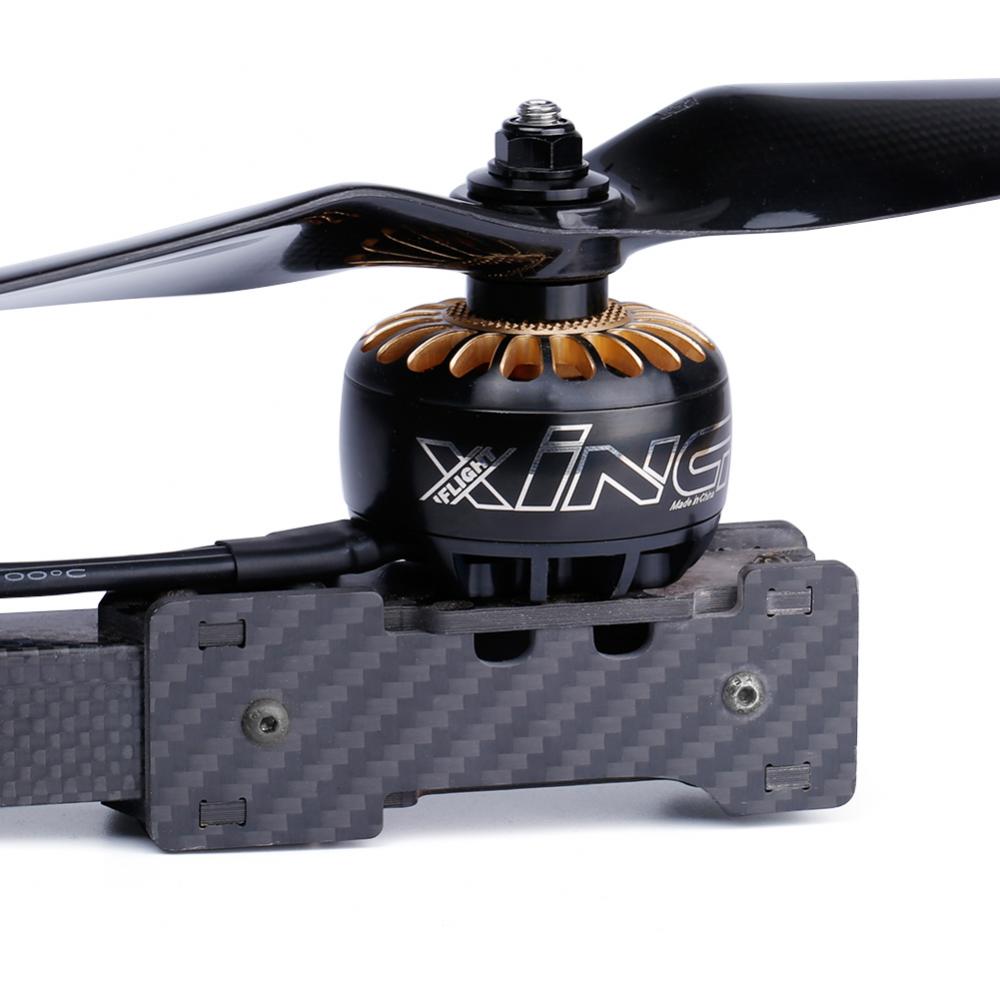

The iFlight XING 4214 motor is designed to provide responsive power with a low KV. It is perfect for 6S 15" X-Class racing drone like iX15! Named after and inspired by the XING series motor, matching its smooth and aggressive flying style, this motor comes with a solid stator & Pac'ific copper wires in combination with N45SH magnets & very small air ga'p. EZO bearings provide a silky smooth flight. All these results in unbelievable flight performance and experience!
Anti-slip aluminum bell, 420 stainless steel 26.5mm (outer length) Φ6mm shaft & M6 hex nut enables most propellers on market easy to install and remove on 4214. Pre-tinned 800mm wires and 4mm threaded holes in 30*30mm pattern on the back plate apply to most X-Class frames on market. The hollowed-out lightweight base increases cooling and efficiency.
All in all, the new iFlight XING 4214 is definitely the first choice for X-Class racing!
Specification:
– Name iFlight XING 4214
– KV: 400KV/660KV
– Structure: 12N14P
– Stator diameter: 42mm
– Stator length: 14mm
– Shaft diameter: 6mm
– Motor size: φ50*33mm
– Magnet: N45SH
– Bearing: EZO
– Cable: 14AWG,800mm
Features:
* Specially designed for X-Class Racing
* Oxidation-Color 7075 T6 milled aluminum Bell and Base
* 420 stainless steel
* Japanese Kawasaki 1200 Iron Core
* Solid Pacific 220℃ Heat-Resistant Copper Wire & Winding
* Long life Japanese EZO bearings
* N45SH High-temperature tegular magnets, small air gap
* Electromagnetically matched magnets and stator
* Optimized heat dissipation structure design, 20% heat reduced
* Max 7.9kg thrust of 660kv
* 50%-90% thrust max efficiency and thrust
* Single piece 6mm shaft runs throughout motor to prevent bell warping in hard hits
* Hex bolt shaft set screw for easy maintenance
* Dynamically balanced
* Motor wire protected

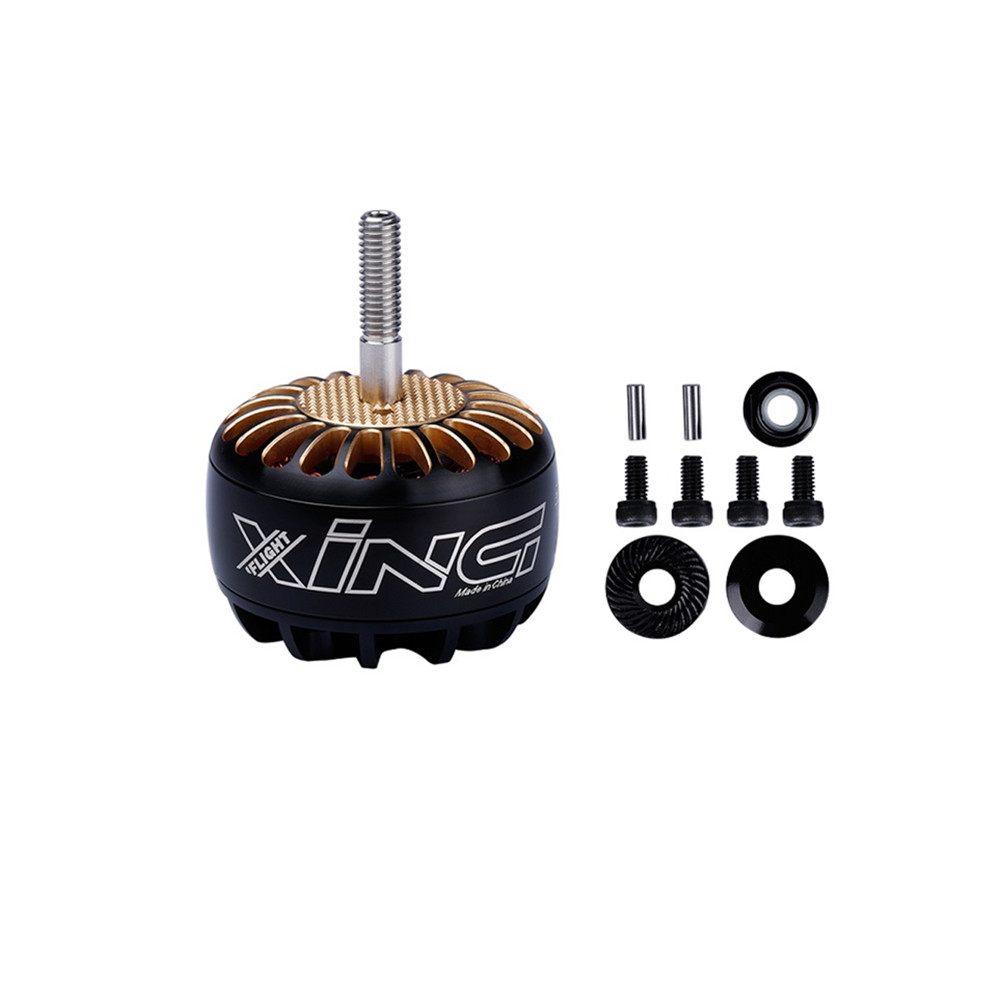

Package Included:
1x XING 4214 X-Class Racing Motor
1x Set Screws & nut
