Description

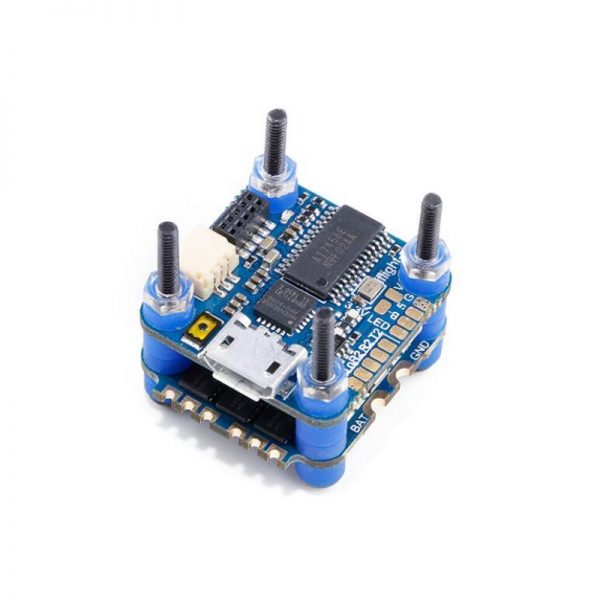

iFlight V1 SucceX F4 Flight controller OSD & 12A Blheli_S 2-4S Brushless ESC 16x16mm for RC Drone FPV Racing
Specification:
Brand name: iFlight
Item name: SucceX V1 F4 Flight controller OSD & 12A Blheli_S 2-4S Brushless ESC
SucceX F4 V1 Micro Flight Controller
-STM32F411
-Input voltage 2-4S LIPO
-Gyro: MPU6000
-2x UART ports
-4x motor outputs
-OSD inbuilt
-No Blackbox FLASH
-BEC 5V 2A cont.
-Size: 21mm*21mm
-Mounting holes distance: 16*16mm
-Weight: 2.5g
-BF target : MATEKF411
SucceX Micro 12A Brushless ESC
-Firmware: BlheliS
-Input voltage : 2-4S LIPO
-Continuous current: 12A
-MCU: BB21F16G
-BEC : None
-ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
-Size: 23mm*21mm
-Mounting hole 16*16mm
-Weight: 2.7g
Package Included:
1 x SucceX F4 Flight controller (M3 hole)
1 x 12A Brushless ESC (M3 hole)
