Description

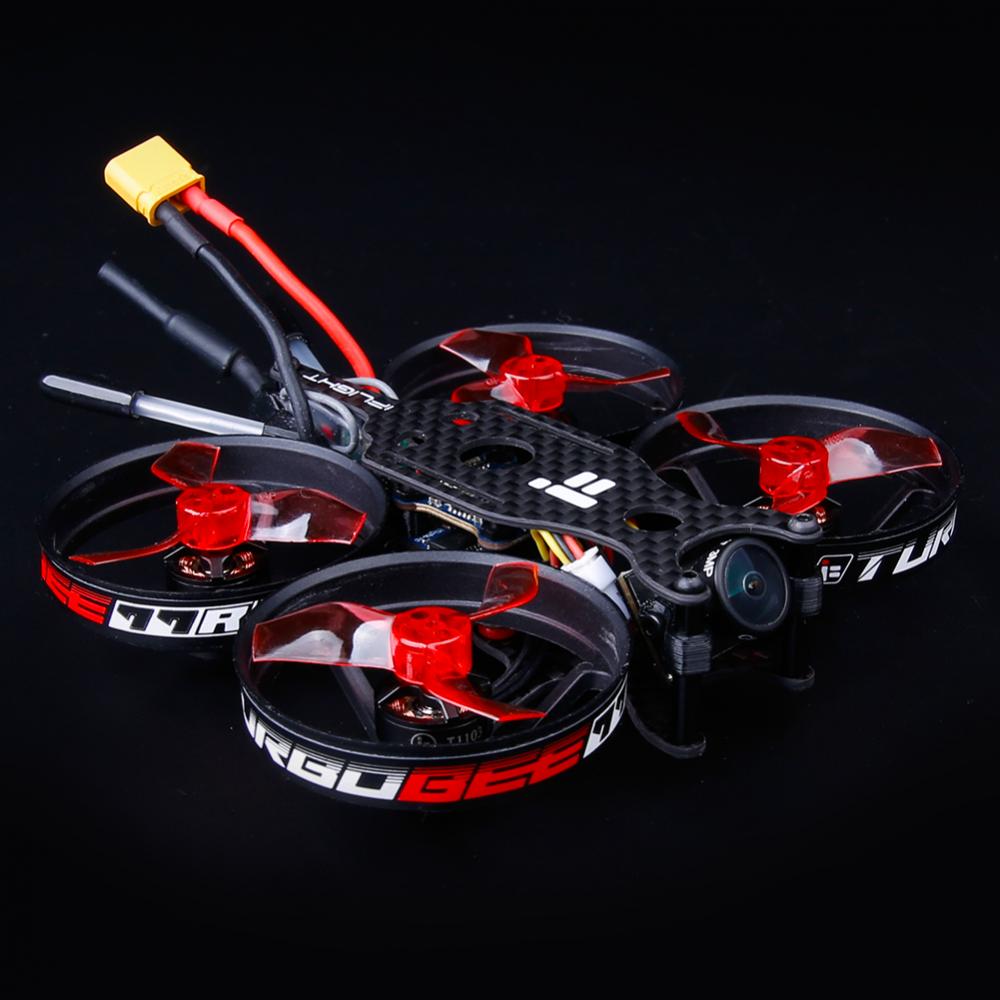

iFlight TurboBee 77R 2-4S FPV Racing Whoop RC Drone SucceX Micro F4 12A 200mW Turbo Eos2 PNP BNF
Specification:
TurboBee 77R Frame Specification:
– Frame Wheelbase: 77mm
– Bottom plate thickness: 1.5mm
– Top board thickness: 1mm
– Flight control pitch: 16x16mm 20x20mm
– Fpv cam spacing: 19mm
– Top and bottom plate spacing: 22mm (aluminum column height)
– Build Weight: 55g
– SucceX Micro 16×16 Tower 2-4S
– iFlight 1103 motors (1.5mm shaft)
– Caddx.us Turbo Eos2 Camera
– Gemfan 1635 40mm 3 blades 1.5mm shaft propeller
– iFlight Prop Guards 40mm
SucceX Mirco F4 Flight Tower System 16x16mm:
SucceX F4 Flight Controller:
-STM32F411
-Input voltage 2-4S LIPO
-Gyro: MPU6000
-2x UART ports
-4x motor outputs
-OSD inbuilt
-No Blackbox FLASH
-BEC 5V 2A Cont.
-Size: 21mm*21mm
-Mounting holes: 16*16
-Weight: 2.5g
-BF target: MATEKF411
SucceX Mirco 12A Brushless ESC:
-Firmware: BlheliS
-Input voltage : 2-4S LIPO
-Continuous current: 12A
-MCU: BB21F16G
-BEC: None
-ESC protocol: PWM, oneshot125, multishot, dshot150, 300, 600, etc.
-Size: 23mm*21mm
-Mounting hole 16*16mm
-Weight: 2.7g
SucceX Mirco VTX-Power: PIT/25/100/200mW:
-Antenna interface: IPEX (UFL)
-Telemetry: IRC Tramp
-Size: 17mm*27mm
-Mounting holes: 16*16mm
-Weight: 1.6g
VTX control implementation:
-VTX can be conveniently set up in your OSD.
Receivers option:
-PNP no receiver
-BNF Frsky Mini XM+
-BNF Flysky FS-A8S V2
-BNF Futaba FT4X
-BNF DSM2/DSMX
-BNF Frsky R-XSR
Package Included:
1x TurboBee 77R FPV Whoop PNP/BNF
