Description

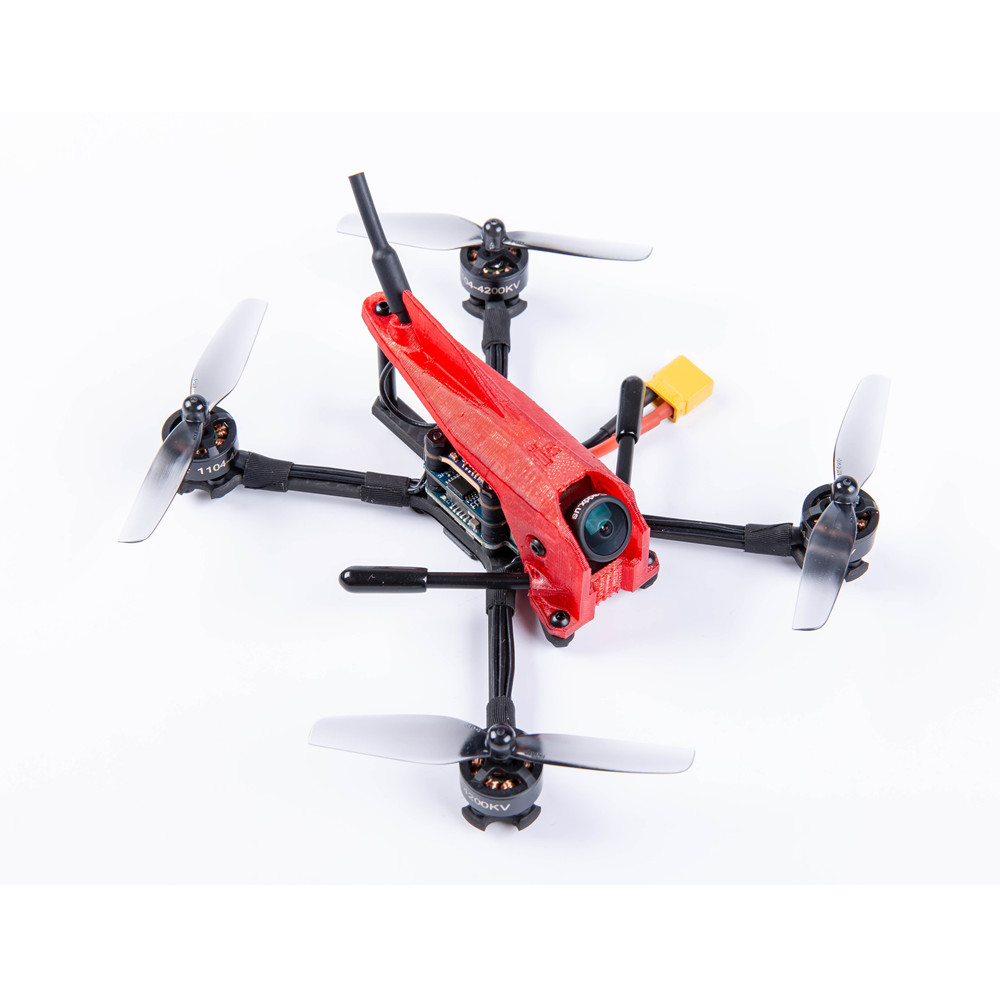

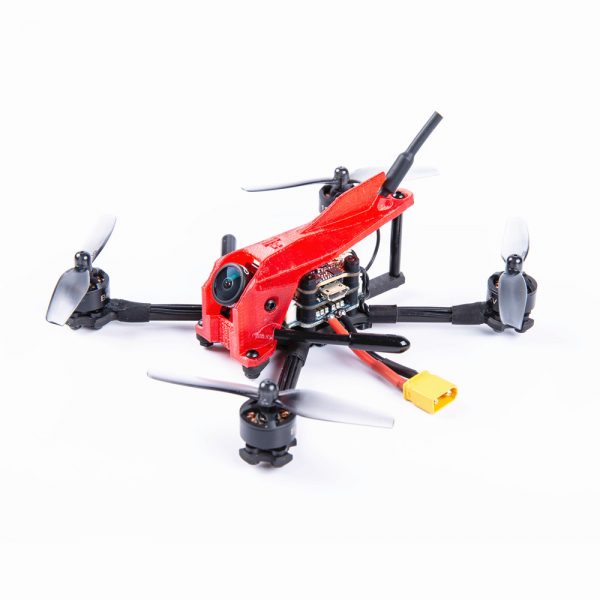

iFlight TurboBee 120RS V2 120mm F4 2S FPV Racing Drone PNP BNF w/ Turbo Eos2 1200TVL Camera
Specification:
Brand Name: iFlight
Model: TurboBee 120RS V2
Model: TurboBee 120RS V2
Wheelbase: 120mm
-3mm bottom plate
-2mm top plate
-Size: 120mm*120mm*30mm
-Weight: around 57.5g (without battery)
– Caddx.us Turbo Eos2 1200tvl 2.1 mm 16:9 NTSC FPV Camera
Brushless Motor: BeeMotor 1103 10000KV ( 2S Version with Red Canopy))
FC & ESC: SucceX F4 Flight Tower System 16×16
SucceX F4 Flight Controller
-STM32F411
-Input voltage 2-4S LIPO
–Gyroscope: MPU6000
-2x UART ports
-4x motor outputs
-OSD inbuilt
-No Blackbox FLASH
-BEC 5V 2A cont.
-Size: 21mm*21mm
-Mounting holes: 16*16
-Weight: 2.5g
-BF target : MATEKF411
Brushless Motor: BeeMotor 1103 10000KV ( 2S Version with Red Canopy))
FC & ESC: SucceX F4 Flight Tower System 16×16
SucceX F4 Flight Controller
-STM32F411
-Input voltage 2-4S LIPO
–Gyroscope: MPU6000
-2x UART ports
-4x motor outputs
-OSD inbuilt
-No Blackbox FLASH
-BEC 5V 2A cont.
-Size: 21mm*21mm
-Mounting holes: 16*16
-Weight: 2.5g
-BF target : MATEKF411
SucceX Micro 12A Brushless ESC
-Firmware: BlheliS
-Input voltage : 2-4S LIPO
-Continuous current: 12A
-MCU: BB21F16G
-BEC : None
-ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
-Size: 23mm*21mm
-Mounting hole 16*16mm
-Weight: 2.7g
SucceX Micro VTX
-Power : PIT/25/100/200mW
-Antenna interface : IPEX (UFL)
-Telemetry: IRC Tramp
-Size: 17mm*27mm
-Mounting holes: 16*16mm
-Weight: 1.6g
Propeller :HQProp 65mm 2-blades propellers
Recommend Battery ( NOT Included): 2s 450mAh ( for 2S Version)
Package Included:
1x TurboBee 120RS V2 Drone
4 x HQ 65mm propellers CW
4 x HQ 65mm propellers CCW
4 x HQ 65mm propellers CCW
2 x Battery straps
