Description

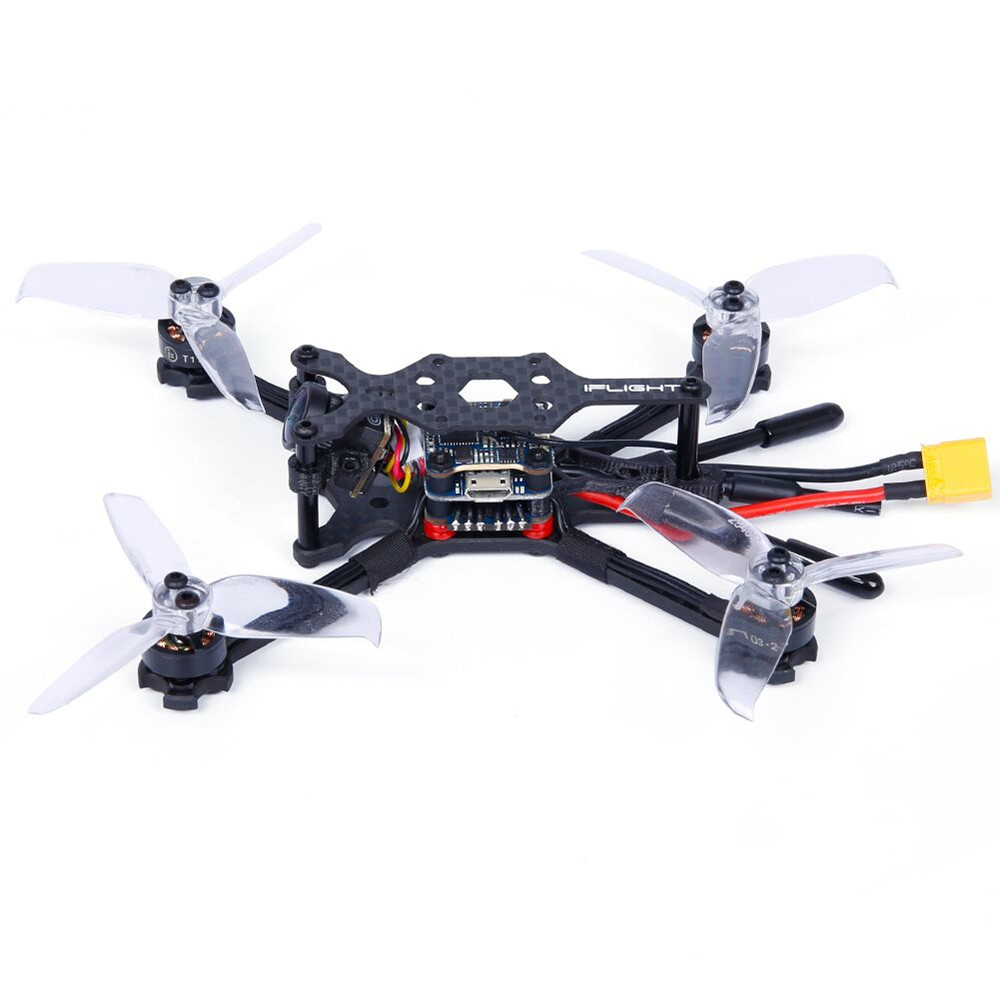

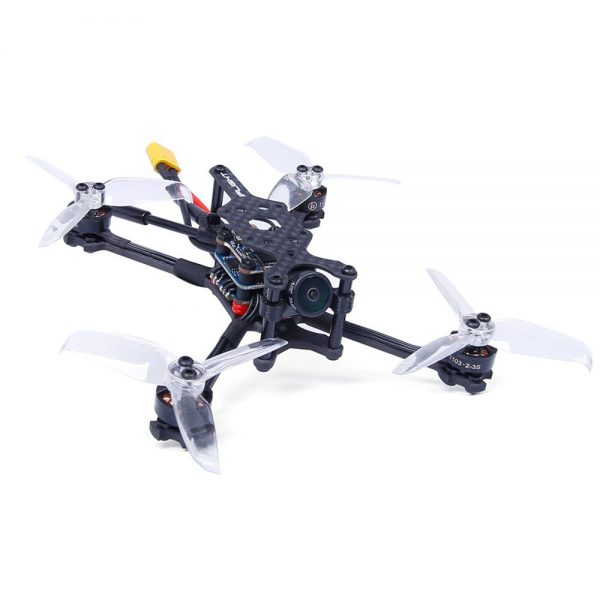

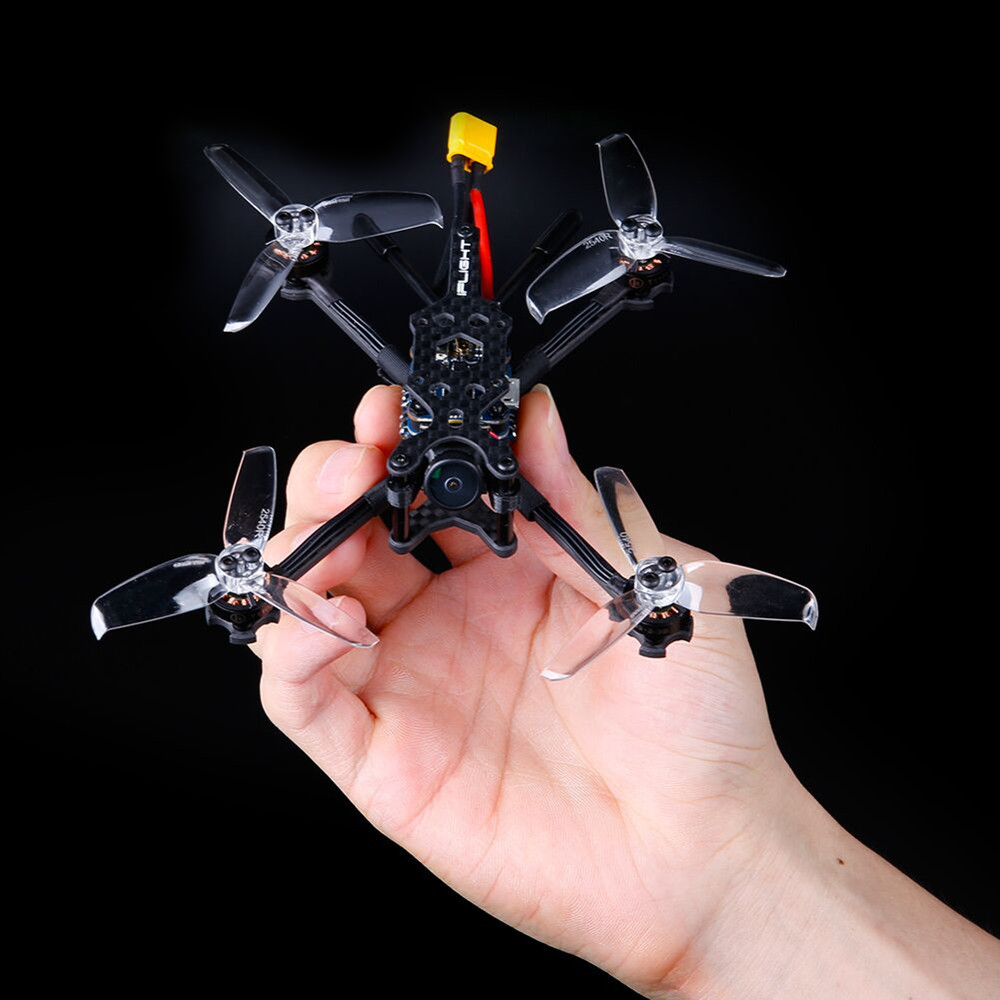

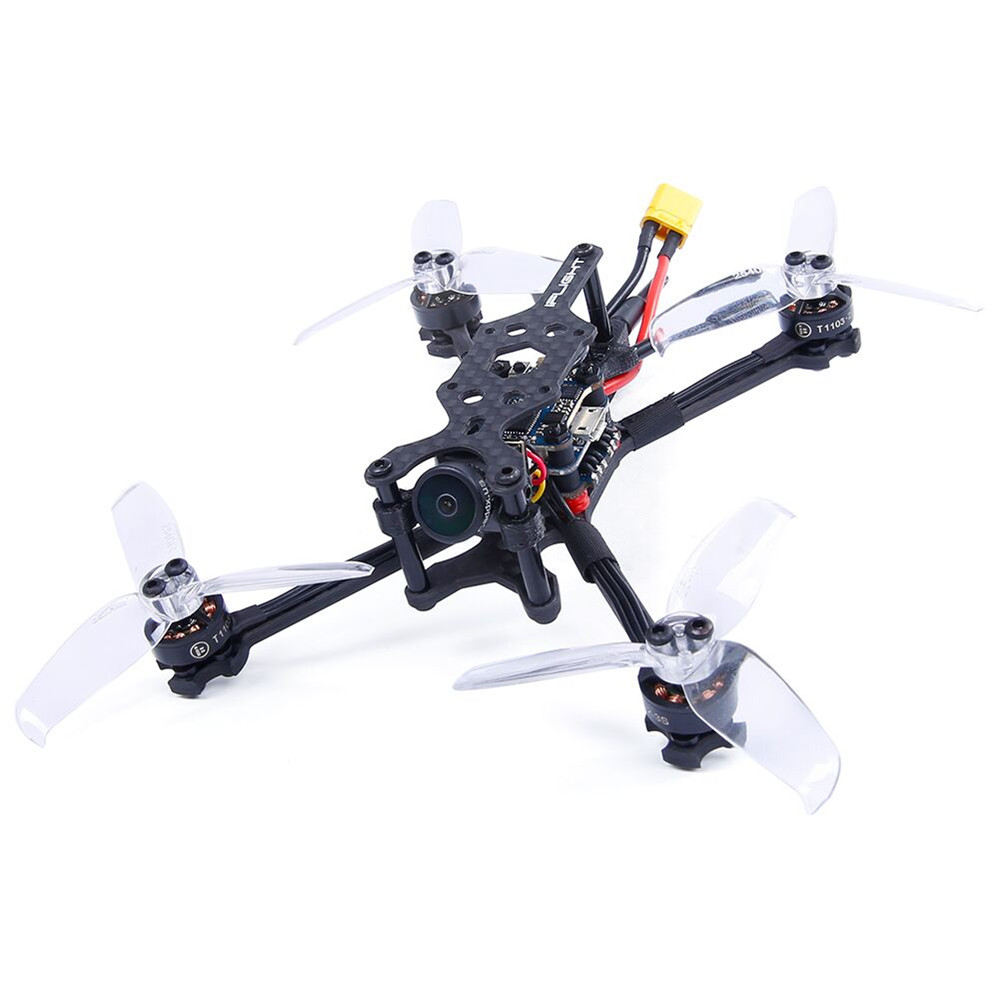

iFlight TurboBee 120RS 4S Micro FPV Racing RC Drone SucceX Micro F4 12A 200mW Turbo Eos2 PNP BNF
Notice: it would upgrade in 4S Version.
All pending order will send in new 4S Version.
June 5th, 2019
Specification:
TurboBee 120RS Frame Specs:
Wheelbase: 121mm
Bottom plate thickness: 2.5mTop plate thickness: 2mm
Arm width: 4mm
Electronic equipment installation height : 22mm (aluminum column height 22mm)
Flight control hole distance: 16mm
Weight: Around 12.2g
Support motor: 11xx
Support propeller: maximum of 2.5 inches, 66MM propeller
SucceX Micro flytower Specs:
SucceX F4 Flight Controller:
-STM32F411
-Input voltage 2-4S LIPO
-Gyro: MPU6000
-2x UART ports
-4x motor outputs
-OSD inbuilt
-No Blackbox FLASH
-BEC 5V 2A Cont.
-Size: 21mm*21mm
-Mounting holes: 16*16
-Weight: 2.5g
-BF target: MATEKF411
SucceX Micro 12A Brushless ESC:
-Firmware: BlheliS
-Input voltage : 2-4S LIPO
-Continuous current: 12A
-MCU: BB21F16G
-BEC: None
-ESC protocol: PWM, oneshot125, multishot, dshot150, 300, 600, etc.
-Size: 23mm*21mm
-Mounting hole 16*16mm
-Weight: 2.7g
iFlight BeeMotorV 1104 4200KV 4S Brushless Motor ( Upgrade)
SucceX Micro VTX:
-Power: PIT/25/100/200mW
-Antenna interface: IPEX (UFL)
-Telemetry: IRC Tramp
-Size: 17mm*27mm
-Mounting holes: 16*16mm
-Weight: 1.6g
Caddx.us Turbo Eos2 Camera
Gemfan 40mm 1.5mm shaft tri-blade propellers
Package included:
1x TurboBee 120RS Micro FPV Race Drone PNP/BNF
