Description

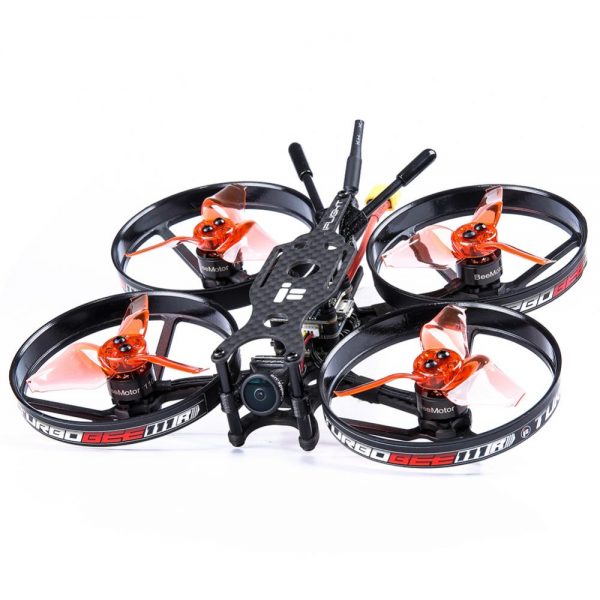

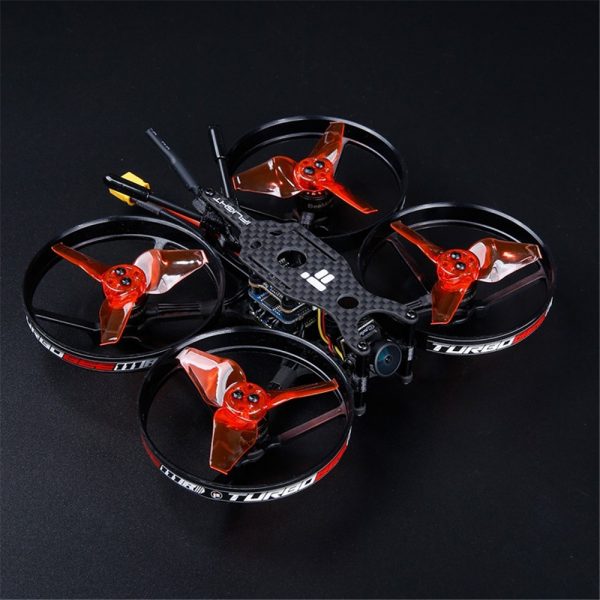

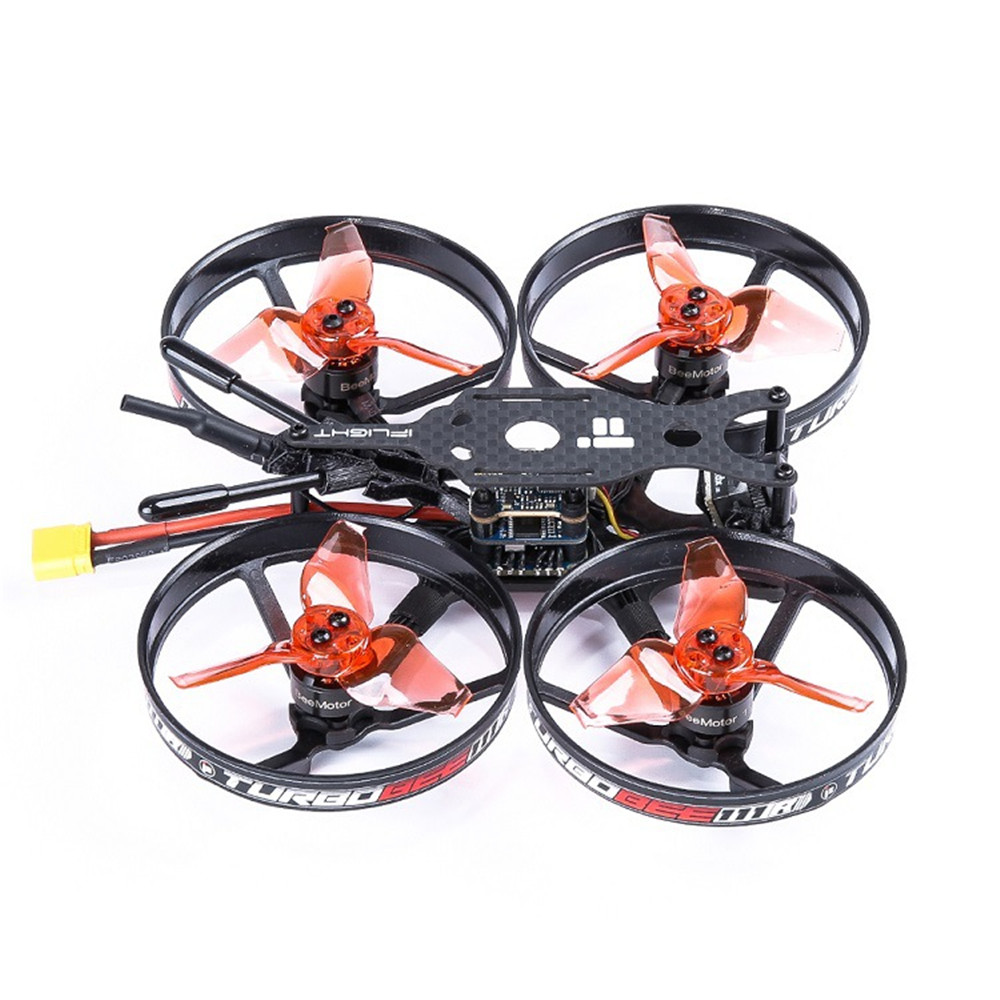

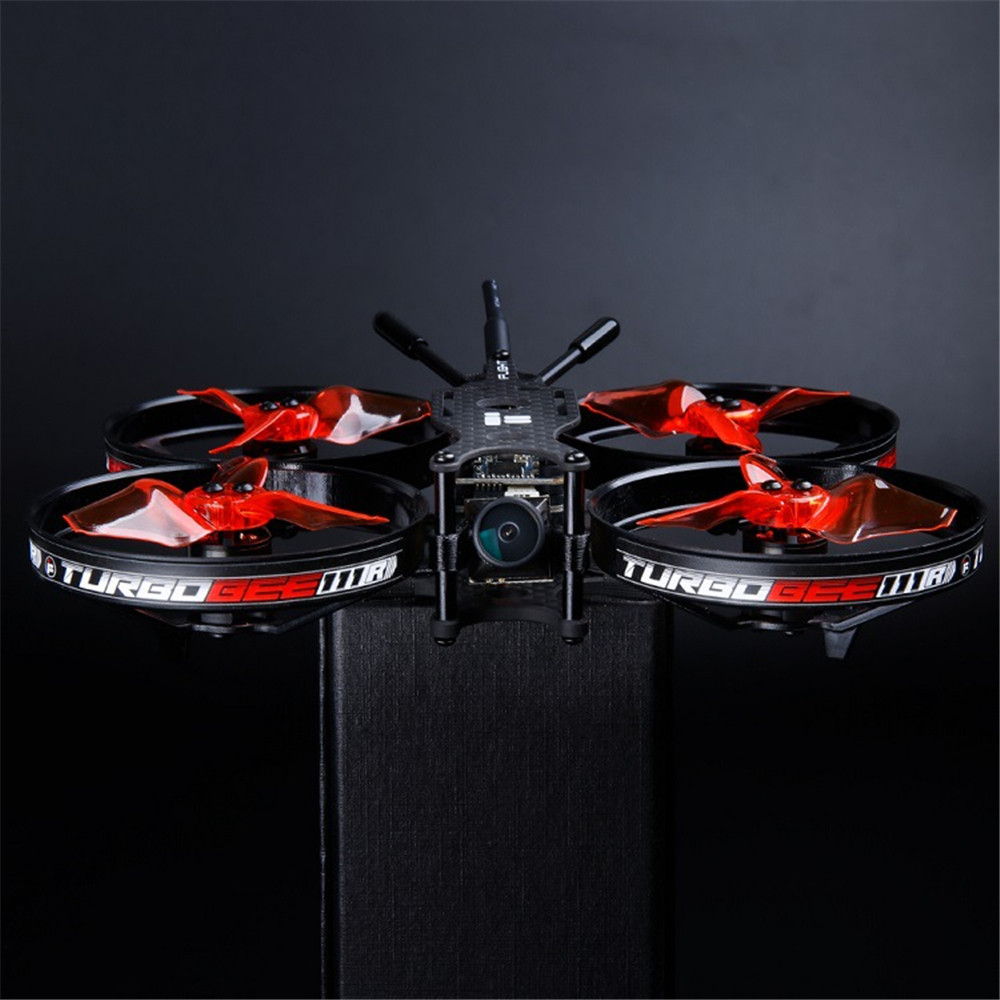

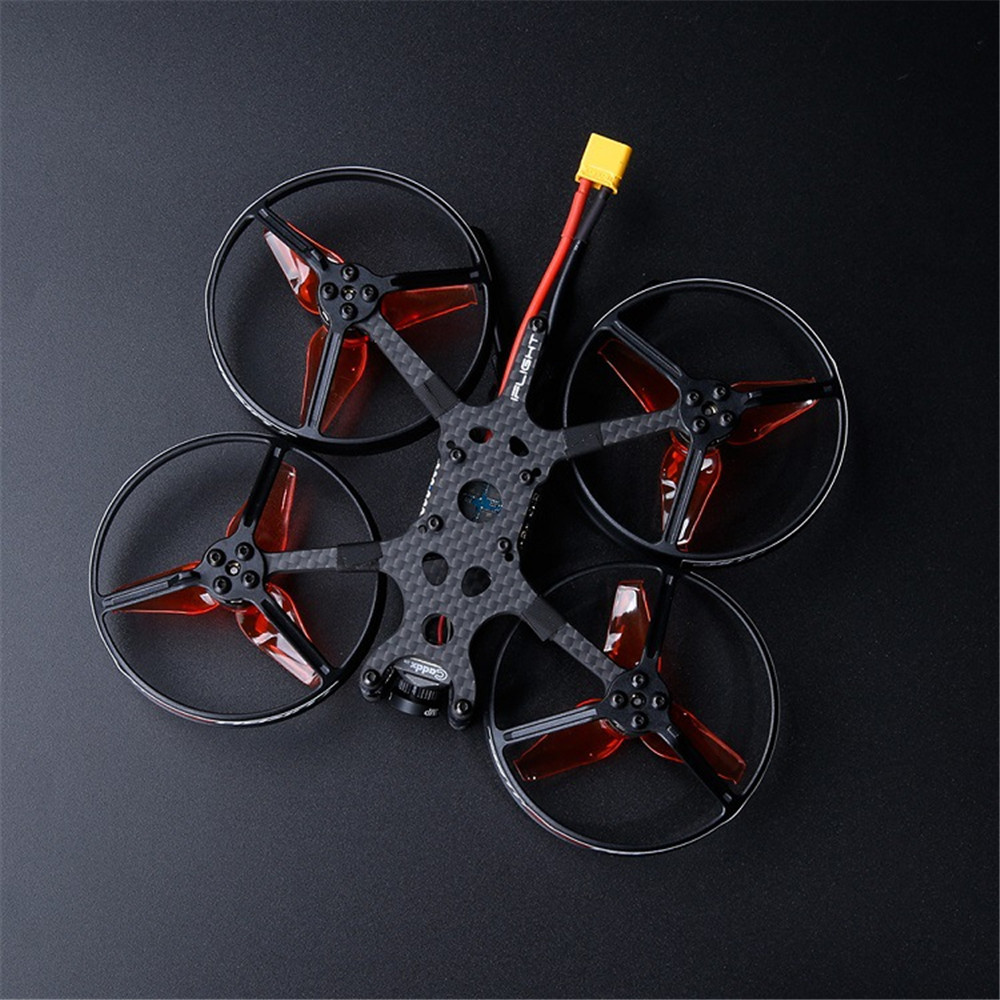

The TurboBee 111R BNF is a new micro FPV drone designed for the indoor FPV aerial filming with a smaller size and lighter weight. Also, comes with the latest released SucceX Micro F4 V2 Flysytem with plugs.
Features:
-SucceX Micro F4 V2 Flight controller is 2-4s Lipo Compatible
-The lightest 1105 brushless motor on the market with double ball bearings
-Light, Powerful and smooth configuration
-Compatible both for 4s Lipo/LIHV
Specifications:
SucceXMirco F4 Flight Tower System 16x16mm
SucceX F4 Flight Controller
-STM32F411
-Input voltage 2-4S LIPO
-Gyro: MPU6000
-2x UART ports
-4x motor outputs
-OSD inbuilt
-No Blackbox FLASH
-BEC 5V 2A Cont.
-Size: 21mm*21mm
-Mounting holes: 16*16
-Weight: 2.5g
-BF target: MATEKF411
SucceX Micro 12A Brushless ESC V2
-Firmware: G-H-30 BLS 16.7
-Input voltage : 2-4S LIPO
-Continuous current: 12A
-MCU: BB21F16G
-BEC: None
-ESC protocol: PWM, oneshot125, multishot, dshot150, 300, 600, etc.
-Size: 23mm*21mm
-Mounting hole 16*16mm
-Weight: 2.7g
SucceX Micro VTX V2
-Power: PIT/25/100/200mW
-Antenna interface: IPEX (UFL)
-Telemetry: IRC Tramp
-Size: 17mm*27mm
-Mounting holes: 16*16mm
-Weight: 1.6g
Motor: BeeMotor 1105 4500KV
Propeller: AVAN Micro 2327 Tri-blades propellers
FPV camera: Caddx.us Turbo Eos2
Recommended battery: (not included)
4S 450mAh
Package Included:
1 x TurboBee 111R FPV Drone
2sets x AVAN Micro 2327 Tri-blades propellers
