Description:
Brand:iFlight

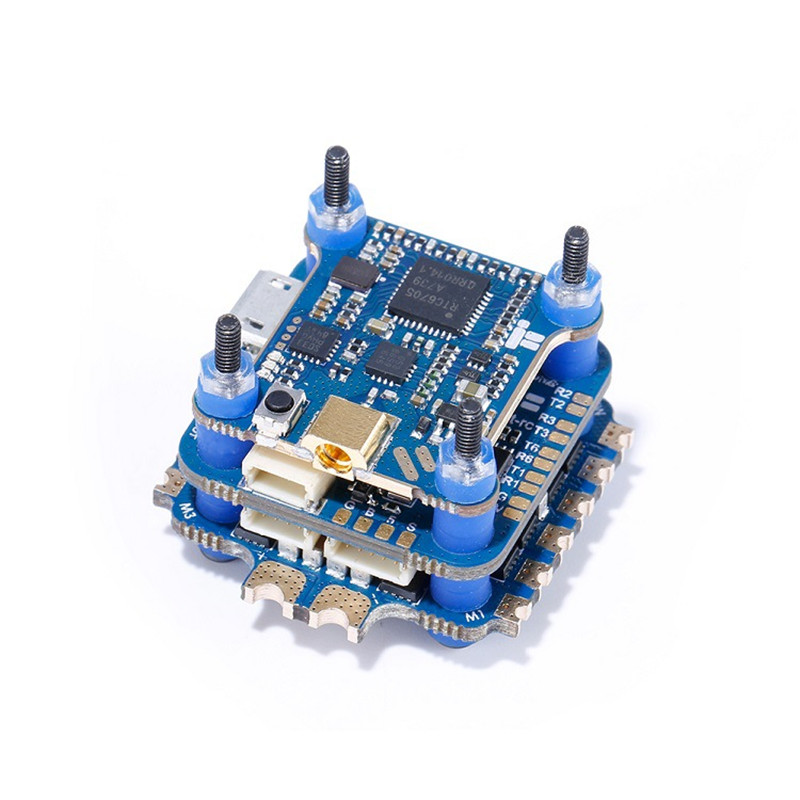

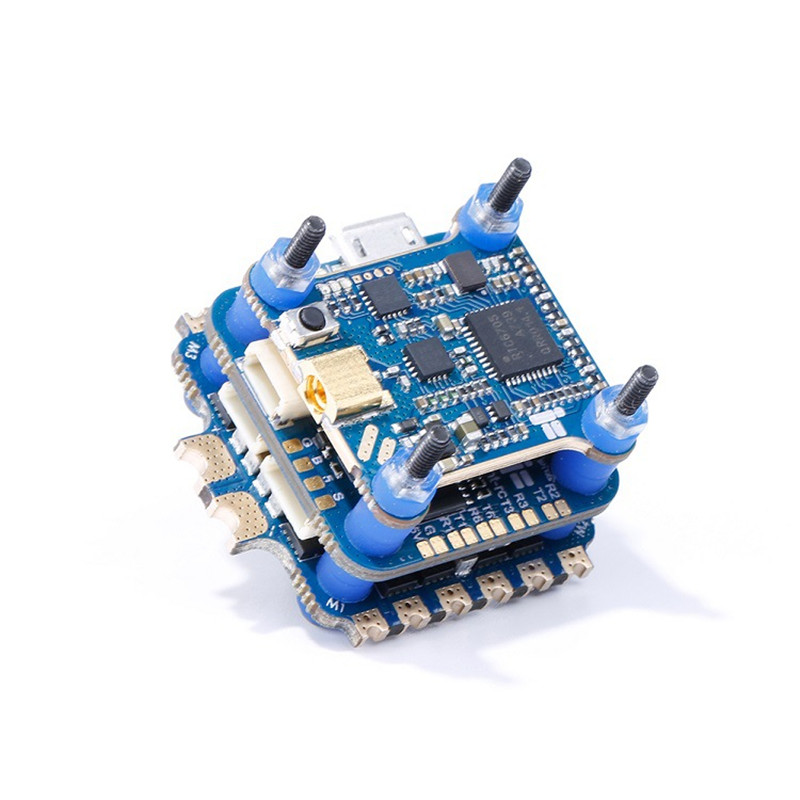

Item Name: SucceX F7 V3 Mini Flight Controller
Version: FC&ESC; FC&ESC&VTX (Optional)
Features:
* STM32 F405 MCU FC w/OSD, integrated dual IMC20689 accelerometer and gyro;
* Plug-in connection, pin header design, easy to install and disassemble;
* Support current meter;
* BLHeli-32-bit 35A 4-IN 1 ESC
* Super-lightweight(including screws,aluminum column & nuts):
FC&ESC:13.9g
FC & ESC & VTX:16.4g
* Switchable pit/20/100/200//500mW 48CH VTX
FC:
MCU: 216MHz STM32F722RET6
Gyro: TwinG ICM20689
Blackbox: 32MB
OSD: yes
Uarts: 4Set
ESC Telemetry: RX6
INA Pad: nuart2
Input voltage: 2-6S
Target: EXF722DUAL
CLI config: IFLIGHTF7_TWIN_G.config
Size:27*27mm /20*20mm φ3 mounting
ESC:
Input voltage: 2-6S
Current: 35A
Current sensor: yes
Telemetry output: yes
Target: iFlight-BL32-4in1 BL32-32.6
Size: 31*31mm /20*20mm φ3 mounting
VTX:
Input voltage: 2-6S
48 standard channels, A/B/E/F/R Band
Output Power: pit/20/100/200/500mW
BEC Output: 5V/1A for Camera or FC
RF Connector: U.FL (IPEX)
Video Format: NTSC/PAL
Size: 26*26mm /20*20mm φ3 mounting
U.FL version Packing
5.8G Video transmitter (U.FL)
U.FL 5.8G whip antenna

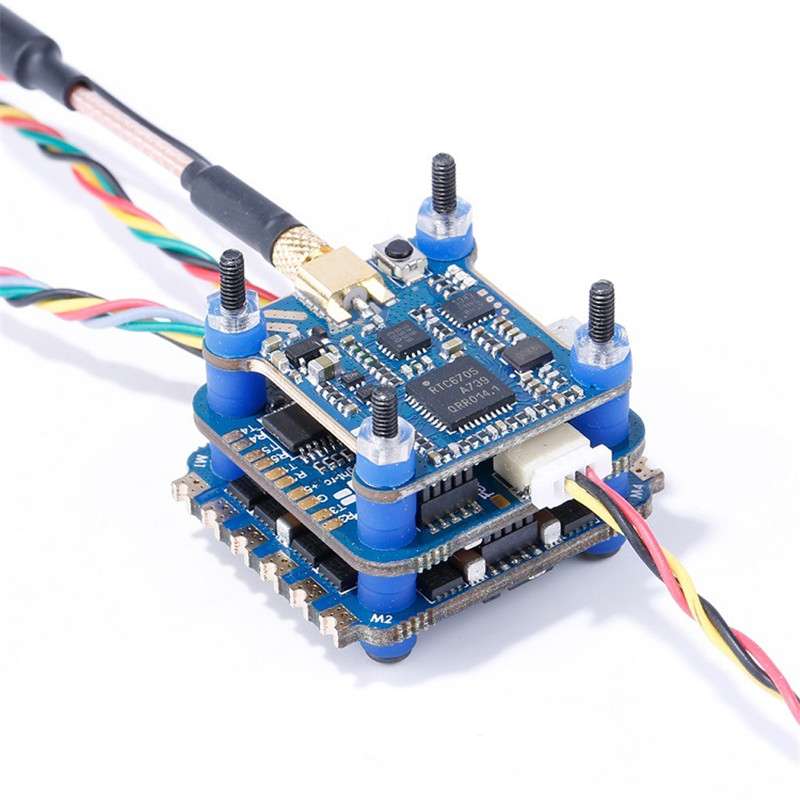

Package included (Pre-built as stack):
– 1 x SucceX mini F7 V3 Flight Controller
– 1 x SucceX V7 Mini 35A V3 2-6S 4 in 1 ESC
– 1 x Succex Mini VTX (Optional)
– Cable Set
