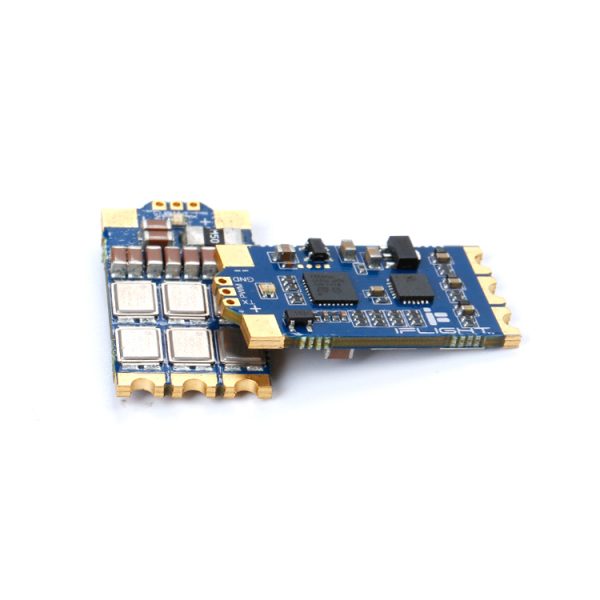

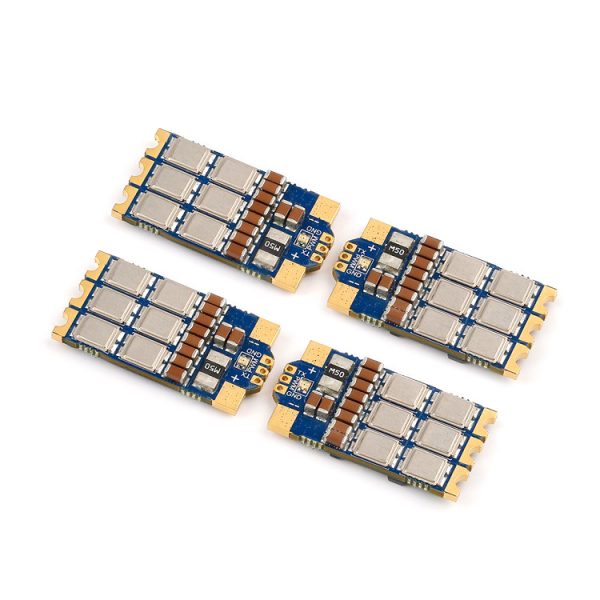

iFlight SucceX 60A Plus ESC 2-6S Dshot1200 BLHeli_32 For RC Drone FPV Racing Multi Rotor
Description:
Brand name: iFlight
Item name: SucceX 60A Plus ESC
Burst: 75A 10S
Burst: 75A 10S
Dimension: 30*17mm

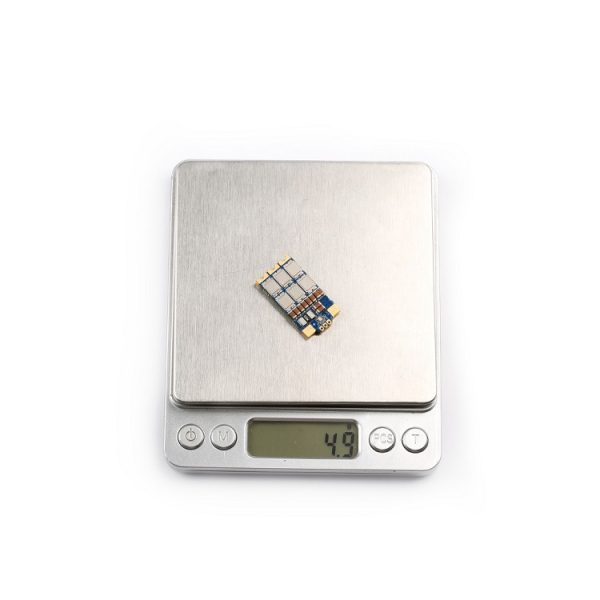

Weight: 4.9g without wire
Supports 2-6S lipo input
STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
Capacitance: total 220UF Low ESR
4PWM input
BEC: No
Supports: DShot DShot150/300/600/1200/MultiShot/OneShot PWM Drive
Features:
2-6S input
48mHz running speed integrated 3 in 1 STM32F051;
60A 6 layers 4OZ copper PCB, better operating load capacity;
10 pieces TDK MLCC total 220UF Low ESR capacitors, lower ripple and more stable;
Top grade IRF7480 MOSFET MOS tube, stable and reliable;
2 * 0603 LED for power- on display;
Rational layout, large soldering pad, countersinks and semicircle orifices enable each layer to be energized after power-on.
Support:
Current sensor
Telemetry
Motor timing
Brake on stop
Package included:
1 x SucceX 60A Plus ESC
1 x Cable set for ESC signal wires
