iFlight SucceX 50A V2 Slick 2-6S BLHeli_32 Dshot1200 Single ESC with RGB LED for RC Drone FPV Racing Frame
Descriptions:

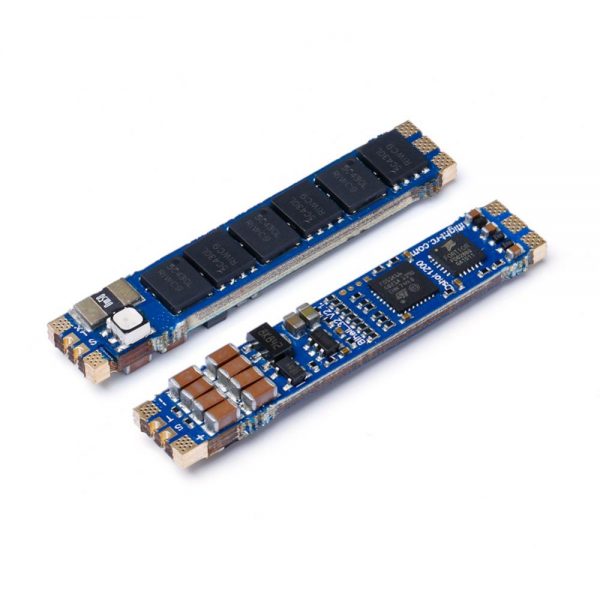

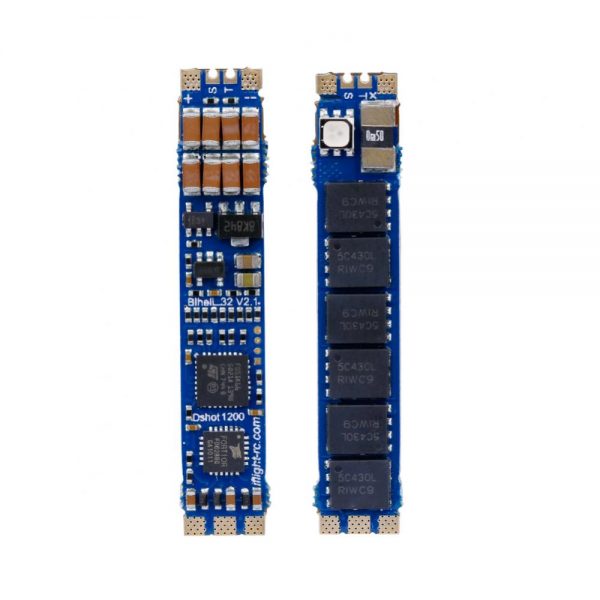

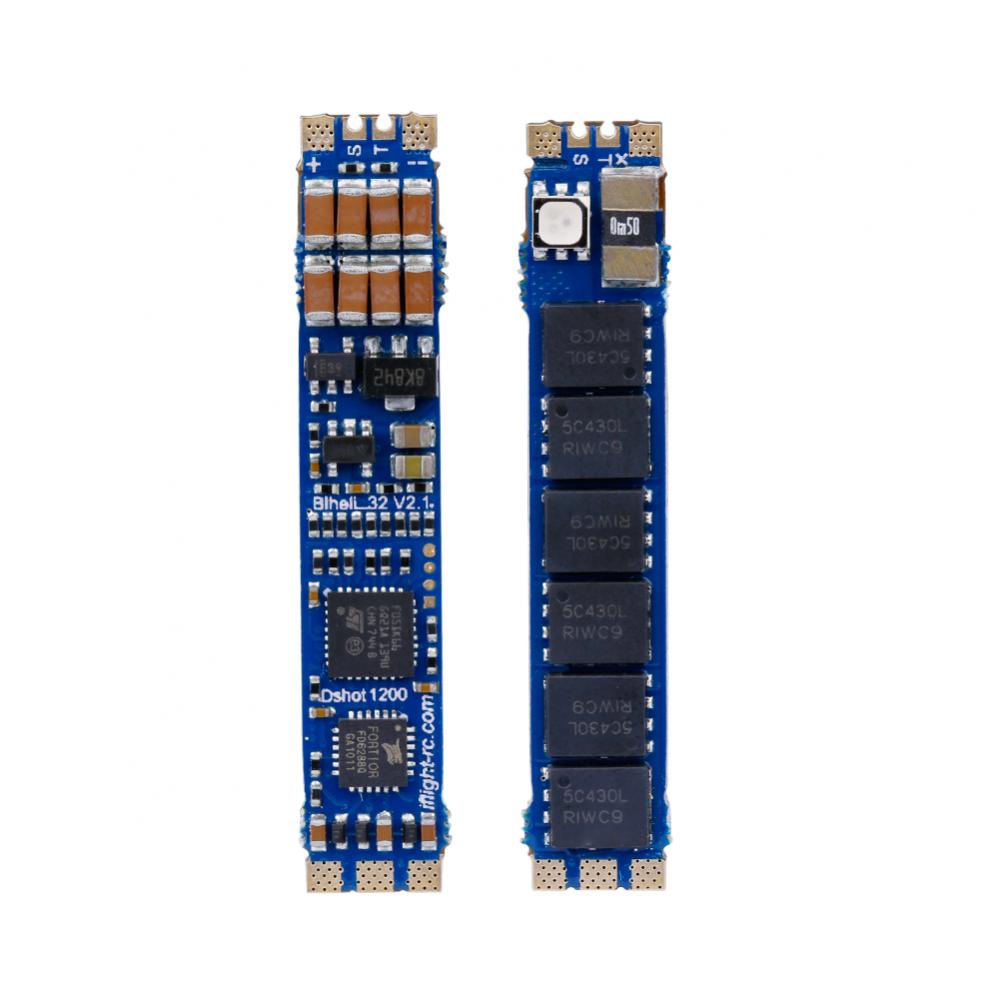

iFlight SucceX 50A V2 Slick ESC is specially designed for FPV racing frames with slim arms like Dove, Dove Lite, Archer. It comes with 48MHZ 32-bit STM32F051, to provide faster response speed and processing capacity. The STM32F051 is combined with the high-performance 3-in-1 driver, to lower the signal delay from throttle to the receiver, accelerate the motor responding speed and increase the control precision. iFlight SucceX 50A V2 Slick ESC provides the advantages of rapid flight and extraordinary flight experience!
Specification:
Brand name: iFlight
Item name: SucceX 50A V2 slick ESC
Input Voltage: 2-6S
Weight: 3.9g without cables
Dimension: 45*8mm
Current sensor: support
Telemetry: support
RGB led lights display status
BEC: NO
Support: Dshot150/300/600/1200, MultiShot, OneShot;
Target:iFlight-BL32-PRO
Recommendation:
– No additional capacitor needed up to 5S!
– But to encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!
Features:
– 48MHZ running speed integrated 3 in 1 STM32F051;
– Total 8-layer PCB board;
– High temperature and high current resistance;
– Support telemetry & current sensor ;
– RGB LED for power- on display;
– 45*8mm dimension, perfect for FPV racing frames w/ slim arms.
– countersinks and semicircle orifices enable each layer to be energized after power-on
– Support Dshot150/300/600/1200/Multishot/Oneshot;
– More aerodynamic, less prop thrust disturbance
– 48MHZ running speed integrated 3 in 1 STM32F051;
– Total 8-layer PCB board;
– High temperature and high current resistance;
– Support telemetry & current sensor ;
– RGB LED for power- on display;
– 45*8mm dimension, perfect for FPV racing frames w/ slim arms.
– countersinks and semicircle orifices enable each layer to be energized after power-on
– Support Dshot150/300/600/1200/Multishot/Oneshot;
– More aerodynamic, less prop thrust disturbance

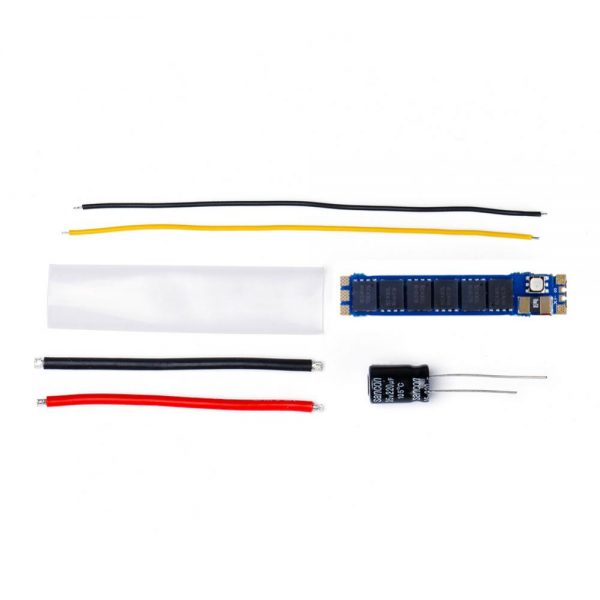

Package Included:
1x SucceX 50A V2 Slick ESC
1x 35V 220uf capacitor
1x 35V 220uf capacitor
1x Set of Power cables & ESC signal wires
