Description
Specifications:
Brand name: iFlight
Type: 5" FPV Race frame
Frame wheelbase: 205mm
Dimensions: 148*143mm (body dimension)

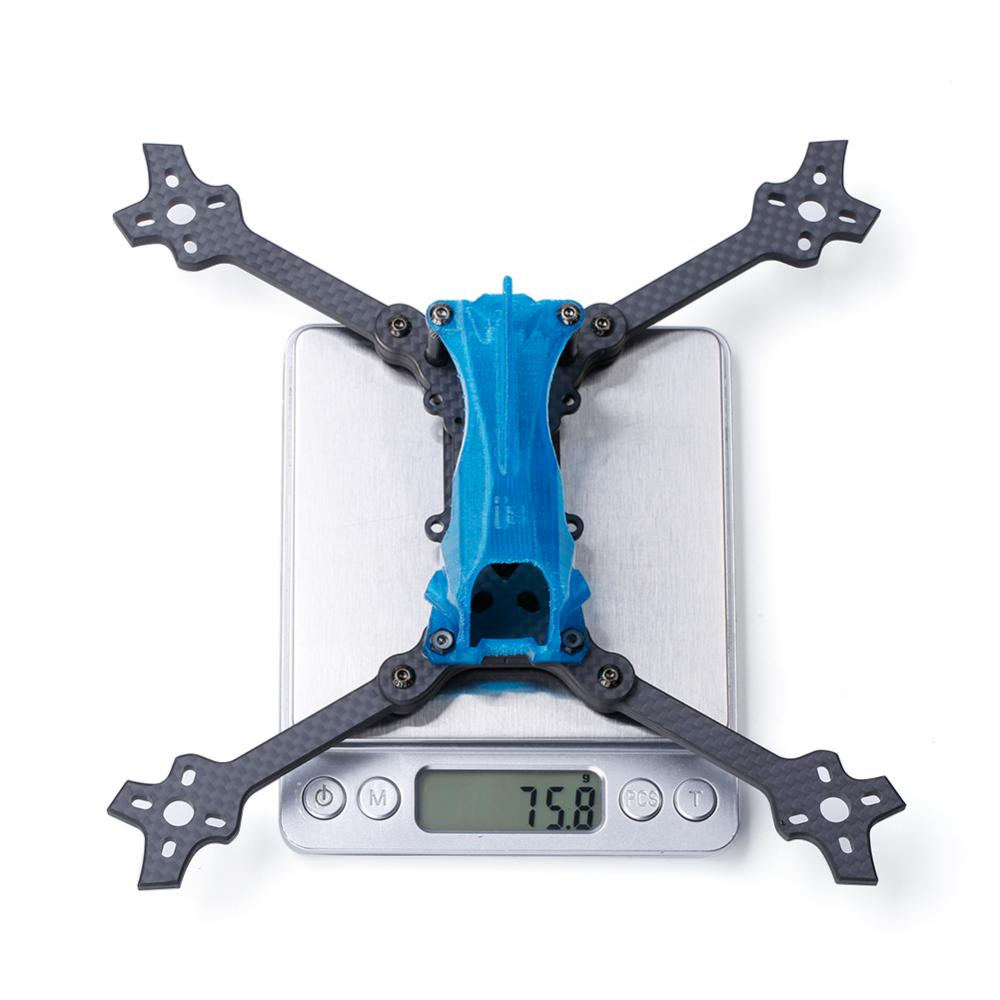

Frame weight: 75.8g approx
Standoff: M3*25mm (2pcs)
5mm thickness, 8mm width arms
Mounting Holes: 30.5*30.5mm/20*20mm
Support camera size: 19*19mm
Recommended motors: 22xx, 23xx
Recommended pack list: (not included)
XING X2207 2450KV 4S
XING X2207 1800KV 6S
Nazgul 5140 propellers
SucceX mini F4 TwinG Stack w/500mw VTX
SucceX mini F7 TwinG Stack w/500mw VTX
SucceX F4 TwinG V2.1 + SucceX 50A 4in1 ESC Stack
SucceX F7 TwinG V2.1 + SucceX 60A 4in1 ESC Stack
Features:
-Full 3K Carbon Fiber airframe
-Easy arm swaps -205mm wheelbase, 75.8g
-Popular H-Quad configuration
-Fits both 30.5x and 20x stacks

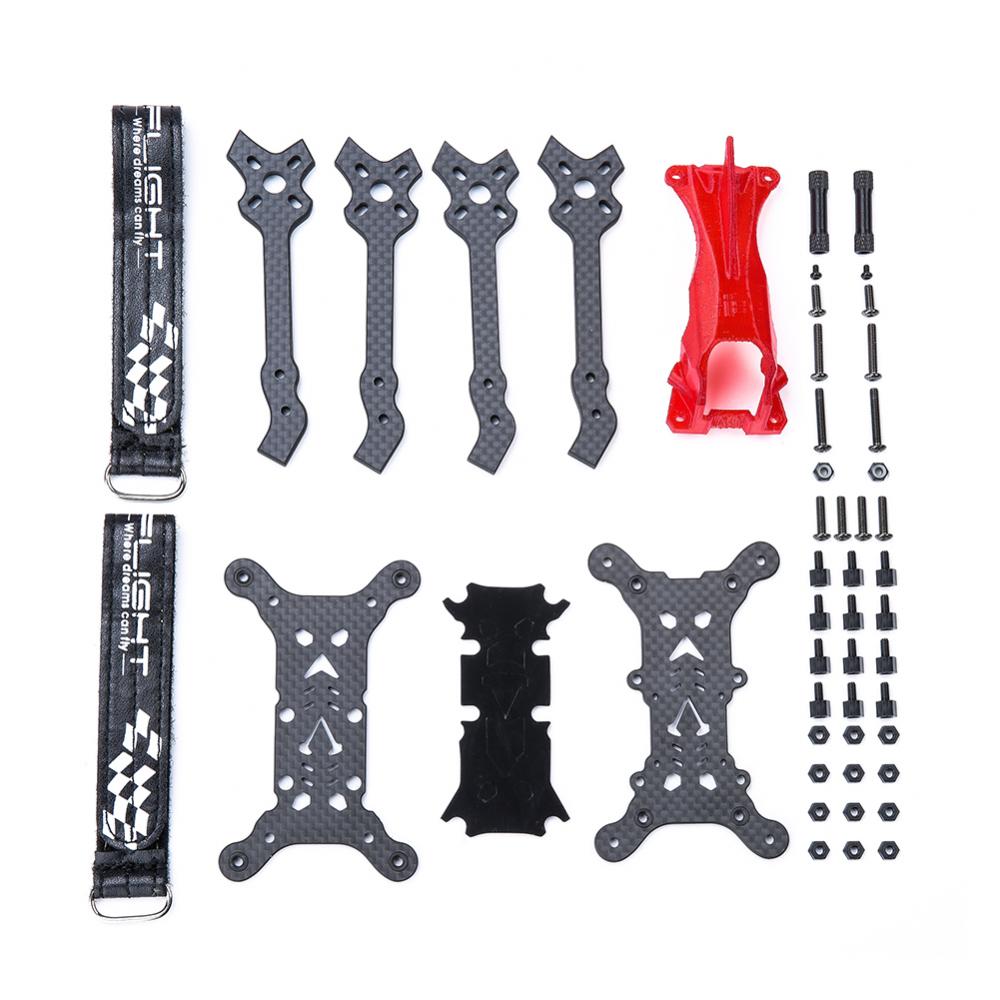

Package included:
1 x H5 Frame
1 x Screws Set
1 x TPU Canopy
2 x Battery Anti-slip mat
1 x Battery Strap
