Description

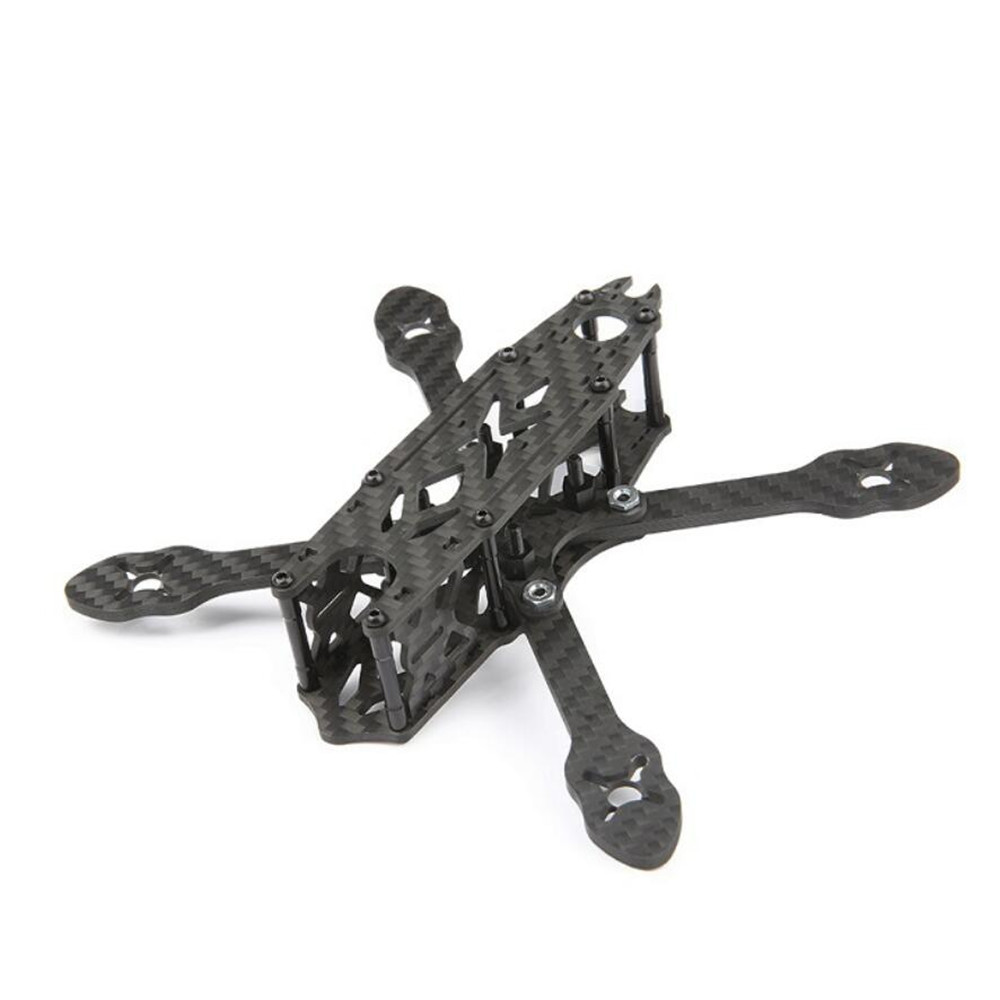

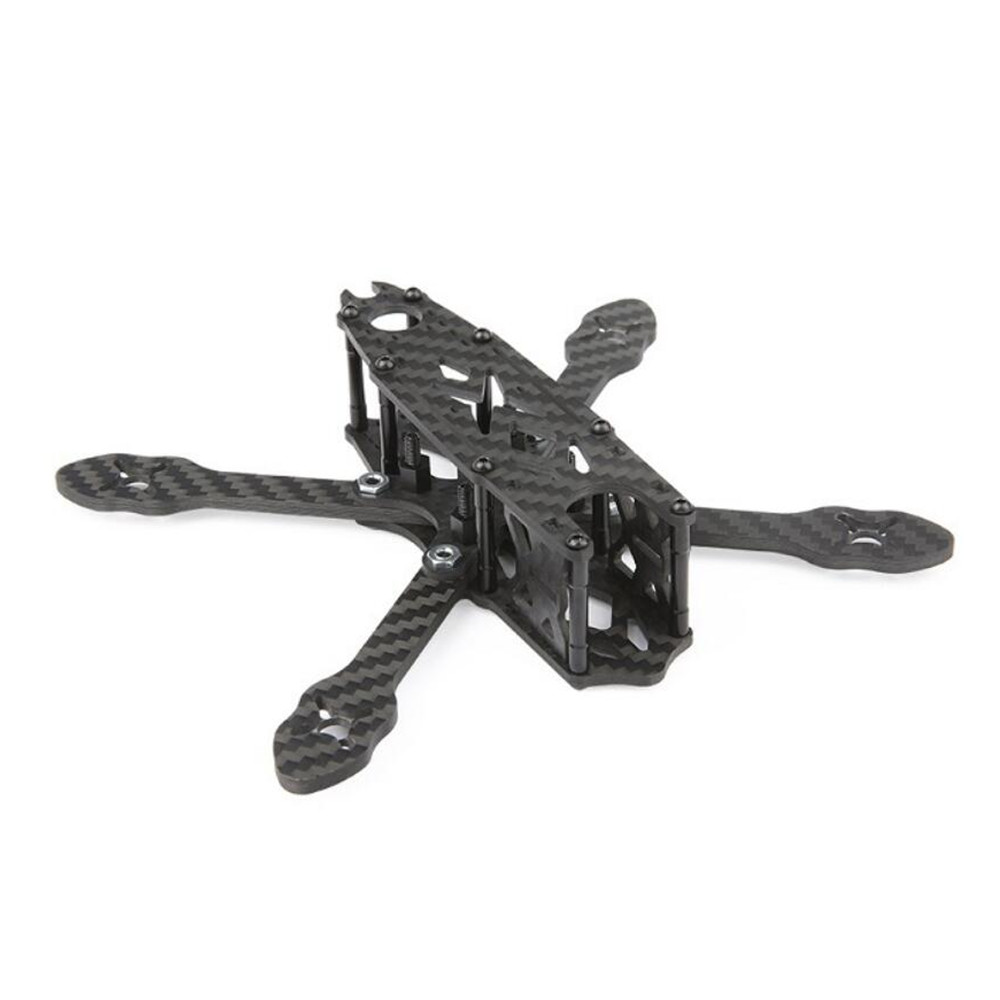

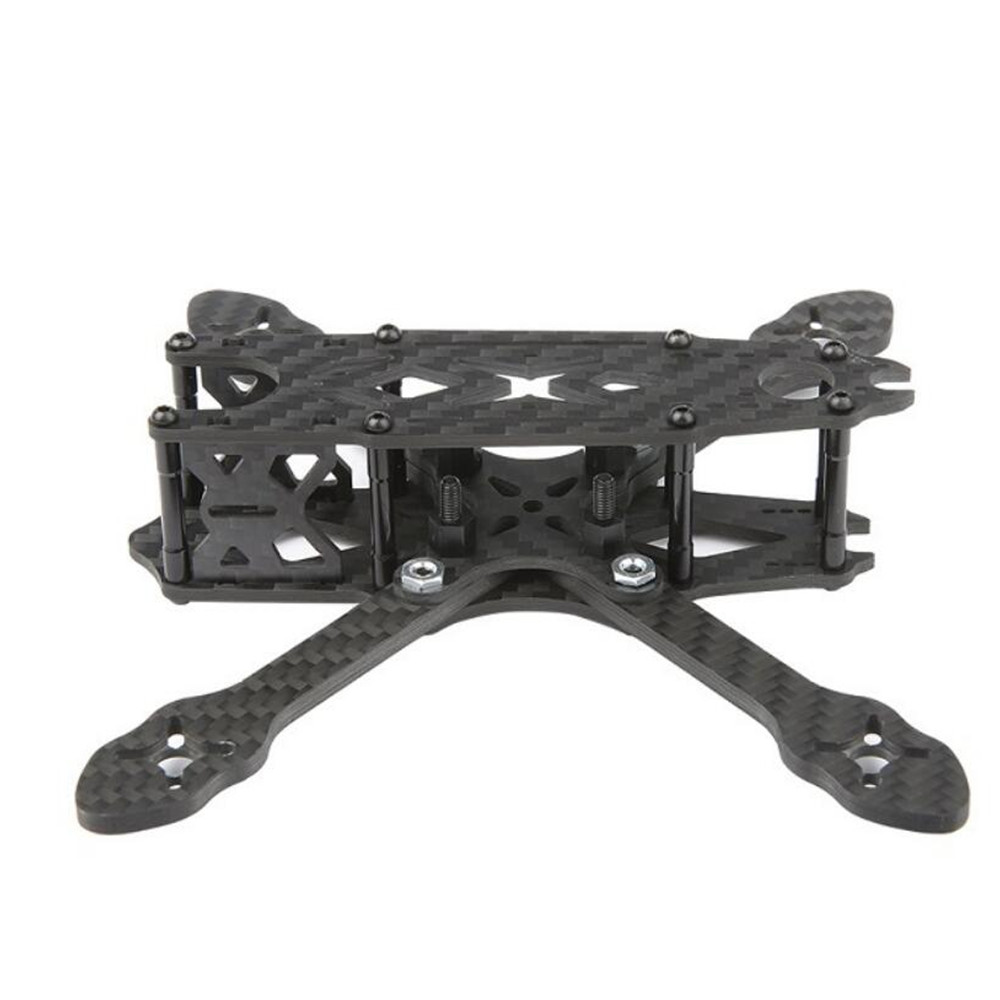

IFlight R1 XF3 V2 135mm Wheelbase 3mm Arm Thickness 3K Carbon Fiber Frame Kit for RC Drone FPV Racing
Notice: Only package include empty frame kit.
Specification:
Brand Name: IFlight
Model: R1 XF3
Item Name: 135mm Wheelbase 3 Inch Racing Frame Kit
Material: 3K Carbon Fiber
Wheelbase: 135mm
Center Plate Thickness: 2mm
Side Plate Thickness: 1.5mm
The Height of Standoff: 23mm
Motor Mounting Hole Distance: 7-13mm

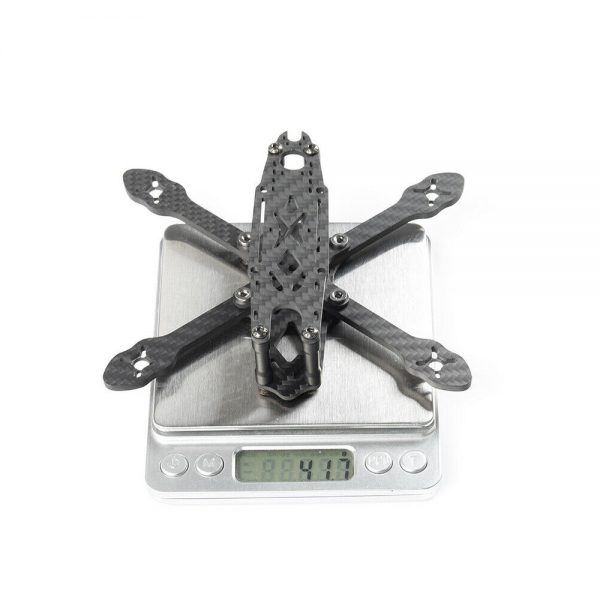

Weight: 41g
Dimension: 105x85mm
Recommend Parts:
Flight Controller: 20x20mm F3/ F4 Flight Controller
Brushless ESC: 20x20mm 12-50A ESC
Brushless Motor: 11XX ; 14XX Series Motor
Propeller: 3 Inch Propeller
FPV Camera: 19mm Width Camera
Lipo Battery: 2-4S 500-800mAh Lipo Battery
The following parts are compatible: ( Not Included)
FC & ESC & VTX Stack: 20x20mm LDARC KK20 F4 FC & 20A 4in1 ESC & 40CH VTX
20x20mm GEPRC Stable F4 FC & 20A 4in1 ESC & 40CH VTX
Brushless Motor: Emax RS1106 1106 4500KV 2-3S Brushless Motor
LDARC XT1406 1406 3600KV 2-4S Brushless Motor
Propeller: 10 Pairs LDARC 3045 3 Inch 3-blade Propeller 1.5mm Mounting Hole
10 Pairs LDARC 3050 3 Inch 3-Blade Propeller 5mm Mounting Hole
FPV Camera: RunCam Micro Swift 2 600TVL 1/3 CCD FPV Camera
Lipo Battery: Gaoneng GNB 11.1V 650mAh 80C/160C 3S Lipo Battery XT30 Plug
Package Included:
1x IFlight 135mm Empty Frame Kit
