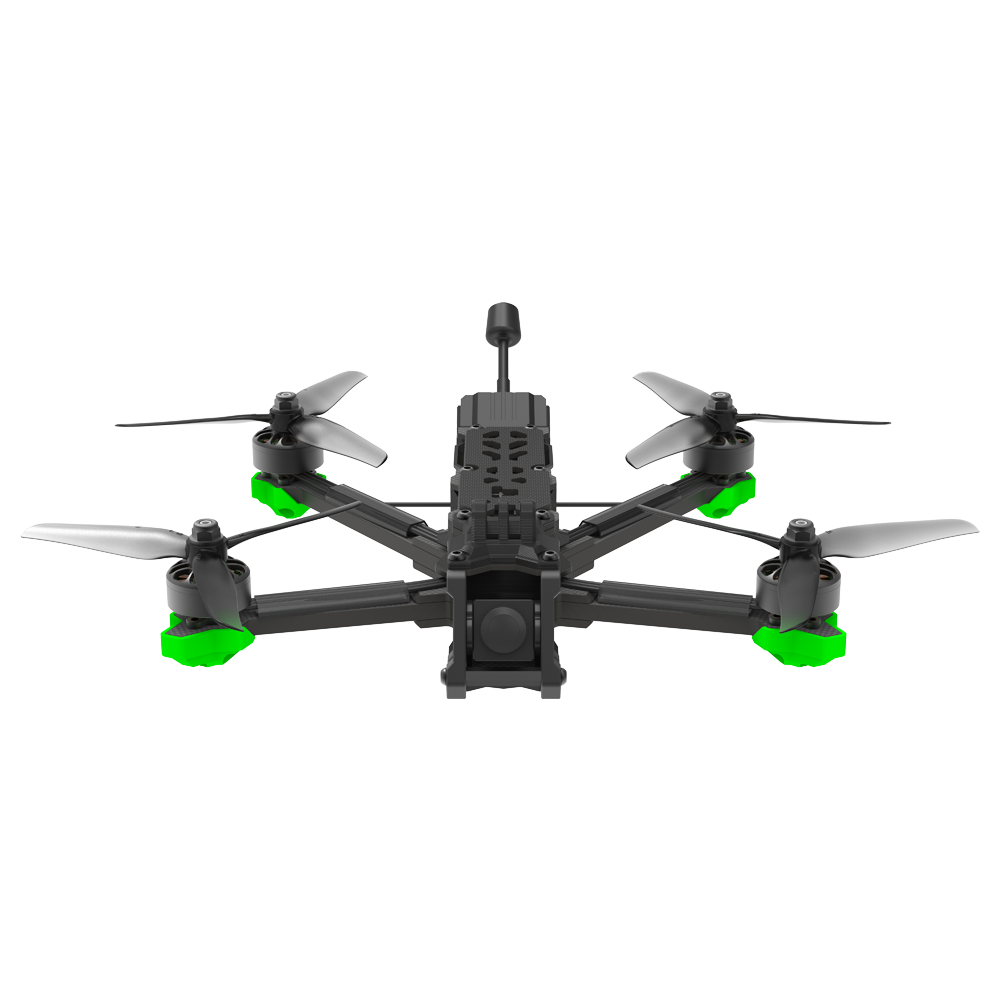

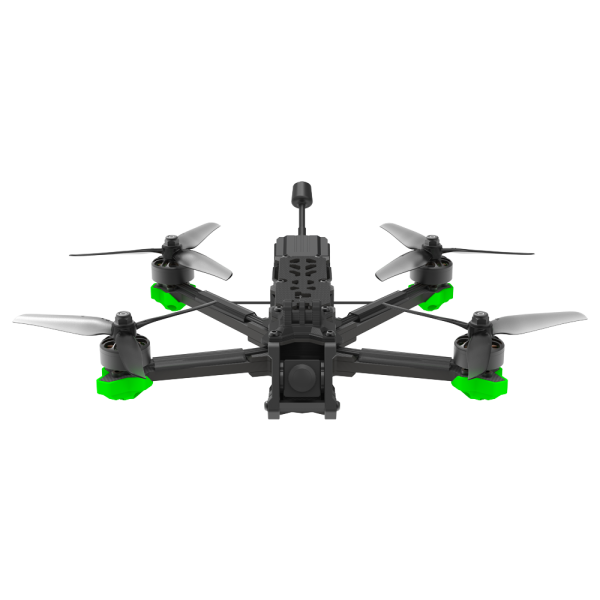

iFlight Nazgul5 Evoque F5 F5D V2 DeadCat GPS Version HD / Analog 4S / 6S 5 Inch FPV Racing Drone

$468.99

CHECK PRICE

Description

Notice: It is upgrade into new V2 Version. ( May 12th, 2023. Beijing Time)
USA Warehouse: Still Old V1 Version
CN Warehouse: V1 / V2 stock mix. Will send Randomly.
Diffirence:
– V2 Comes with New F5X V2 frame ( Like pohotos showed)
– V2 Comes with BLITZ Whoop 1.6W VTX ( Analog Version) ; V2 Comes with Runcam Link WASP ( HD Version)
   V1 is 5.8GHz SucceX Mini Micro 600mW VTX ( Analog Version)
Specifications:
Brand: iFlight
Model: Evoque F5 V2( F5D, DeadCat Type)
Version: Analog / HD  ( Optional)
Voltage: 4S / 6S ( Optional)
Evoque F5 F5D V2 Analog Weight: 445grams
Takeoff Weight: Approx. 610 g
Dimensions (L×W×H): 190×136×36 mm
Diagonal Distance: 225 mm
Max Speed: 130 Km/h (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Max Hover Time: Approx. 8 mins
Maximum Flight Distance: 5 km
Max Wind Speed Resistance: 100 Km/H (Level 5)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antennas

FC // BLITZ Mini F7 Flight Controller （HD & Analog）

( Link)

MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip:  AT7456
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs:   4x (SH1.0 connector)
I2C serial:   SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller:   Yes
Beeper pad:   Yes
Firmware target:   IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5×27 mm
Weight: 5g

ESC // BLITZ Mini E55 4IN1 ESC (HD & Analog)

( Link)

 – DIMENSION: 35*42MM
– MOUNTING HOLES: 20*20MM/Φ4MM
– WEIGHT: 11.3G
– SUPPORTS 2-6S LIPO INPUT
– MCU： G071
– CONSTANT: 55 AMPS
– BURST: 60 AMPS
– CURRENT SENSOR: YES
– BEC: NO
– CURRENT RATE: 100
– SUPPORTS: DSHOT DSHOT150/300/600/MULTISHOT/ ONESHOT ETC.
– FIRMWARE: BLHELI 32

– TARGET:   IFLIGHT_BLITZ_G1

XING-E Pro 2207 Motor

( Link)

4S Version: 2207 2750KV

6S Version: 2207 1800KV
VTX & Camera (HD) CADDX Nebula Pro Vista HD Digital System
VTX & Camera ( Analog)

VTX:

Product Name: BLITZ Whoop 1.6W VTX
Input voltage: 7V～34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5×30.5mm/Φ3
Lightweight: 18.9g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

Camera:

RaceCam R1 Mini 1200TVL 2.1mm lens 19*19 FPV Camera

M8Q-5883 GPS

GPS module: GPSSAM-M8Q

Frequencies: 72 channel

Compass module: QMC5883L

Baud Rate: 4800bps-115200bps (Default – 9600bps)

Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm

Cold start: <29s

Hot start:  <2s

Accuracy:  Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns

Maximum height: 50.000m

Maximum speed: 500 m/s

Speed accuracy: 0.05 m/s

Maximum acceleration: ≦ 4G

Refresh Rate: 10 Hz

GPS patch antenna size: 15 x 15 mm

Total dimensions: 20 x 20 x 10.5 mm

Weight: 8g

Input Voltage:  3.3V-5V，current 25mA

GPS pin definition: RX/TX UART

Compass pin definition: SDA/SLA

Package included：

1 x Nazgul5 Evoque F5 V2 F5D HD/Analog FPV Drone (Deadcat)

1x GPS

4 x Nazgul F5 Prop

2 sets of Battery Pads

4 x Battery straps

1 x Screws bag
