Description
Notice: It is upgrade into new V2 Version. ( April 6th, 2023. Beijing Time)
Diffirence:

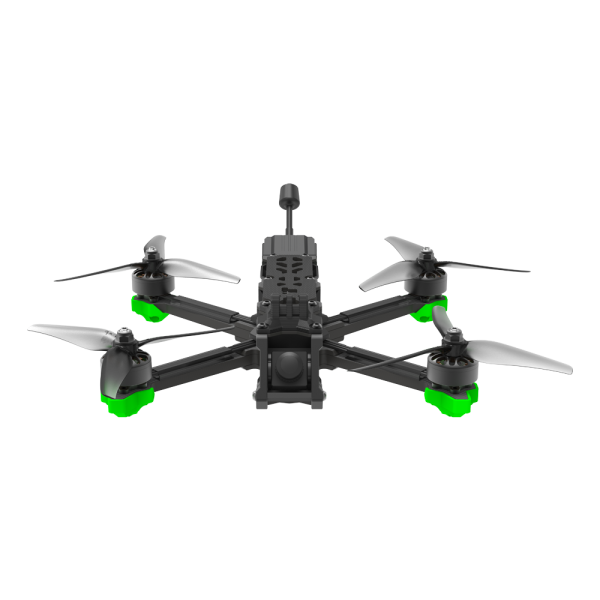

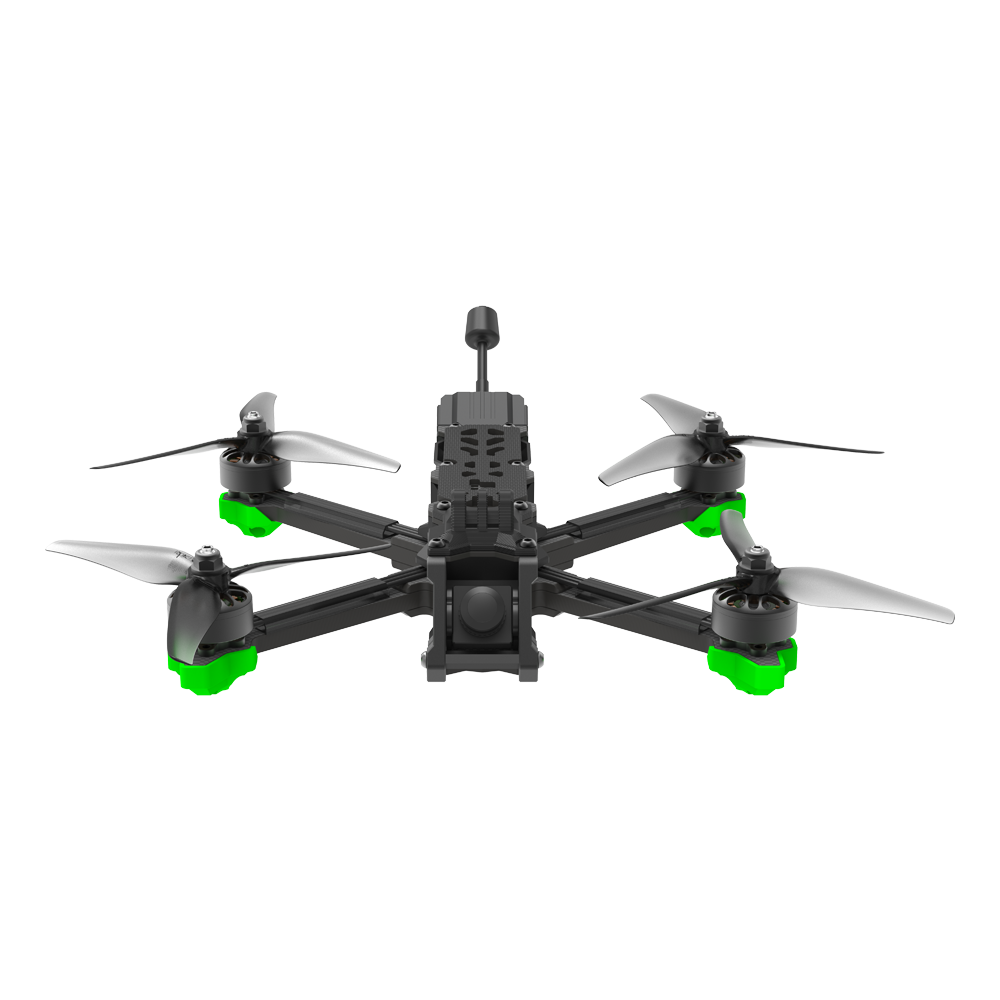

– New F5X V2 frame ( Like pohotos showed)
– BLITZ Whoop 1.6W VTX
Features:
Latest Nazgul Frame for Maximum Protection
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortvuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
Secured Battery Plug with Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
Specifications:
Product Name: Evoque F5 V2
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission: BLITZ Whoop 1.6W VTX
Frame wheelbase: 225mm (Squashed X)
Motor: XING E Pro 2207
Prop: Nazgul 5 inch propellers
Weight: 445grams
Takeoff Weight: Approx. 610 g
Dimensions (L×W×H): 190×136×36 mm
Diagonal Distance: 225 mm
Max Speed: 130 Km/h (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Max Hover Time: Approx. 8 mins
Maximum Flight Distance: 5 km
Max Wind Speed Resistance: 100 Km/H (Level 5)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antennas
NO GPS
| BLITZ MINI F7 Flight Controller | – MCU: STM32 F722 – Gyro: BMI270 – Baro: DPS310 – OSD: IFLIGHT OSD （AT7456E） – BEC: 5V 2.5A – BlackBox: 16MB – Uart: 5*UART(UART1、UART2、UART3、UART4、UART:6) – UART1 for VTX HD/Analog – UART2 for Receiver – UART3、UART4 for GPS or other sensors that require a serial port – UART6 for ESC Telemetry – 1×I2C – 1xSH1.0 9pin connector for HD VTX/Analog VTX&CAM （5V/BAT/G/VO/T1/R1 /5V/G/VI） – 1xSH1.0 8pin connector for ESC（R6/CUR/M4/M3/M2/M1/BAT/G) – 1xSH1.0 6pin connector for Any Receiver or DJI（3V3/R2/5V /G/R2/T2） – 1xSH1.0 4Pin connector GPS (T4/R4/G/5V) – 1xSH1.0 4Pin connector LED & Beeper (BUZ/LED/G/5V) – 4×0402 LEDs for FC STATUS (3.3V Red) / (Start Blue) / (5V Green)/（BAT Orange） – Smartaudio & IRCTramp VTX protocol supported – WS2812ledStrip: Yes – Bepper: Yes – Firmware: IFRC-IFLIGHT_BLITZ_F722 – Outer Size: 30.5*27mm / 20*20mm φ4 mounting – Weight: 5.0g |
| BLITZ Mini E55 4IN1 ESC | Input: 2-6s LiPo Constant: 55 Amps (per channel) MCU: BB21 Burst: 60 Amps (per channel) BEC: No BlHeli32 telemetry: Yes Dimensions: 42*35mm Mounting Holes: 20*20mm φ3mm with Grommets φ2mm Weight: 11.3g Target: QH-50 16.7 |
| BLITZ Whoop 1.6W VTX | Input voltage: 7V～34V Interface: MMCX Power levels: PIT/25mW/400mW/800mW/1600mW Channels: 40 (including Raceband) Mounting pattern: 30.5×30.5mm/Φ3 Lightweight: 18.9g (excluding antenna) VTX telemetry: IRC Tramp Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight! RC Tramp VTX table values: 25mW/400mW/800mW/1600mW |
Package Included:
– 1 x Nazgul Evoque F5 V2 Analog (Squashed X)
– 4 x Nazgul 5 inch Props
– 2 sets of Battery pads
– 2 x Battery straps
– 1 Screw bag
