Description
Notice:
The drone has been upgraded with the side plate. ( Pls look at the photos showed)
At present, old & new stock are mix in warehouse. Will send randomly.
Step. 21, 2024. BeiJing Time
Hight Lights:
Lightweight and Durabl
A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.
Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
DJI O3 HD Air Unit Low-Latency digital transmission
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)
The HD version allows for the installation of ND filters, providing more control over camera exposure settings.
4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
Enhance user experience and streamline maintenance
Equipped with a built-in buzzer and receiver mount, this feature makes it convenient maintenance and adjustments to the receiver.
DIY customized space
Create your own personalized space with the flexibility of standard 20×20 and 30.5×30.5 mounting holes, ensuring compatibility with popular flight stacks and VTX systems available in the market. Tailor your setup to your liking and enjoy a seamless integration process with these versatile mounting options.
Specification:

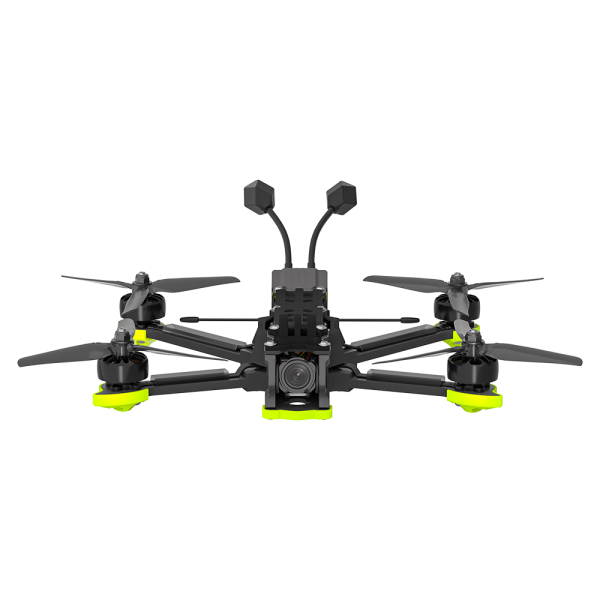

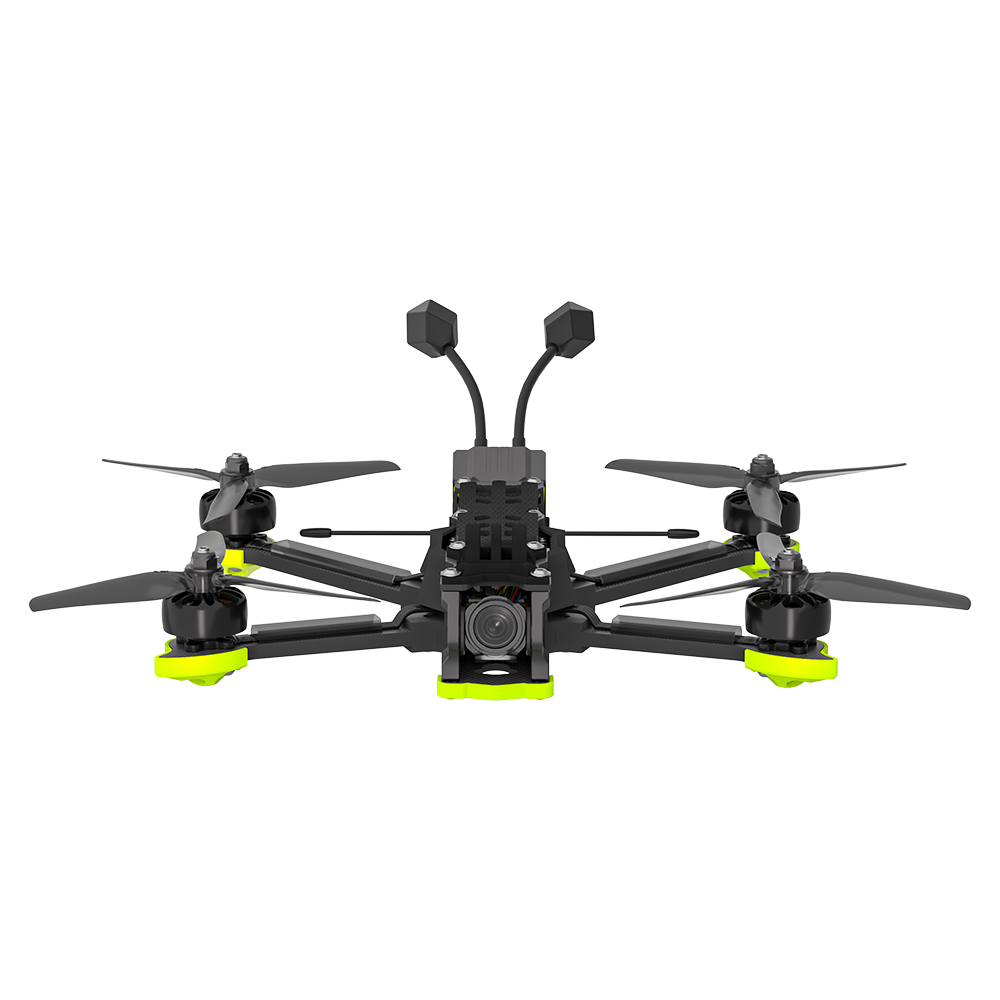

Product Name: Nazgul DC5 ECO DJI O3
Geometry: DC (DeadCat)
FC: BLITZ ATF435 Flight Controller
ESC: BLITZ E55S 55A 4-IN-1 ESC
Video Transmission: DJI O3 Air Unit
Frame: 240mm wheelbase
Motor: XING-E Pro 2207 1800KV motors
Prop: Nazgul F5 propellers
Weight: 450g±5gTakeoff Weight: Approx. 675g±5g (With 6S 1400mAh battery)
Dimensions (L×W×H): 193×144×34 mm
Max Speed: 190 Km/h (Manual Mode)
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh)
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)
| VTX & Camera |
Product Name: DJI O3 Air Unit Compatible With DJI FPV Goggles V2: Compatible With DJI Goggles 2: |
Package Included:
1 x Nazgul DC5 ECO 6S FPV Drone ( DJI O3)
2 x Antennas
2 x Battery pads
2 x Prop(Pairs)
