Description

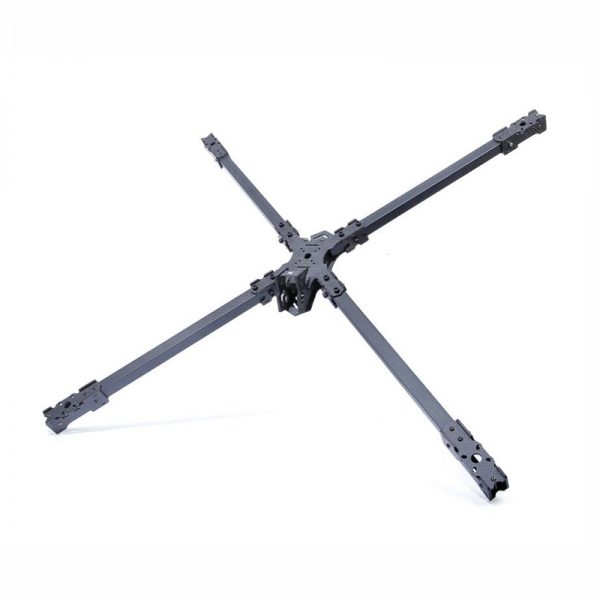

iFlight iXC13 850mm X-CLASS 13 Inch Carbon Fiber Frame Kit with Go pro Mount for RC Drone
Specification:
Brand name: iFlight
Item name: iXC13 850mm X-CLASS Frame Kit
Diagonal wheelbase: 850mm
Floor thickness: 3mm
Roof thickness: 3mm
Splint thickness: 3mm
Carbon tube arm size: 20mm*20mm*425mm
Carbon tube arm diameter: outer diameter 20mm, inner diameter 18mm
Camera side panel thickness: 3mm
Camera side panel spacing: 28mm
Top and bottom plate spacing: 20mm
Forearm angle: 45°
Rear arm angle: 45°
Rack net weight: about 504g
Recommend Parts:
Flight control hole distance: 30.5mm, 20mm MAMBA F405 40A Stack
Motor mounting hole position: 19*19mm-25*25mm
Recommended motor: 4114/4214
Recommended propeller: 13 inches
Packaeg Included:

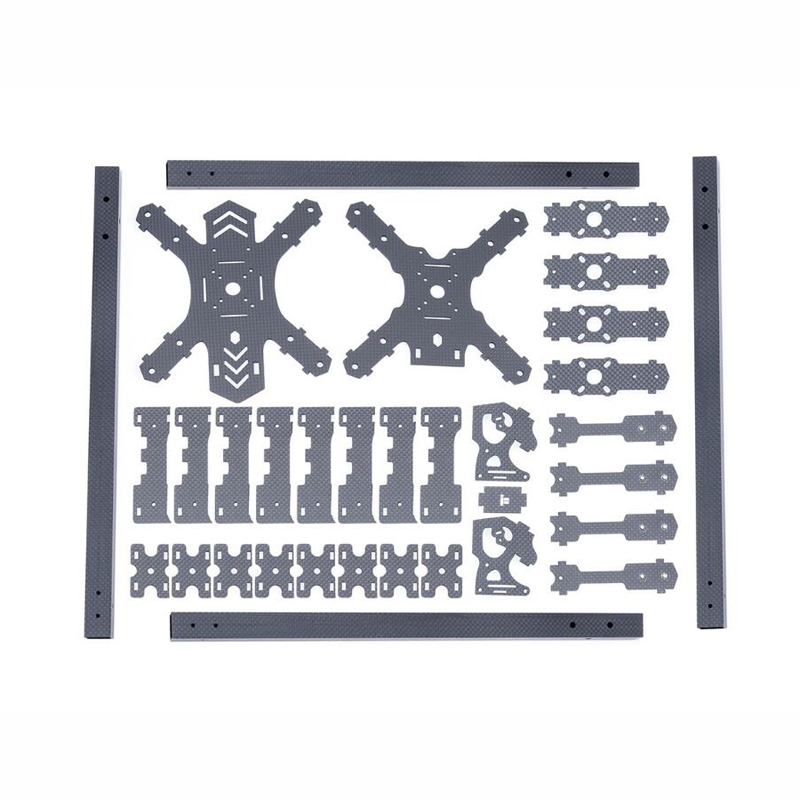

1 x iXC13 850mm X-CLASS Frame Kit
