Description

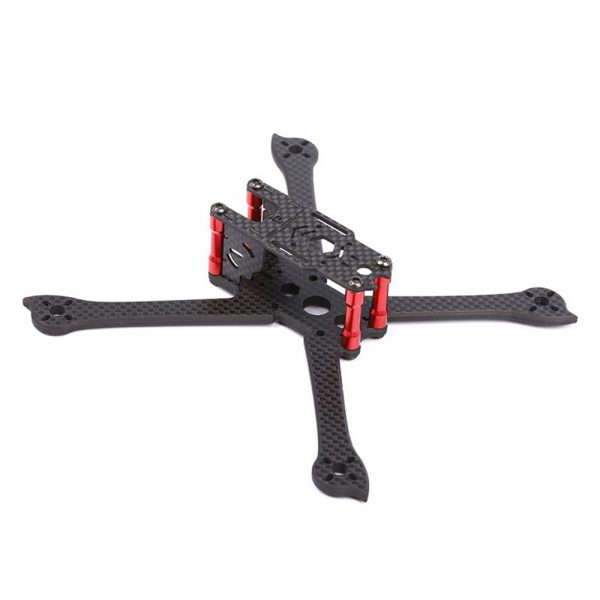

IFlight iX4 Lite V3 164mm Wheelbase 4mm Arm 4 Inch Carbon Fiber Frame Kit for RC Drone FPV Racing
Specification:
Brand Name: IFlight
Model: iX4 Lite V3
Item name: 164mm Frame Kit
Wheelbase: 164mm
Material: Carbon fiber
Arm thickness: 4mm
Thickness of top plate: 2mm
Thickness of bottom plate: 4mm
Vertical side plates: 1mm
Thickness of bottom plate: 4mm
Vertical side plates: 1mm
Net weight: about 39.8g
Arm Width(Narrowest):9.6mm
Motor Mount Pattern: 9*9mm-13*13mm
Max Stack Height :25mm
FC Mounting Holes:20*20mm
Motor c-clip hole: φ8mm
Arm Width(Narrowest):9.6mm
Motor Mount Pattern: 9*9mm-13*13mm
Max Stack Height :25mm
FC Mounting Holes:20*20mm
Motor c-clip hole: φ8mm
Features:
– Squish X Hybrid design
– MINI design,164mm wheelbase, super light, only 39.8g
– 3K High Strength Carbon Fiber Plate, durable from Crashing
– Super lightweight design, decrease the weight but ensure the iX4 Lite V3 strong enough
– Motor mount strengthen to protecting motors from crashing
– Camera mounting plate with fashion design to ensure that the fast forward when you can see the front
– Squish X Hybrid design
– MINI design,164mm wheelbase, super light, only 39.8g
– 3K High Strength Carbon Fiber Plate, durable from Crashing
– Super lightweight design, decrease the weight but ensure the iX4 Lite V3 strong enough
– Motor mount strengthen to protecting motors from crashing
– Camera mounting plate with fashion design to ensure that the fast forward when you can see the front
Recommend parts (package not included):
ESC: 20x20mm 20A-30A 4in1 ESC
Propeller: 4052 4 Inch Prop
Battery: 4S 850mAh Battery
Flight Controller: 20x20mm F3 / F4 FC
Motor: 11XX ; 14XX Motor
Camera: Support 19mm wide micro camera
Camera: Support 19mm wide micro camera
Package included:
1 X 164mm Frame Kit
