PRODUCT DESCRIPTION

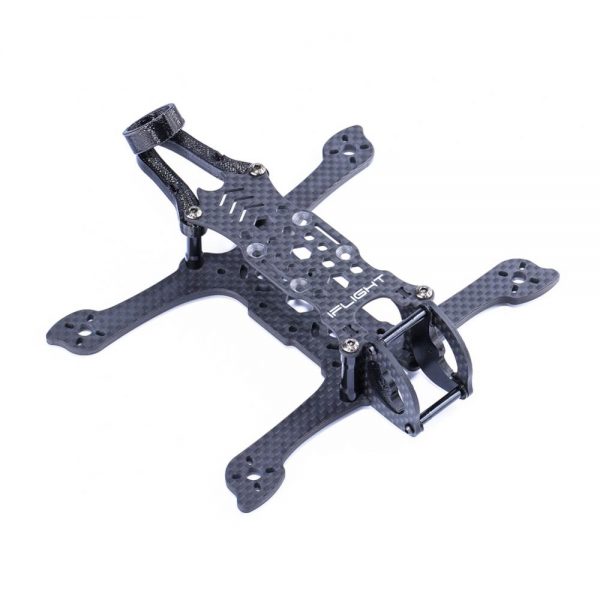

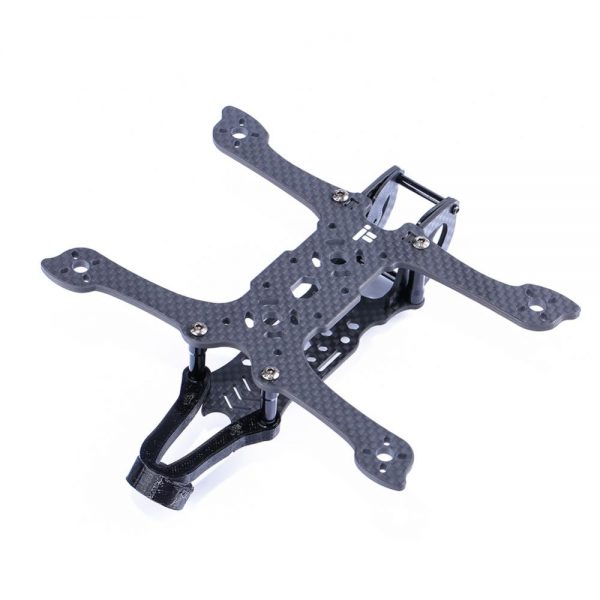

iFlight iH3 V3 frame is the latest FPV aerial filming frame. It redefines aerial filming by combining FPV racing and aerial filming.
It features front & back twin-towers structure, which completely solve the problem of 'High Tower'.
2mm thickness vertical side plates can protect the camera from damage even it's camera front protraction design.
It ensures there won't be propellers in view when using the Mini HD recording camera.
There's a large space on the top plate for you to choose different types of battery.
Runcam Split mini can be mounted on this frame which makes FPV and recording camera 2 in 1. No extra Gopro, SQ11 or Hawkeye Firefly micro action cam needed which can reduce the drone weight effectively.
Features:
* Front & back twin-towers structure
* Vertical side plates camera protection
* No propellers in view when HD recording
* Large room on the top plate for different battery choices
* 9mm&12mm motor pattern, compatible with 11XX-16XX motors
Parameters:
– Wheelbase: 142.5mm
– Wheelbase: 142.5mm
– Frame weight: 42.5g
– Bottom plate thickness: 3mm
– Top plate thickness: 2mm
– Vertical side plates thickness: 2mm
– Vertical side plates width: 19mm
– Standoffs mounting distance: 22mm
– Flight control mounting holes size: 20*20mm
– Supported Motor:11XX/13XX/14XX/16XX
– Supported propeller: Max 3 inch
Package Included:
– 1 x iFlight iH3 V3 3 inch FPV Frame
– 1 x TPU Antenna Mount
– 1 set x TPU Camera Mount
