Description
Description:

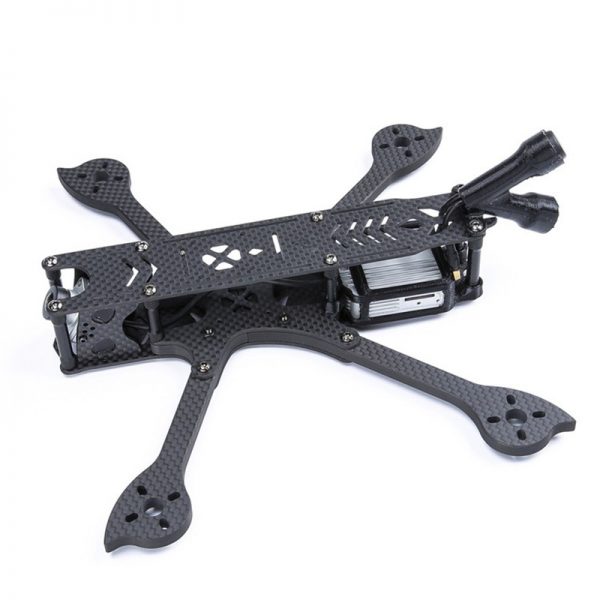

The iFlight DC5 was designed for the DJI Digital FPV System. It is also suited for a 5-inch propeller power system and flight controllers. The DC5 HD Frame design makes installation and maintenance easy.With the 5-inch propeller power system, users are ensured a super great flying experience. Soft TPU material helps to protect the camera and antenna in the event of a crash.
Features:
Full 3K Carbon Fiber airframe
Easy arm swaps
222mm wheelbase,129g
Popular Deadcat style configuration,No prop in View
Fits both 30.5x and 20x stacks
Specifications:
Type: 5" FPV Freestyle frame
Frame wheelbase: 222mm
Frame weight:129g approx
Standoff: M3*25mm(4pcs), M3*32mm(4pcs)
5mm thickness, 11.3mm width arms,1.5mm vertical side plates
2mm top, the upper & bottom plate
Mounting Holes: 30.5*30.5mm/20*20mm
Support camera size: 19*19mm 22*22mm
Recommended motors: 22xx, 23xx

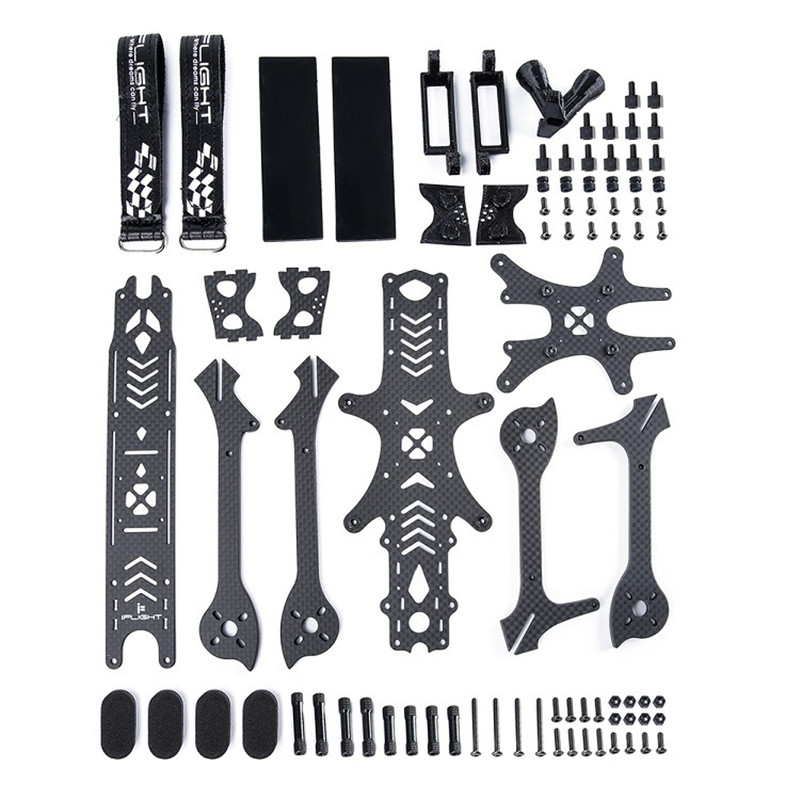

Package included:
1 x DC5 HD Frame
1 x Screw Bag
1 x TPU Camera mount adapters
1 x TPU DJI Air Unit Bracket Mount
1 x TPU DJI Air Unit Antenna Mount
1 x Battery Anti-slip Mat
2 x Battery Straps
