Description
iFlight DC10 10 Inch 8mm Arm Thickness 3K Carbon Fiber Macro FPV Frame Kit for RC Drone
Specification:
Brand Name: iFlight
Model: DC10
Item Name: 10 Inch 3K Carbon Fiber Macro FPV Frame Kit
Wheelbase: 472mm
Material: 3K Carbon Fiber
Front Arm Distance: 417mm
Back Arm Distance: 369mm
Front Back Arm Distance: 261mm
Inner Standoff Height: 30mm
Arm Thickness: 8mm
Side Plate Thickness: 2mm
Other Plate Thickness: 3mm
Motor Installing Distance: 16-19mm

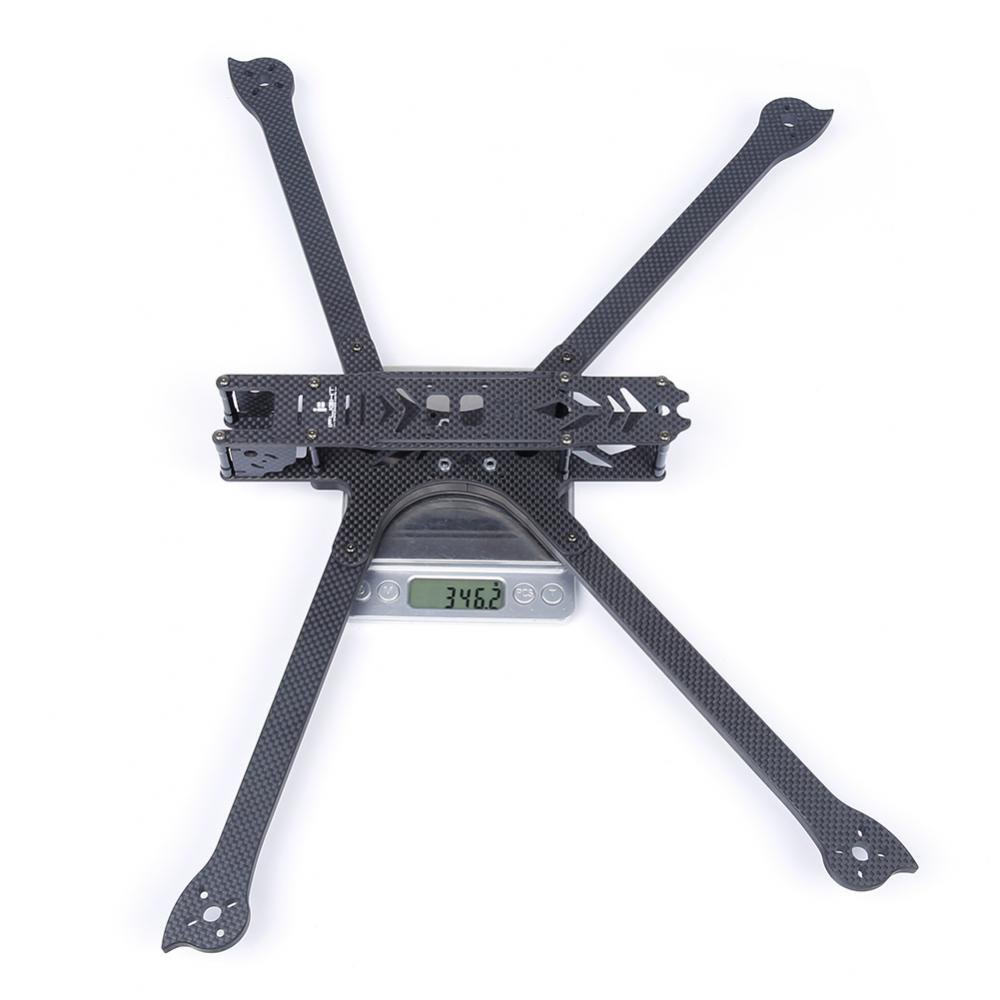

Net Weight: 346.2mm
Recommend Parts:
Flight Controller: 30.5×30.5mm F3 / F4/ F7 Flight Controller
Motor: iFlight XING X2814 2814 Motor etc.
FPV Camera: 28mm Width Camera
Lipo Battery: 4S 1550mAh-2200mAh
The following parts are compatible: ( Not Included)
FC & ESC Stack: DYS 30.5×30.5mm Stack F4 Pro FC & F30A 4in1 BL_S ESC
Motor : Racerstar AirA 2508 1200KV 4-6S Brushless Motor
iFlight Xing X2814 1100KV 4S brushless Motor
Propeller: Gemfan 1045 10 Inch 2-Blade Propeller CW & CCW
Package Included:
