Description

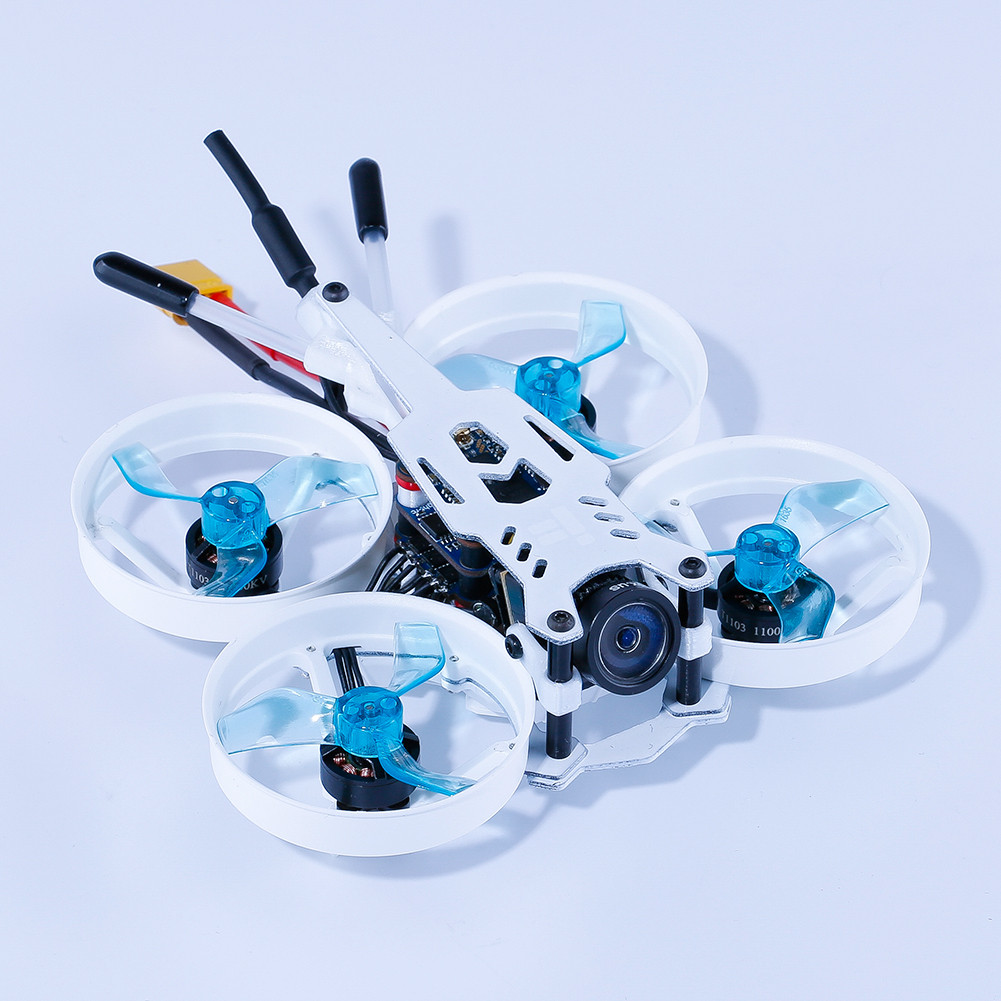

iFlight CineBee 75HD White Plate 2-3S Whoop RC FPV Racing Drone SucceX mirco F4 12A 200mW Turtle V2 HD
Notes: this RC drone comes with 2-3S, but if you want to use 4S, you have to change the compatible motor.
This version is the white special version, all frame plates are white.
Description:
iFlight CineBee 75HD is the latest BNF creation of minimum weight at a spectacular performance, traditional but versatile and upgradeable design, carrying a 1080p (up to 60fps) micro cam stack and recording JELLOFREE footage flying through smallest gaps and spots. If slow cruising or fast racing, the cam angle goes from 0-55 degrees with motors from 2S-4S.
Our target was pretty clear, create a lightweight, durable but jellofree whoop that can shoot high-quality HD videos. We decided to use a combination of carbon, plastic, and TPU to have a rigid bottom plate that doesn't oscillate, with still crash resistant abilities and integrated prop guards giving the whole frame strength. The stack is soft-mounted, the cam is soft-mounted, the motors run smooth – keep your props in a good condition, and you won't have to worry about jello!
Specification:
Item name: iFlight CineBee 75HD 2S whoop white version
Total Dimensions: 110x93x30mm
Frame Wheelbase: 75mm
Bottom & Top Plate Thickness: 1mm
Standoff height: 22mm
Build Weight: 64.4g (without battery, receiver)
Connector: XT30
Support Battery: 2S
Flying Time: over 3mins (battery recommend: 2S 420 mAh)
SucceX Micro 16×16 F4 2-4S Flight Control
SucceX Micro 12A 4in1 2-4S BlheliS ESC
SucceX Micro 200mW switchable VTX
iFlight 1103 2-3S motors (1.5mm shaft)
Caddx.us Turtle v2 HD FPV Cam
Receiver: Without Receiver/ FS-A8S V2/ Frsky XM+/ Frsky R-XSR/ DSM2 DSMX Receiver (option)
Gemfan 1635 40mm 3-blade 1.5mm props
iFlight Prop Guards 40mm
Click For English Manual.
Features:
– ultra-light but high performance
– JELLOFREE durable carbon/plastic construction
– no props or prop guards in view
– upgradeable, versatile, futureproof
SD card insert and ejection:
-The HD cam PCB is conveniently placed under the frame, protected by a cover.
-To insert or eject the SD card, please push in the SD card and gently slide beside the security plastic guard.
Cam- and VTX control implementation:
-Both Cam and VTX can be conveniently setup on your radio and in your OSD.
Package included:
1x iFlight CineBee 75HD Frame Kit white version
1x SucceX Micro 16×16 F4 Flight Control
1x SucceX Micro 12A 4in1 BlheliS ESC
1x SucceX Micro 200mW switchable VTX
4x iFlight 1103 2-3S motors
1x Caddx.us Turtle v2 HD FPV Cam
1x Without Receiver/ FS-A8S V2/ Frsky XM+/ Frsky R-XSR/ DSM2 DSMX Receiver (option)
4x Gemfan 1635 40mm 3-blade 1.5mm Props
4x iFlight Prop Guards 40mm white
2x iFlight 10*100mm magic battery straps black
1x set of accessories
