Description

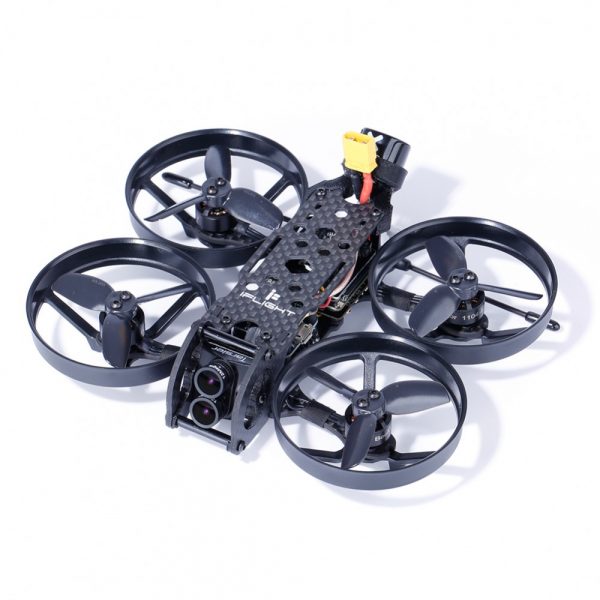

iFlight Cinebee 4K 107mm F4 OSD 4S Whoop FPV Racing Drone PNP BNF w/ Caddx.us Tarsier Dual Lens Camera
Specification:
Brand Name: iFlight
Model: Cinebee 4K 4S Version
Item Name: 107mm Wheelbase F4 OSD 4S Whoop FPV Racing Drone
Frame Wheelbase: 107mm
Frame Wheelbase: 107mm
– Build Weight: 106 grams
– SucceX Micro F4 16×16 Tower 2-4S
– iFlight 1104 5000V motors (1.5mm shaft)
– Caddx.us Tarsier 4K 1200TVL Dual Lens
– HQProp T2025 3-blade Propeller
– iFlight Prop Guards 2 inch
| iFlight SucceX Tower – F4 Flight Controller AIO OSD BEC |
-STM32F411
-Input voltage 2-4S LIPO
-Gyroscope: MPU6000
-2x UART ports
-4x motor outputs
-OSD inbuilt
-No Blackbox FLASH
-BEC 5V 2A cont.
-Size: 21mm*21mm
-Mounting holes: 16*16
-Weight: 2.5g
-BF target : MATEKF411
|
| iFlight SucceX Tower – Micro 12A BLheli_S 4in1 ESC |
Input voltage : 2-4S LIPO
Continuous current: 12A
MCU: BB21F16G
BEC : None
ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
Size: 23mm*21mm
Mounting hole 16*16mm
Weight: 2.7g
|
| iFlight SucceX Tower – Mirco VTX PIT/25/100/200mW |
-Power : PIT/25/100/200mW
-Antenna interface : IPEX (UFL)
-Telemetry: IRC Tramp
-Size: 17mm*27mm
-Mounting holes: 16*16mm
-Weight: 1.6g
-VTX can be conveniently set up in your OSD |
| iFlight 1104 5000kV Motor (1.5mm shaft) |
Configuration: 9N12P
Stator Diameter: 11mm
Stator Length: 4mm
Shaft Diameter: 1.5mm
Idle Current(10V): 1.25A
Max. Con. Power (180S): 59.2W
Internal Resistance: 152mΩ
Max. Current(180s): 8A
Motor Dimension(Dia*Len):14.3×11.8mm
Weight: 5.4g
-We offer several motor setups to fit your desired performance, equipment or just preference.
– 4S available
|
| Caddx Tarsier 4K 1200TVL Dual Lens Camera |
Lens: Dual Lens F2.8/12Mega Audio: Dual Digatil Mic FOV: 4K F2.8, FOV150 Degree (16:9); FPV FOV165 Degree (4/3) Weight: 18g More Details, click here |
| HQProp T2025 3-blade Propeller | Brand Name:HQProp Item Name: 2025 2×2.5 3-Blade Propeller Quantity: 4 CW + 4 CCW Color: Black |
| Receiver | PNP ( Without Receiver) BNF ( with Optional Receiver) |
| Lipo Battery ( NOT Included) |
All version doesn't include battery. Recommend using4S 450mAh Lipo |
Features:
– 4K 30fps, 2.7k 60fps, EIS (image stabilization)
– 1200TVL <10ms low latency FPV cam
– Ultra-light but high performance
– JELLOFREE durable carbon/plastic construction
– No props or prop guards in view
– Upgradeable, versatile, futureproof
Pacakge Included:
1x iFlight Cinebee 4K FPV Racing Drone
Pacakge Included:
1x iFlight Cinebee 4K FPV Racing Drone
